GigaWatt PC-3 EVO+ Power Line Conditioner
GIGAWATT PC-3 EVO+ is a technologically advanced, new generation power conditioner, designed to power and protect audio-video systems of Hi-End class. This conditioner not only effectively protects against interference and overvoltage existing in the home power grid, but also guarantees a significant improvement of the quality of sound and displayed picture of the devices connected to it.
The main differences to the PC-2 EVO+:
- Two-sided PCBs, with thicker traces of silver plated copper
- Sendust core filters
- Silver plated internal wiring with bigger cross-section
- Voltage display
CONSTRUCTION
All internal elements of the conditioner were enclosed in a rigid, steel-aluminum chassis, supported on anti-vibration feet made from solid, anodized aluminum, with a layer of proprietary elastomer 3.5mm thick.
The front panel of the conditioner is made from a thick slab of aviation grade aluminum. Its surface is brushed, after precision milling, and then anodized black or silver.
The PC-3 EVO+ has six, high quality proprietary GigaWatt power sockets, with large surface contacts. The brass contacts of the sockets were subdued to the process of technical silver plating without usage of intermediate metals, like copper or nickel, which could introduce an unfavorable serial resistance and a voltage loss. The increased surface of the contacts and the thick layer of silver guarantee good contact with the plug pins. The sockets were additionally cryogenically modified and de-magnetized.

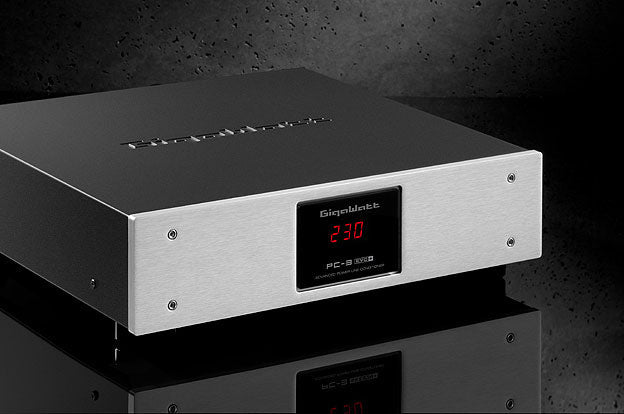

In the central part of the front, there is an LED display indicating the voltage of the input current. The precise voltmeter is very resistant to distortion and measurement errors caused by upper harmonics, at the same time not generating any interference, which would impair the quality of the power filtered by the conditioner.
The voltmeter display is red as standard, but is available in green, blue or white on demand.
The conditioner is also equipped with an additional circuit signaling wrong connection to the power grid. Its action is indicated by a red LED on the back of the unit, which signals wrong polarity of the device or faulty grounding.
