BRAMA Preamplifier

The heart and soul of your system.

Brama Preamplifier’s linestage is Vinnie Rossi’s realization of the audiophile dream – having it both ways, each at the highest possible level of performance:

Whether you are seeking the tonally rich and holographic presentation of 300B directly-heated triodes, or the absolute purity of solid-state, the Brama Preamplifier is the only one in the world that lets you enjoy both sonic presentations with the press of a button.

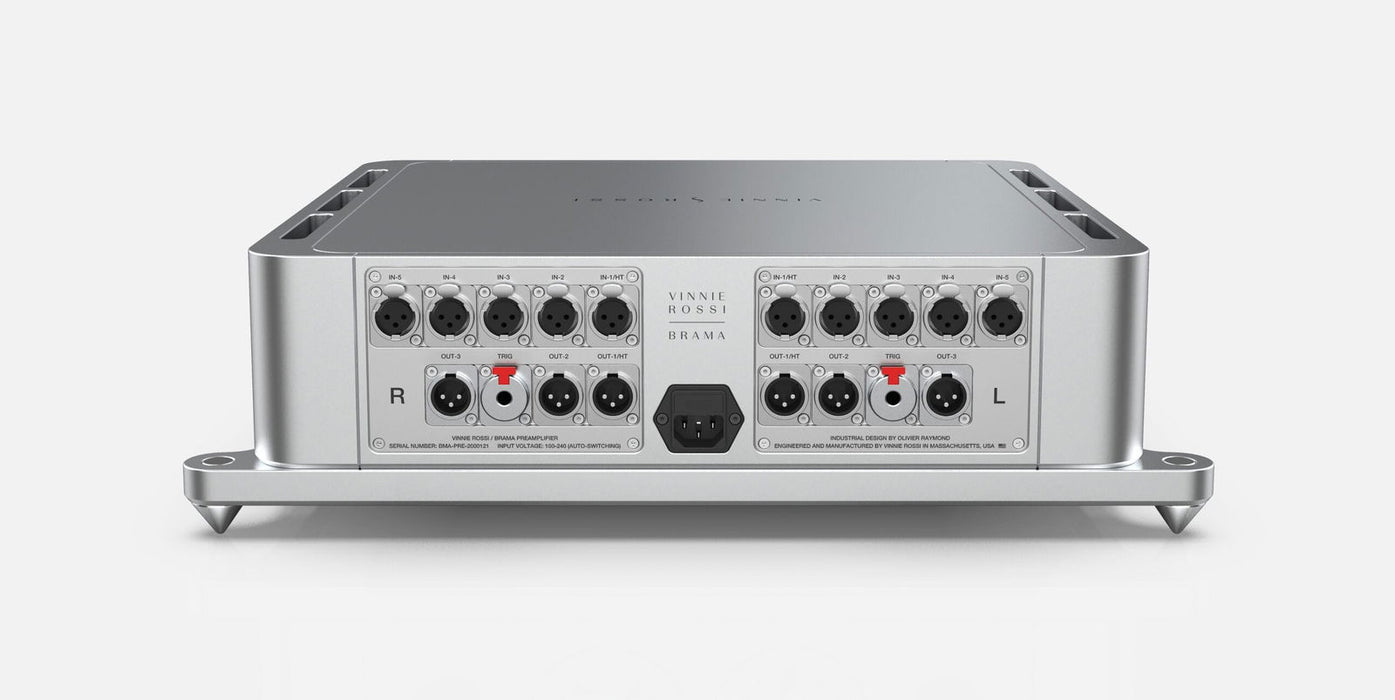

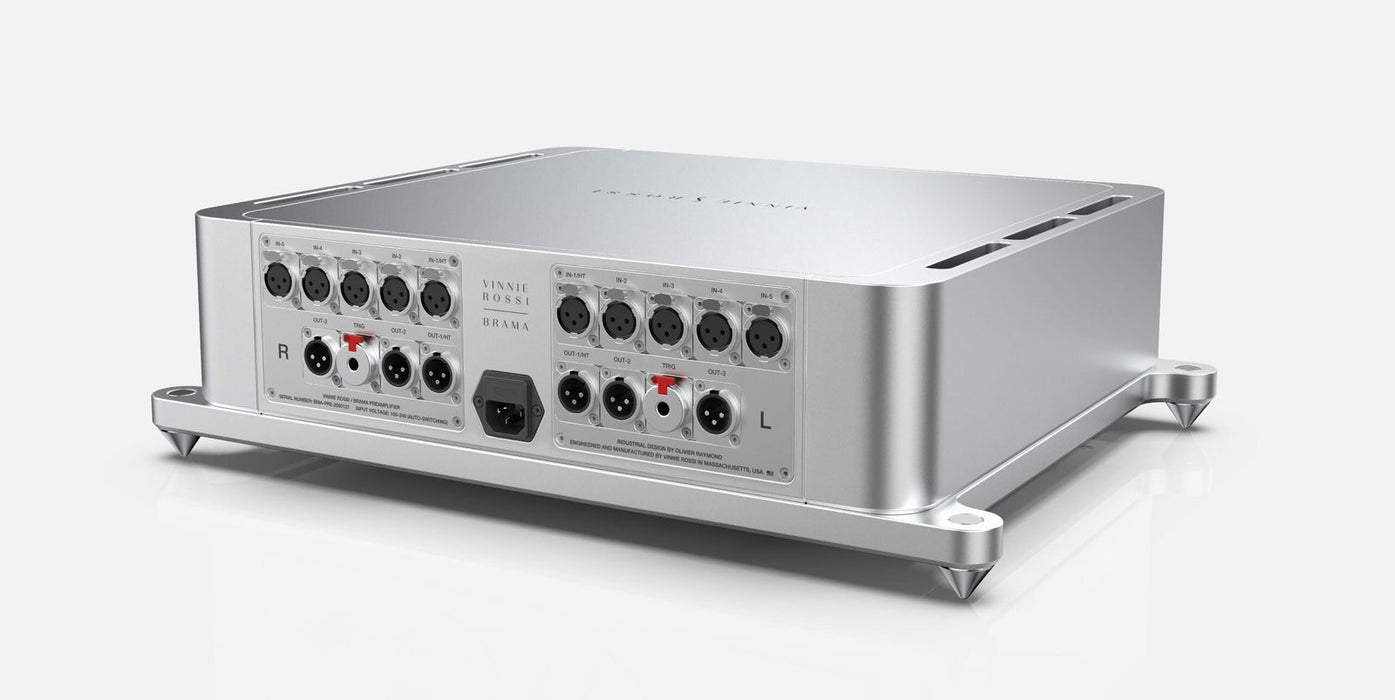

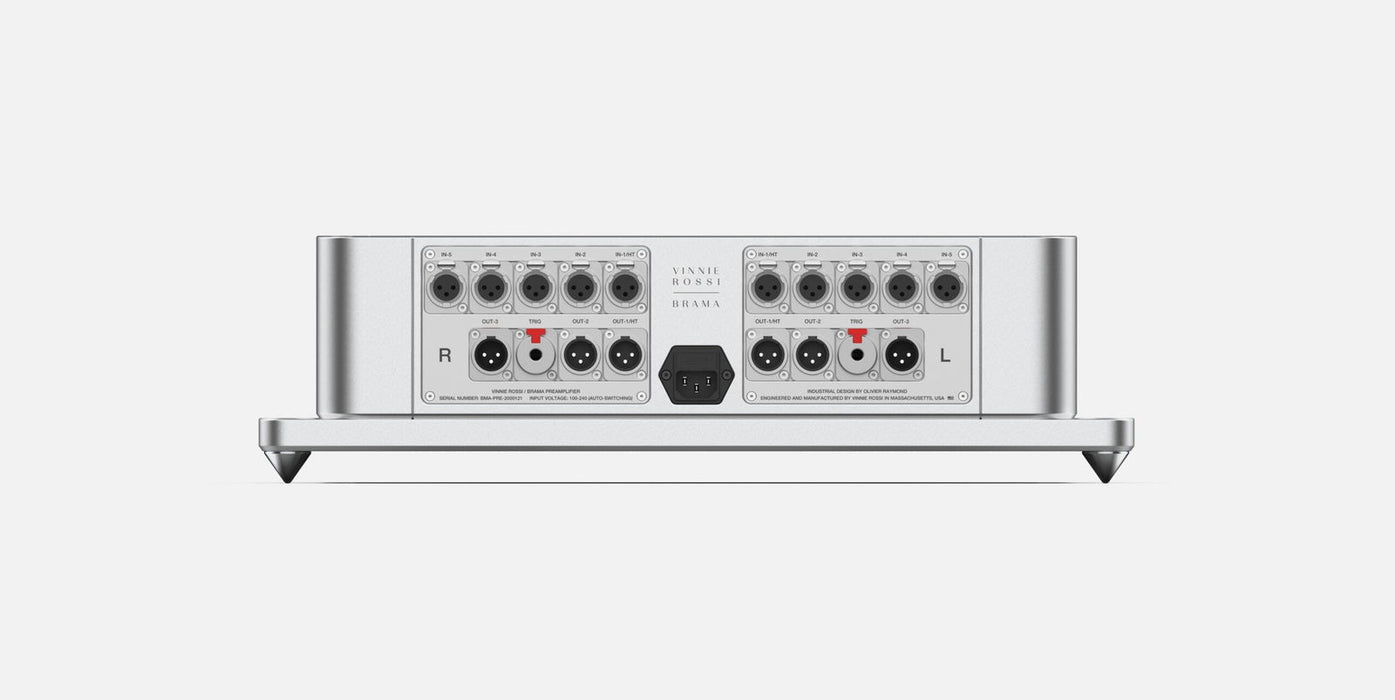

Fully balanced, dual mono input-to-output architecture is positioned directly behind the rear panel for the shortest possible signal paths. Super-regulated power supplies for both the power rails and 300B heating supply achieve ultra-low noise and optimal transient response.

Pure analog emotion.

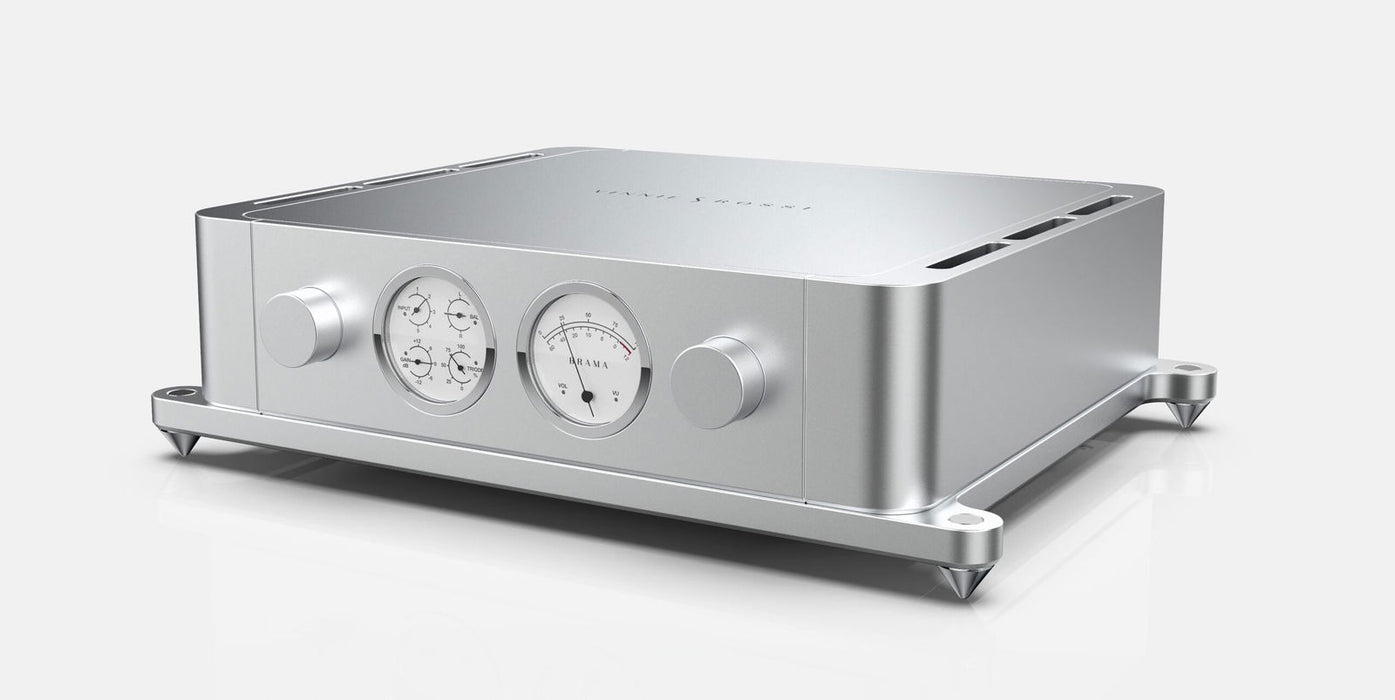

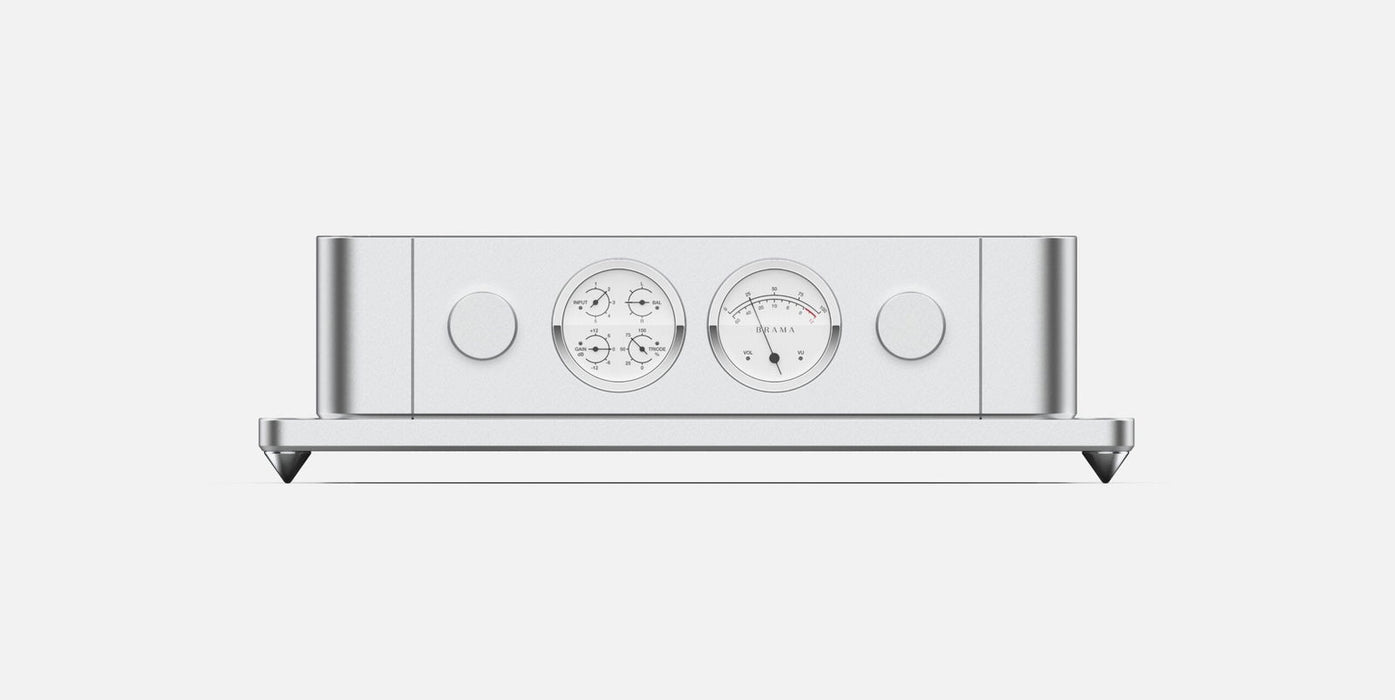

The front panel of the Brama Preamplifier reveals a clean layout, luxurious feel, and timeless design that intentionally excludes digital displays and push buttons.

Each bespoke, analog gauge features precision air core movements, responsive driver circuitry, and machined aluminum hands. Sapphire glass and highly-polished stainless bezels seamlessly integrate the gauges to the front panel.

Solid aluminum knobs on the front panel are attached to Swiss-made, precision-stepped rotary switches that give manual control an incredibly satisfying feel.

As with all Brama gauges, backlight intensity is adjustable via the Brama Remote and is visually stunning, day or night!

You already know how to use it.

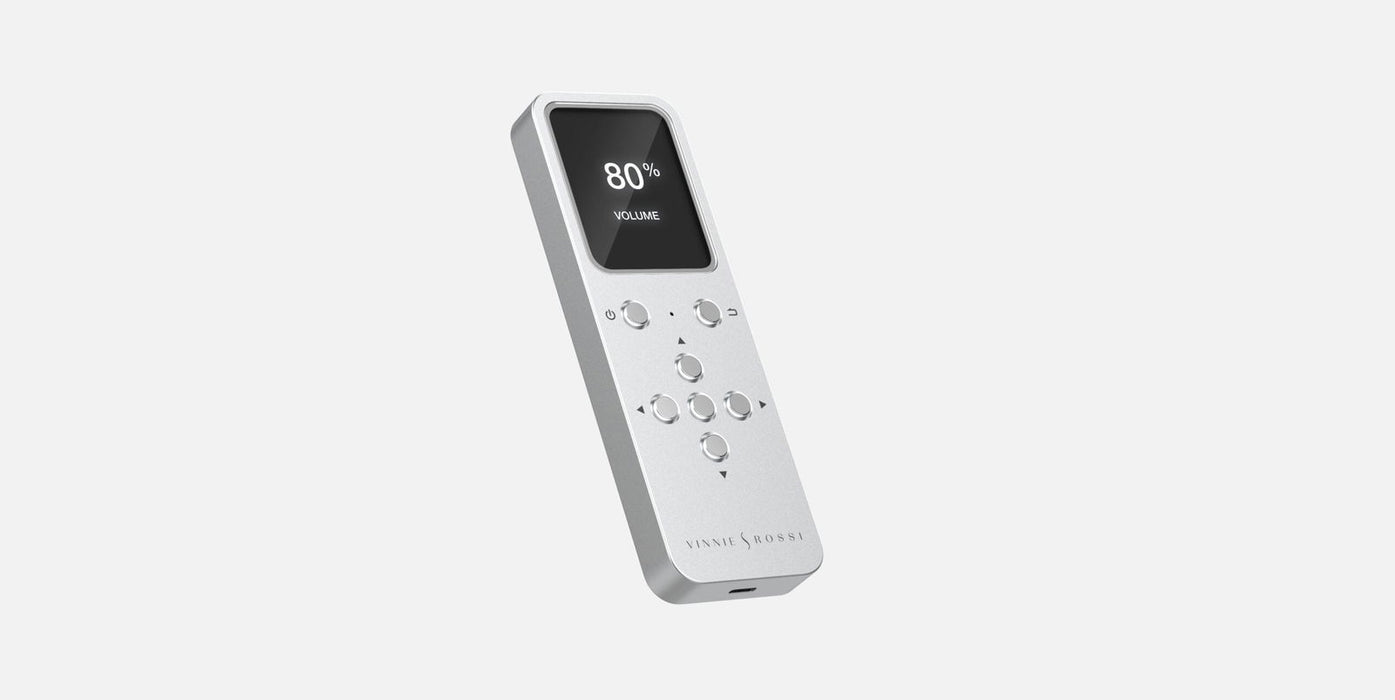

Brama Remote’s intuitive menu structure, high resolution display, and tactile push buttons provide you with seamless control of your listening experience.

A built-in ambient light sensor and accelerometer automatically controls the display brightness and senses when you are ready to take control. Bluetooth communication with your Brama Preamplifier means there are no line-of-sight or range issues, and USB-C connectivity makes battery recharging and firmware updates easy.

Brama Remote is machined from a solid block of aluminum and uses sapphire glass for the display area, offering remarkable scratch resistance and clarity.

Power with perception.

Combining responsiveness with resiliency, Brama Preamplifier’s massive power supply boasts a custom-wound 1750VA, magnetically shielded transformer with a highly inductive, insulated core.

Dual secondary windings feed independent, dual-mono linear power supply PCBs. Ultrafast soft recovery diodes, massive filter capacitors, and super-regulated outputs deliver vanishingly low noise and superb transient response.

The AC mains power is continuously monitored for fault conditions, delivering protection and notification to the Brama Remote in microseconds. No need to replace interior fuses, as our Hall-effect current sensors deliver advanced protection faster than you can blink!

Opening a new chapter…

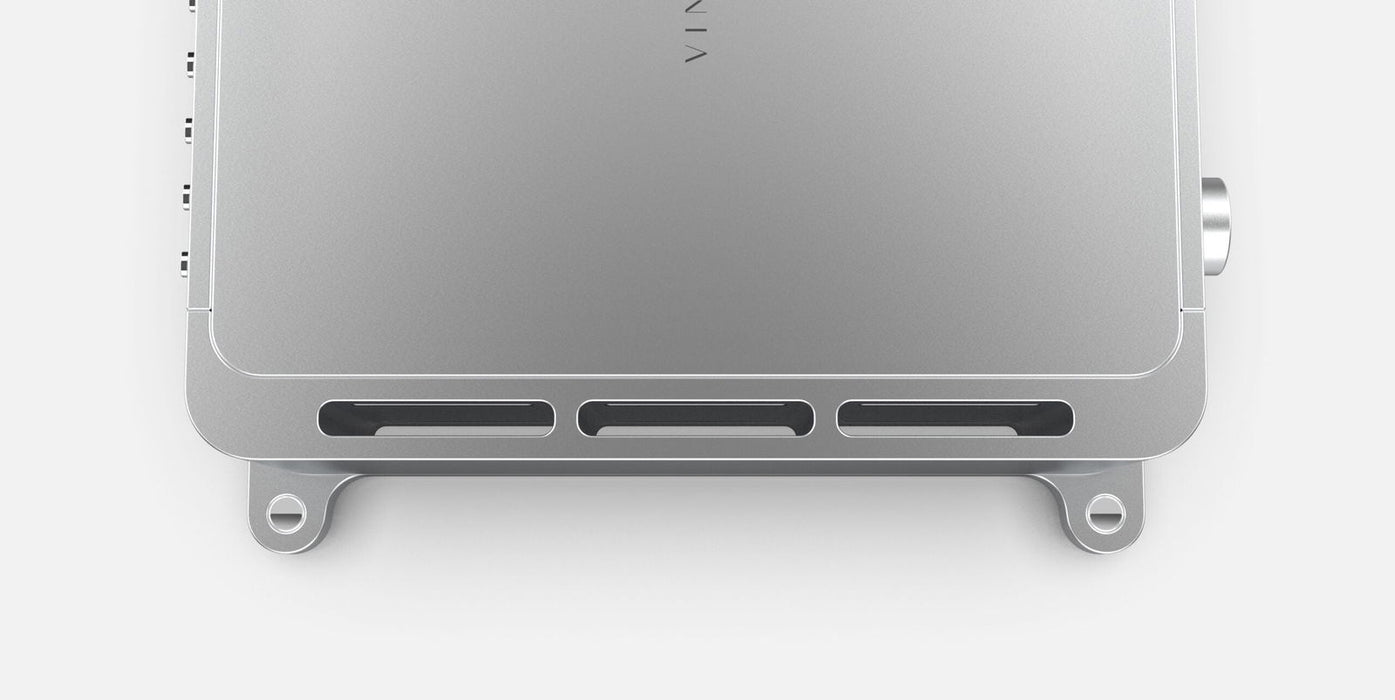

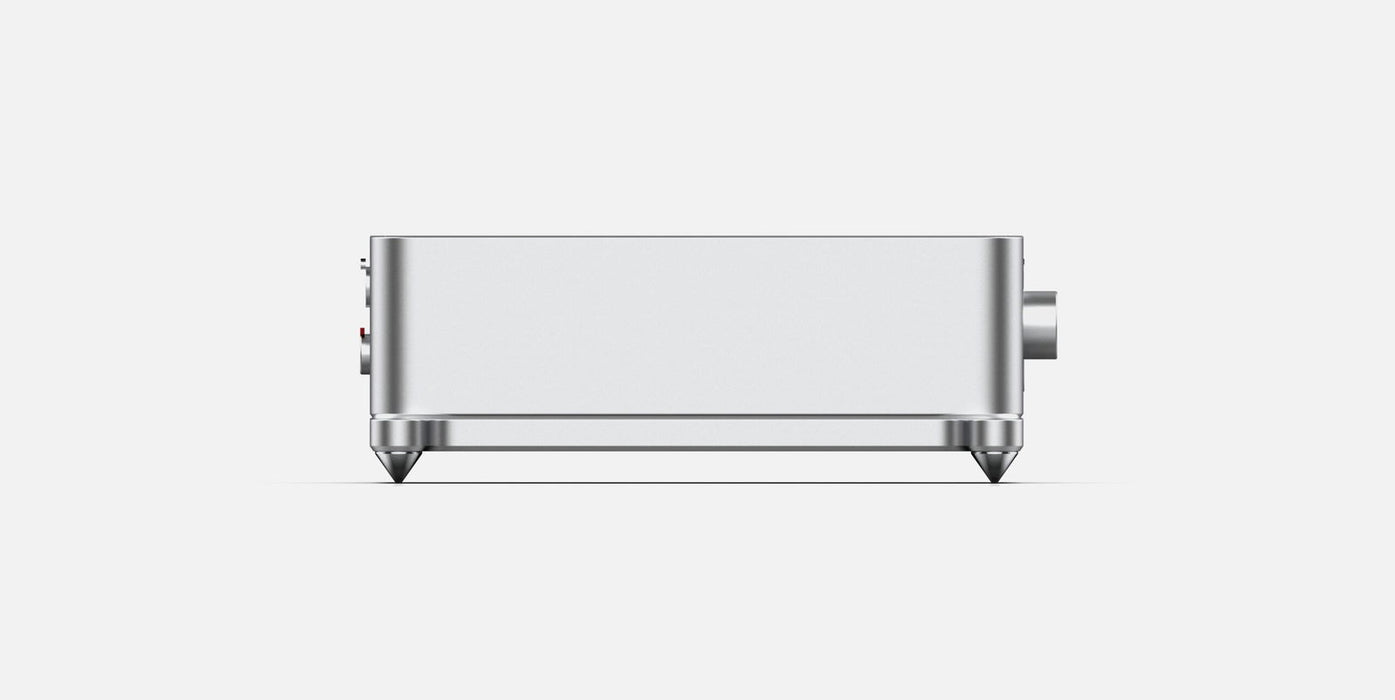

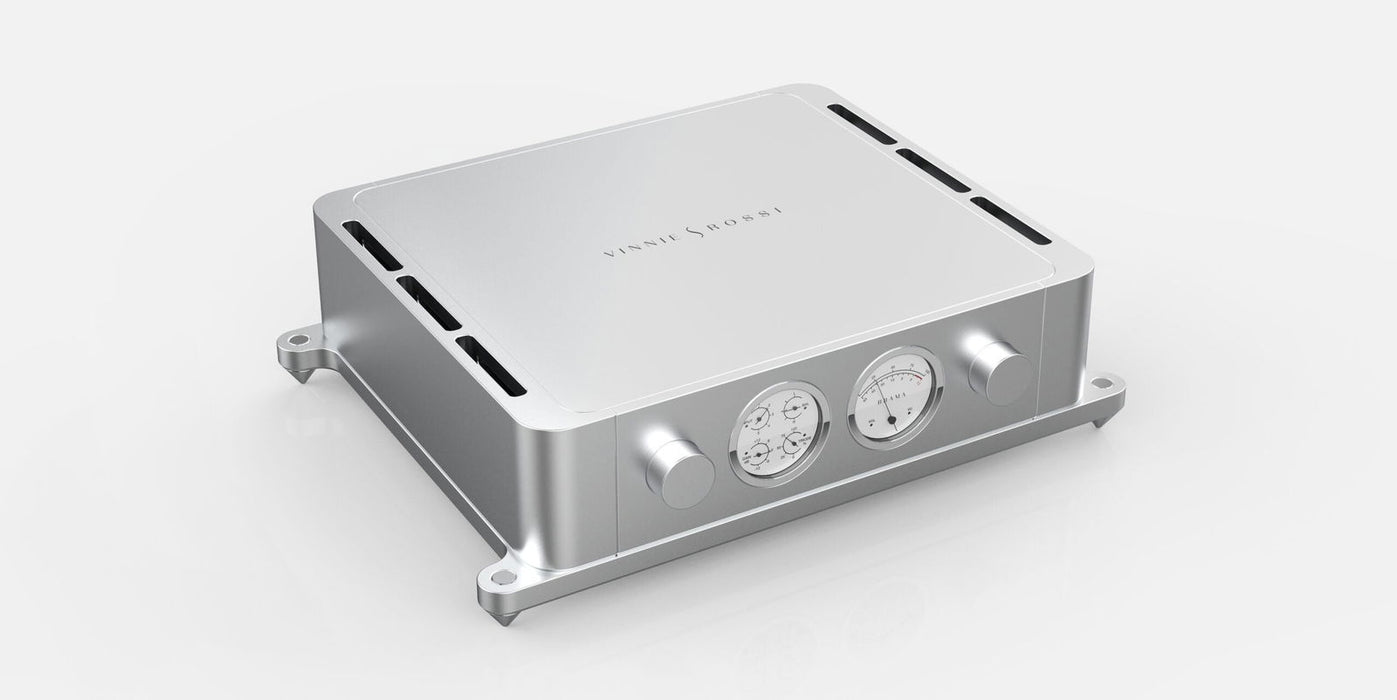

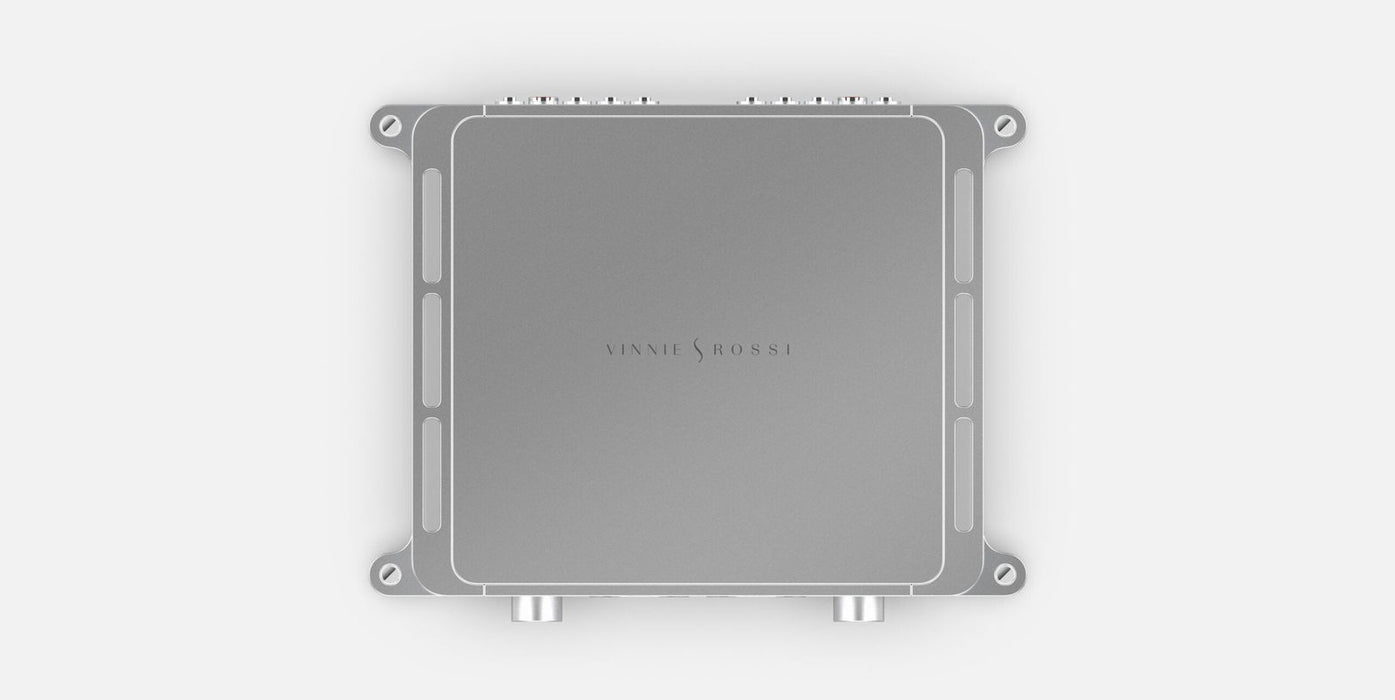

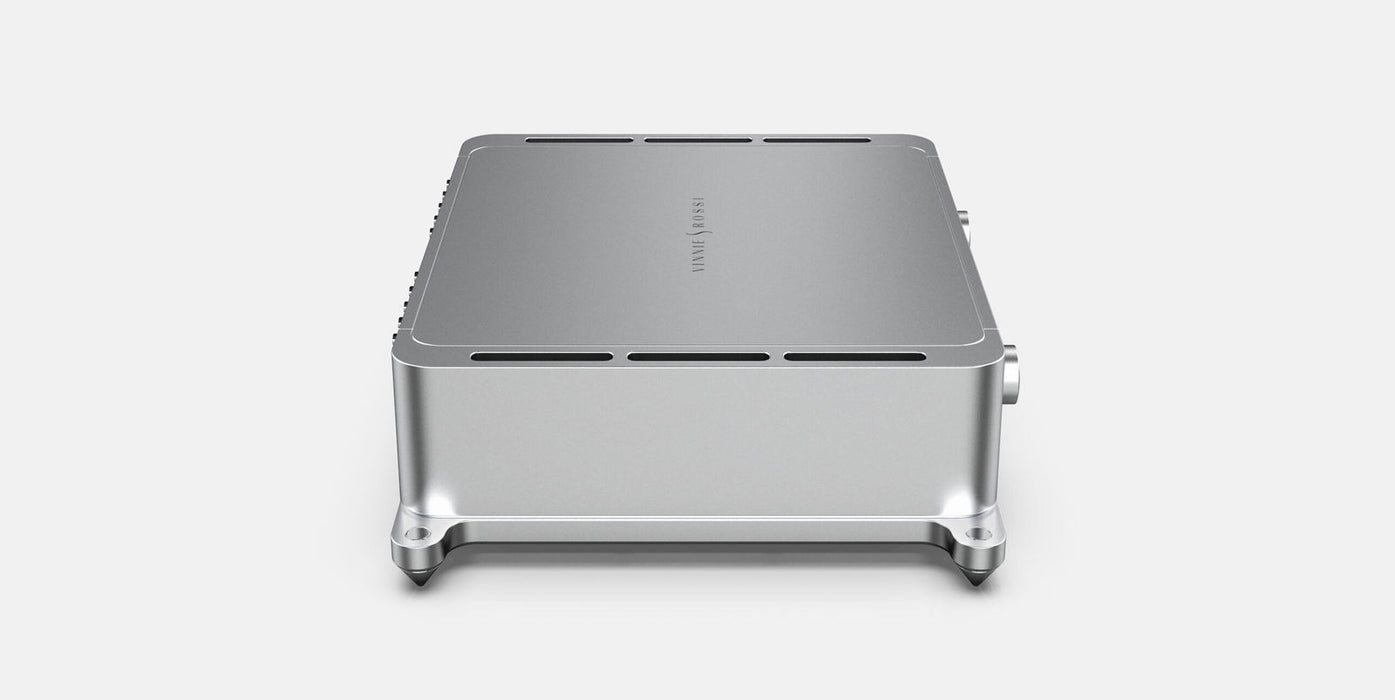

Brama Preamplifier incorporates advanced electrical, mechanical and industrial design techniques throughout. Starting with a low-resonance plinth, the entire chassis is machined from solid aluminum billet that is finely bead-blasted, anodized and laser engraved for a spectacular finish that feels as premium as it looks.

Inside the Brama is equally impressive. Multilayer, gold immersion PCBs with high copper content meticulously route analog, power, and fault-protection circuitry.

Every Brama is hand assembled and tested, one at a time, in our new manufacturing facility in Massachusetts, USA and is backed by a 10-year warranty.

Specifications

_________________________________

Operating Voltage Range: 100-125Vac or 210-250Vac, 50/60Hz

(transformer primaries are automatically switched based on the

AC mains voltage detected)

_________________________________

THD+N (solid-state linestage): < 0.01% (20Hz – 20kHz)

THD+N (300B Triode linestage): < 1% (20Hz – 20kHz)

_________________________________

Frequency Response: 5Hz – 100kHz (+/- 0.5 dB)

_________________________________

Signal-to-Noise Ratio (0% Triode mode): > 110dB (20Hz – 20kHz)

Signal-to-Noise Ratio (100% Triode mode): > 100dB (20Hz – 20kHz)

 _________________________________

Input Impedance: 100k ohm

_________________________________

Gain: Adjustable (-12dB, -6dB, 0dB, +6dB, or +12_________________________________

Output Voltage: 20Vrms, max. (balanced outputs)

_________________________________

Output Impedance: < 100 ohms

_________________________________

IEC Jack Fuse: 10A, Slow Blow (5x20mm)

Power consumption (idle): 45W

_________________________________

Product Weight: 80 lbs (36 kg)

Product Dimensions (including knobs, jacks, feet):

20.5″ width x 16.25″ depth x 5.75″ height (520mm x 410mm x 145mm)

Remote Dimensions: 6″ x 2″ x 0.5″ (150mm x 50mm x 12.5mm)

Shipping Weight: 105 lbs (48 kg)

Shipping Carton Dimensions: 24″ x 24″ x 14″ (610mm x 610mm x 355mm)

__________________________________

Note:

• Vinnie Rossi reserves the right to change product features and/or specifications without notice to improve reliability, function, design, or otherwise.
