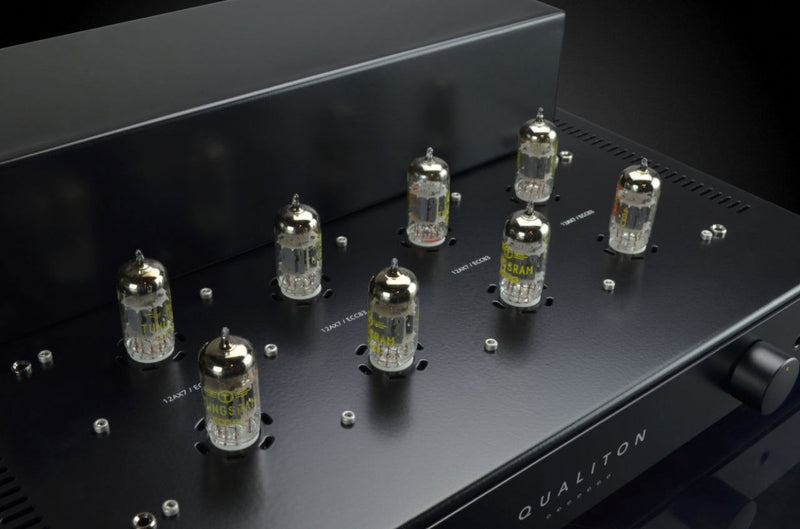

To complete the line-up of our Classic Series, we designed a true all-rounder preamplifier, with beautifully balanced sound character, and one of the finest vintage tubes available, the Tungsram ECC83. The C200 uses 8 of them, so each output gets the flavour of these exceptional tubes.

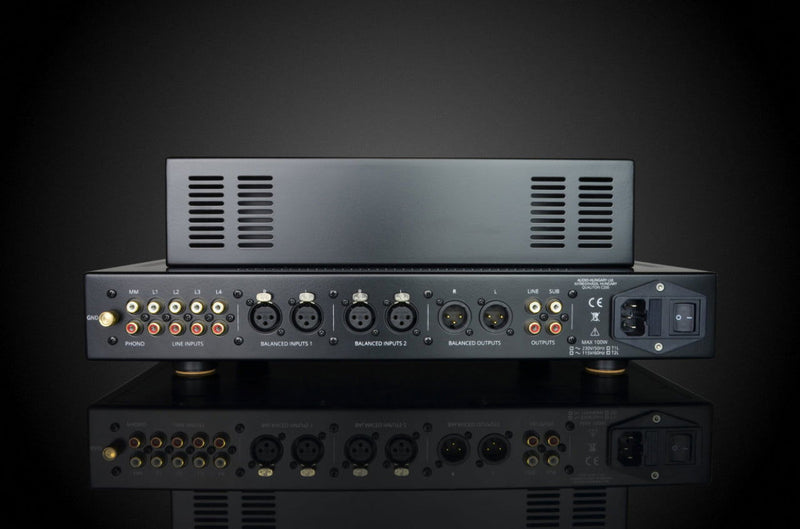

As always, the most important aspect of the design process was to meet the widest possible range of user needs. Starting at the inputs, we have 4 UNBALANCED and 2 BALANCED line level inputs and a MM PHONO level input available. On the output side, the C200 is equipped with 2 UNBALANCED line level outputs (one of which can be connected to a subwoofer), we also have a BALANCED line level output and a HEADPHONE connection for dynamic headphones. With this set of I/O ports, users have plenty of options to connect the C200 into their system. And best of all, each output port carries the characteristics of classic Tungsram tube sound, while interference and noise levels have been reduced to the absolute minimum.

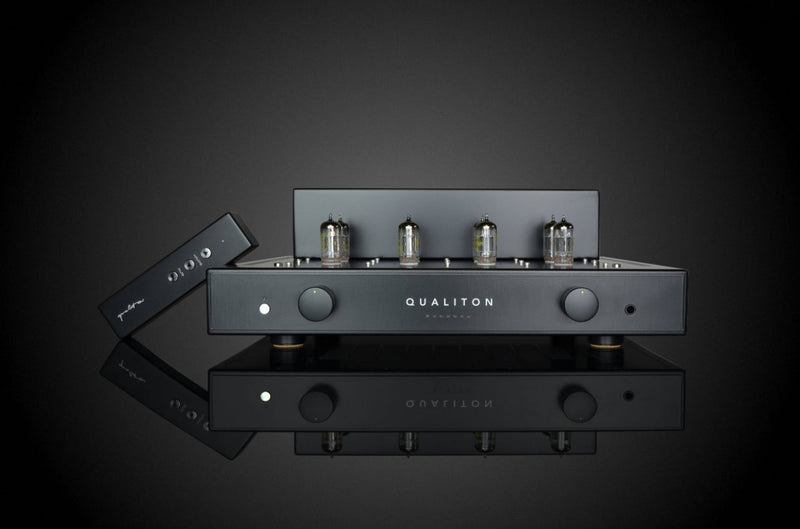

Along with the C200, we are also introducing an updated remote control, on which, in addition to the previous VOLUME UP, VOLUME DOWN and MUTE buttons, there is also a POWER ON/STANDBY button. After pressing this button, a circuit provides 1 minute of wake-up / warm-up time for the tubes. After this time, the C200's outputs will become active and ready for use.
| Name | Value |
| Nominal output level - Line | 4 V |
| Input sensitivity - Line | 1 V, to nominal output level |
| Input sensitivity - Phono | 5,7 mV, to nominal output level |
| Number of input ports per channel | 4 unbalanced line level inputs (LINE 1-4); 2 balanced line level inputs (BALANCED INPUTS 1-2); 1 PHONO level input (PHONO MM) |
| Number of output ports per channel | 2 unbalanced line level outputs (LINE; SUB); 1 balanced line level output (BALANCED OUTPUTS); 1 headphone output per channel |
| Max. input signal - Line | 10 V |
| Max. input signal - Phono | 70 mV |
| Gain - Line | +12 dB |
| Gain - Phono | +57 dB |
| Total harmonic distortion - Line | < 0.05%, (f = 1 kHz) |
| Total harmonic distortion - Phono | < 0.1%, (f = 1 kHz) |
| Frequency response - Line | 4 Hz - 300 kHz, (-1 dB) |
| Frequency response - Phono | 20 Hz - 20 kHz, (-0.5 dB) |
| Input impedance - Line | 10 kOhm |
| Input impedance - Phono | 47 kOhm |
| Signal-to-noise ratio - Line | > 100 dB |
| Signal-to-noise ratio - Phono | > 70 dB |
| Tubes required | 8 x ECC83/12AX7 |
| Weight | 10.4 kg |
| Dimensions | 43 x 40 x 16 cm |
