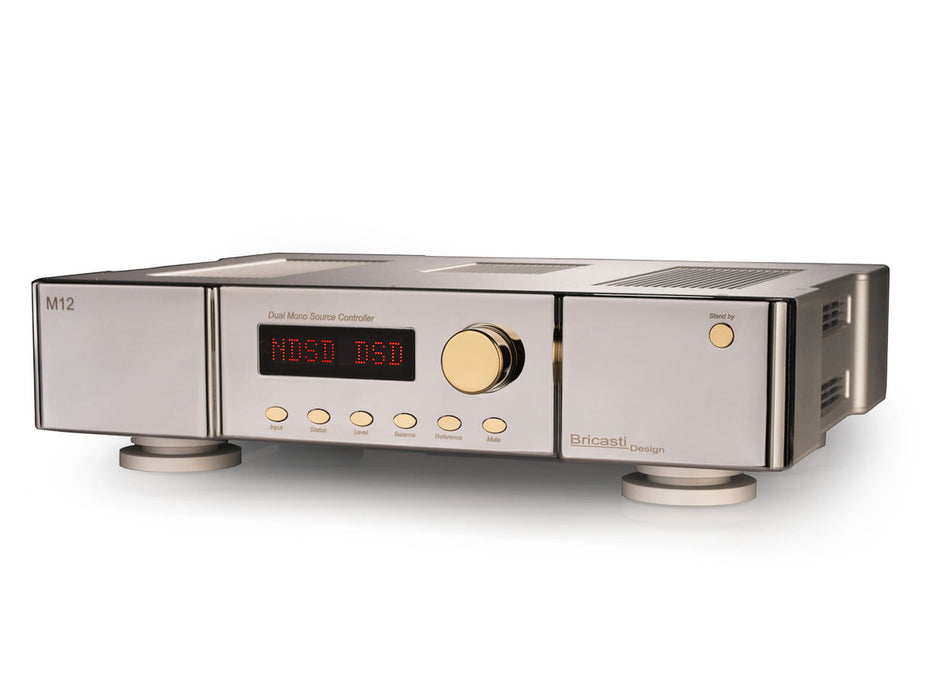

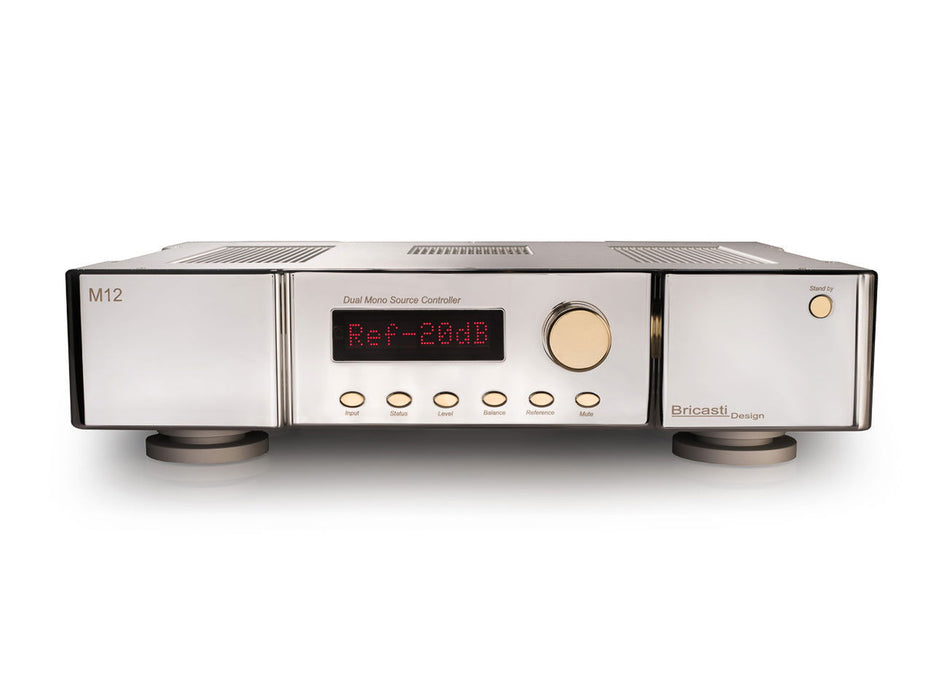

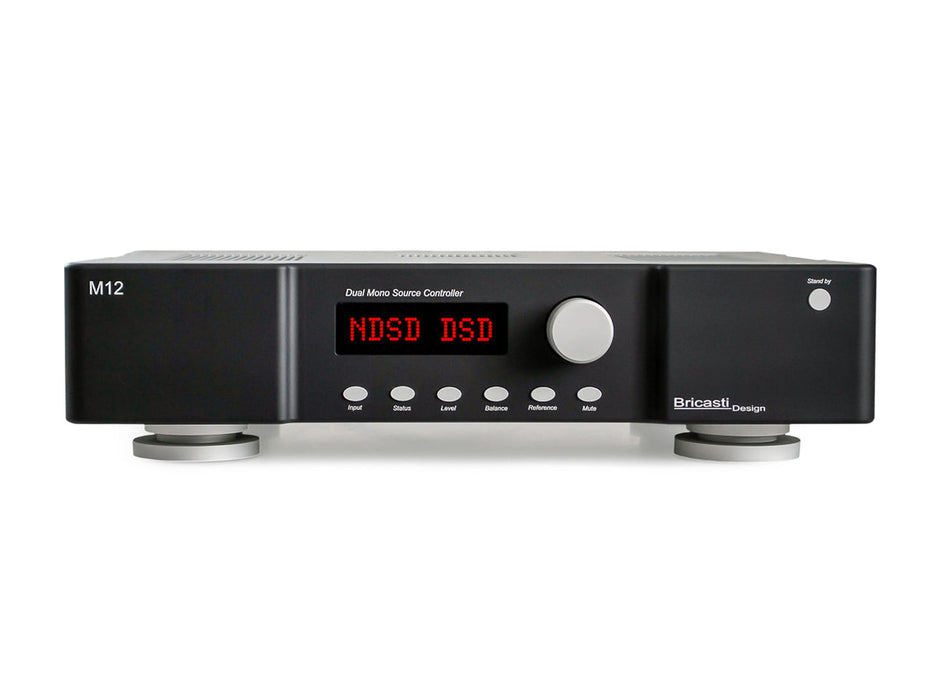

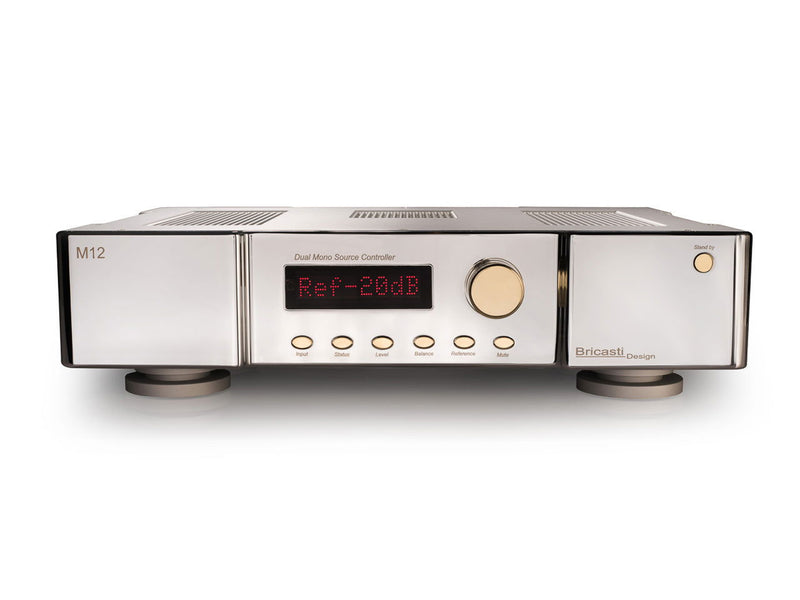

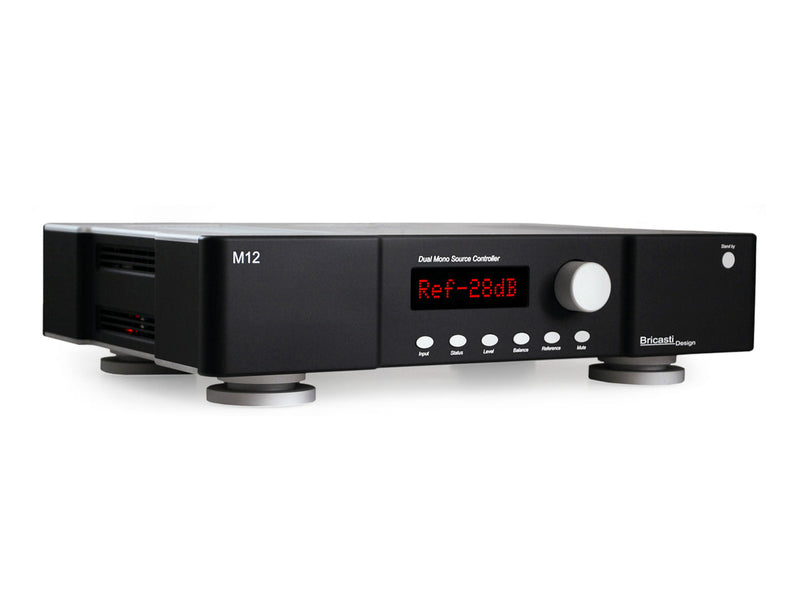

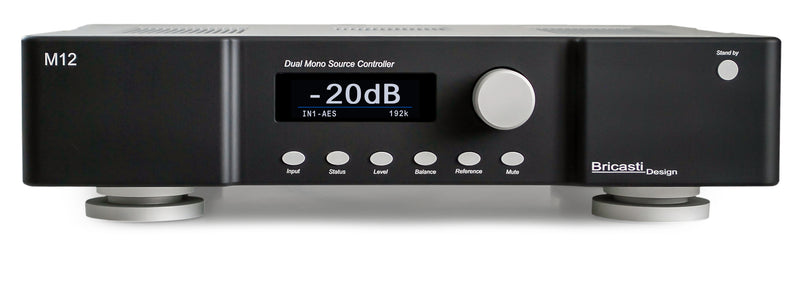

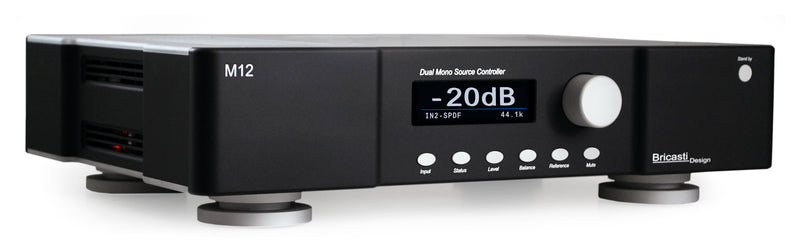

Bricasti M12 Source Controller / Preamplifier

The M12 Source Controller combines a Bricasti digital-to-analog converter with an analog preamplifier. Alongside its digital inputs it has one set of balanced and unbalanced analog inputs for a phono stage, tape machine or tuner.

The converter is built on the M1 design and uses the MDx processor. PCM is converted by a 24-bit delta-sigma DAC. DSD has its own 1-bit converter, designed in-house, with filtering and level control carried out in the analog domain.

Volume is set by a digitally controlled, fully balanced dual mono resistor ladder at the output of the DAC's I-V stage, over 90 dB in 1 dB steps, and is remote controlled and programmable. Three medical-grade power supplies feed the left analog channel, the right analog channel, and the digital and analog processing.

Supplied with the network player and remote control.

Specifications

• Conversion: PCM 24-bit delta-sigma, 8x oversampling; DSD direct 1-bit

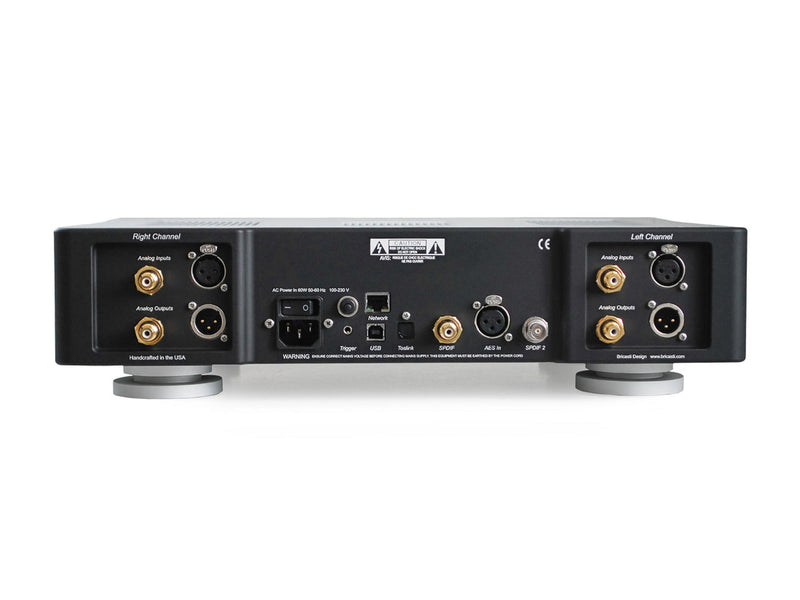

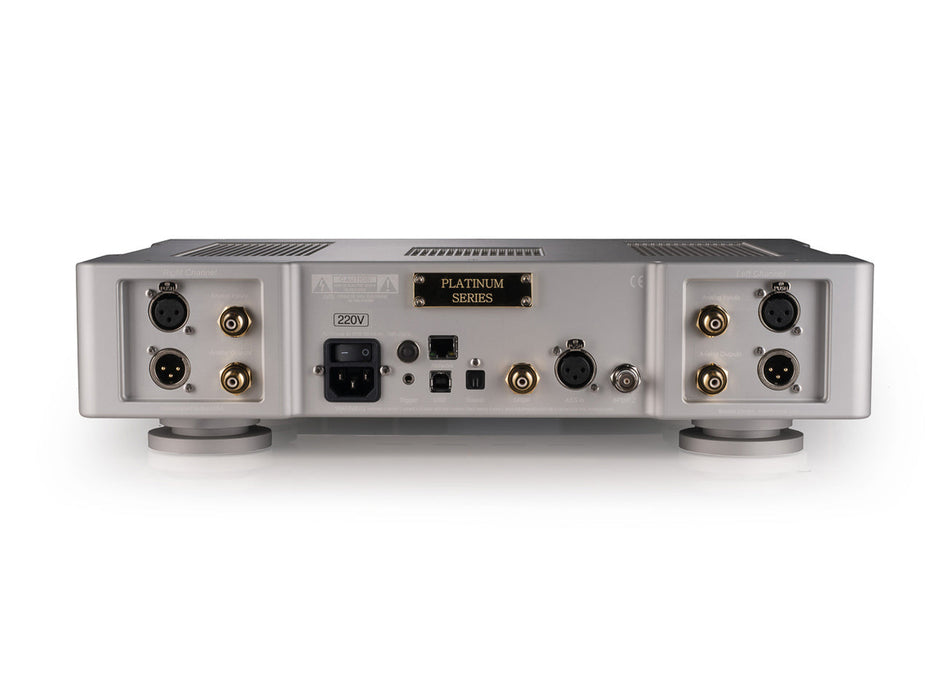

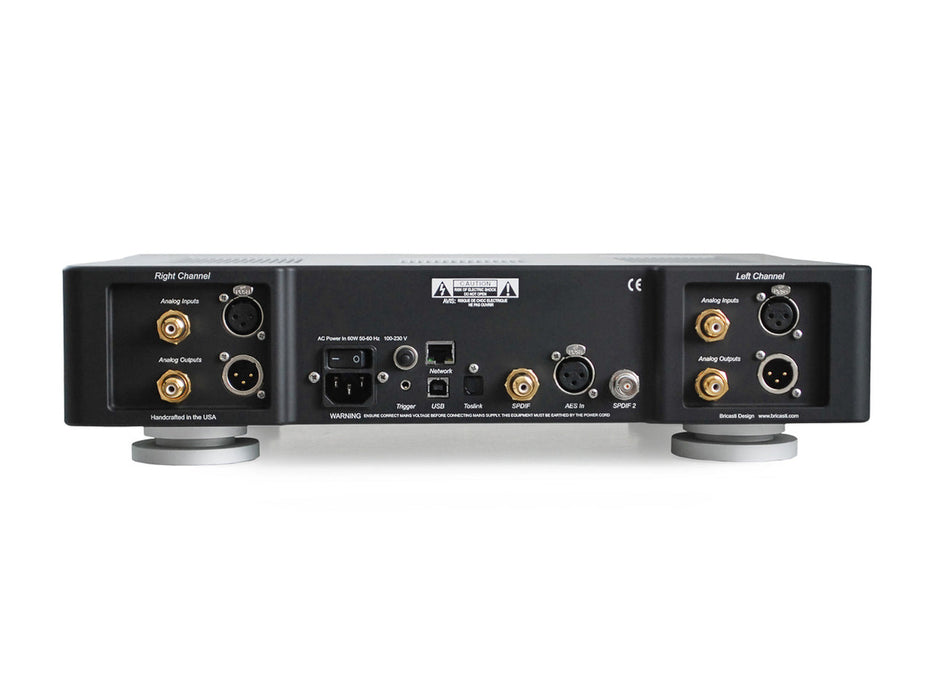

• Digital inputs: AES/EBU (XLR), S/PDIF (RCA), Toslink (44.1–96 kHz), USB, Ethernet

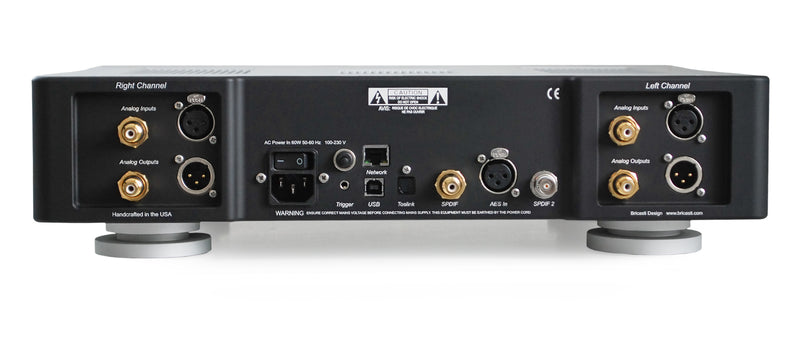

• Analog inputs: one balanced (XLR) and one unbalanced (RCA)
• USB: 44.1–384 kHz; DSD64, DSD128 and DSD256 native and DoP
• Balanced output (XLR): +16.5 dBm (5.2 V RMS) at full scale; 40 ohms
• Level control: 90 dB in 1 dB steps
• THD+N at 1 kHz: 0.0008% at 0 dBFS; 0.0004% at -30 dBFS
• Dimensions: 17 x 12.5 x 4.5 in; 15 lb

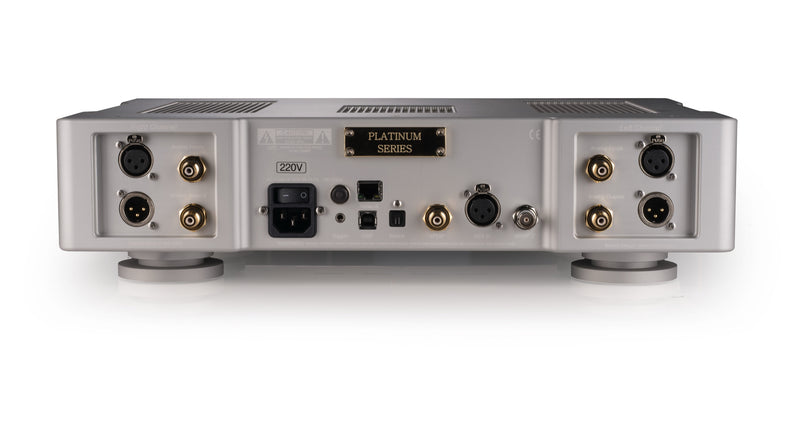

• Finish: Classic black, Argento silver or Platinum
• Warranty: 2 years parts and labor
