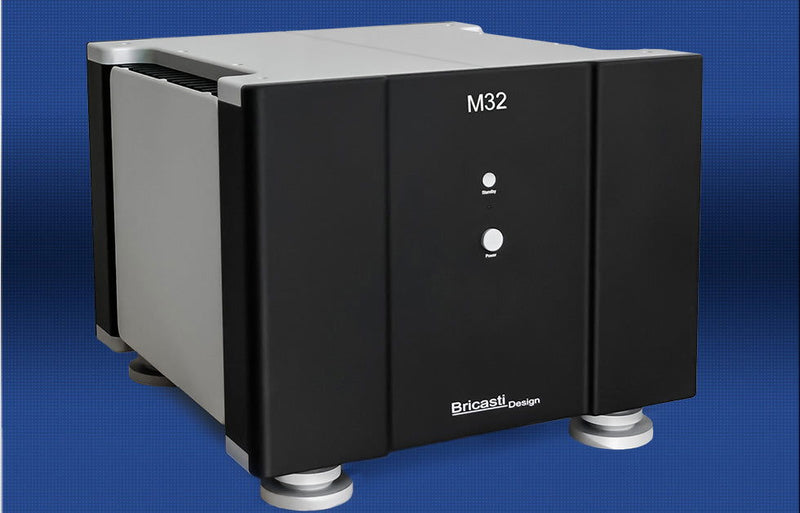

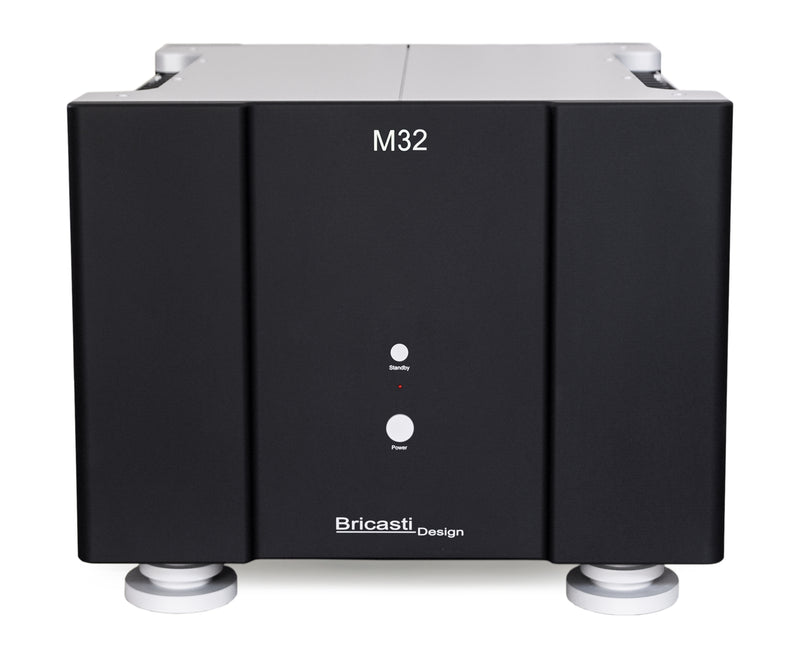

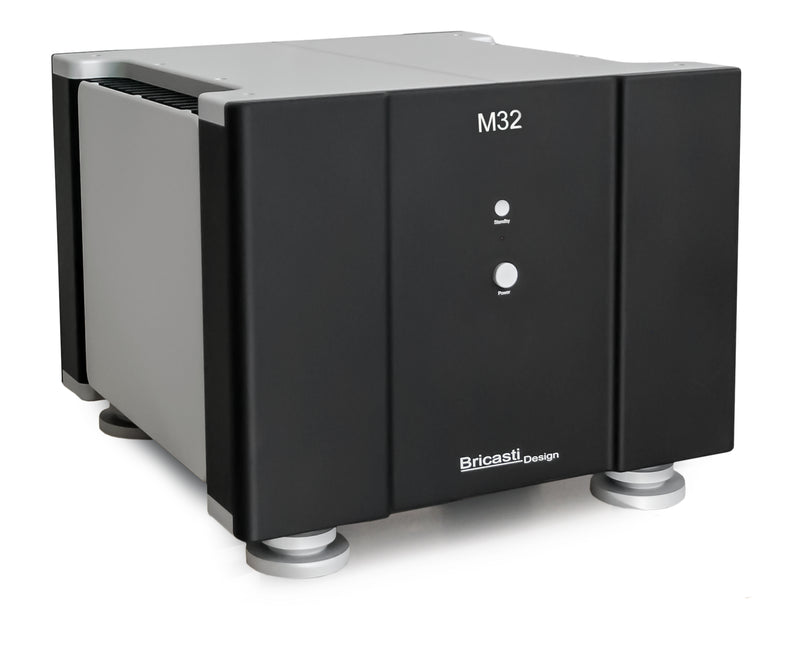

Model 32 Monoblock Amplifier

The M32 power amplifier is the latest rendition in the Bricasti line of power amplifiers. The flagship M32 builds upon the award winning Bricasti M28 and raises the bar to a whole new level of enjoyment with impressive depth and solidity that needs to be experienced to be fully appreciated.

Supercharged

The M32 has an impressive 50% more current delivery when comparing to the M28; high current delivery, extremely low noise and low distortion with even less power supply ripple. The power delivery of the M32 is increased to 250W into 8 ohms, 500W into 4 ohms, and current limited for safety at 1000W into 2 ohms, more than 1kw peak power into 4 ohms.

Fully differential

Not all devices are balanced end-to-end. The M32's fully differential design delivers a fast, low distortion, open and harmonically accurate musical experience. Paired with any of the Bricasti line of fully differential digital to analog converters, a truly balanced system can be enjoyed from source to speaker.

Dialed-In

An improved chassis capable of housing the new larger power transformer which offers a greater distance between the power components and the voltage and current gain sections of the amplifier. The results are a design that yields extremely low noise performance and no practical interference from the power supply components and gain sections of the amplifier.

Total Harmonic Distortion THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms.
Power 250W into 8 ohms, 500W into 4 ohms, 1000W into 2 ohms.
Frequency response 10hz-150kHz, within 0.5db.
Signal to Noise greater than 95db at full rated.
Power Topology Fully Differential, bi polar.

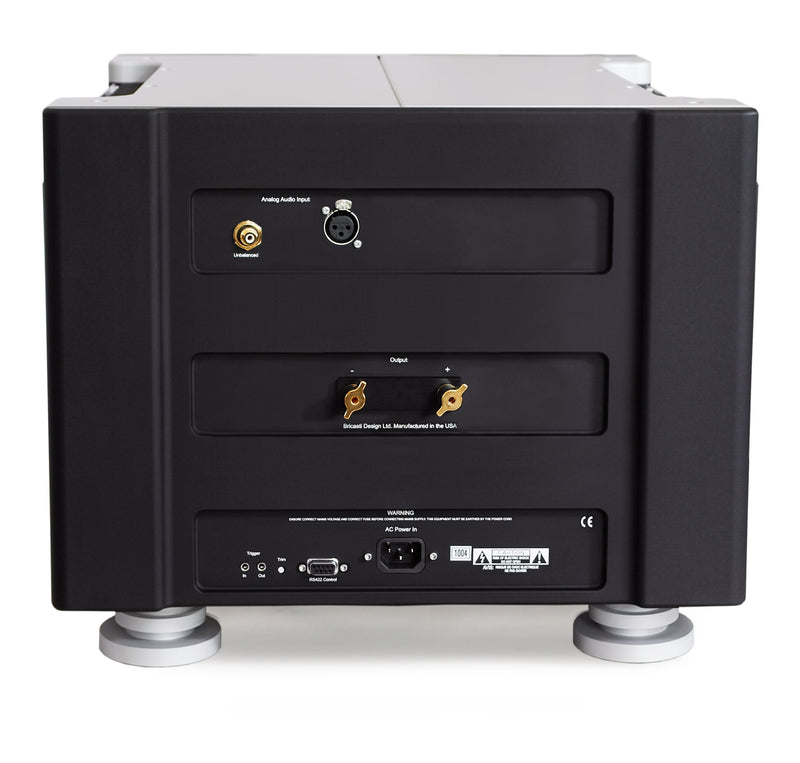

Balanced Input XLR connector 200k ohm impedance.
Unbalanced Input RCA connector 100k ohm impedance.
Weight 120 lbs.
Shipping Weight 140 lbs.

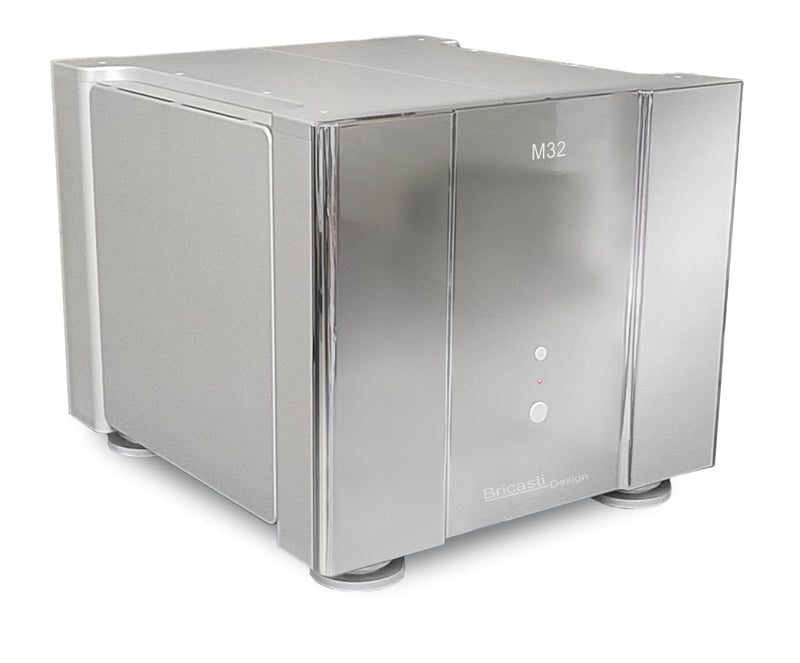

Finish Anodized Aluminum.
Mains Voltage set at factory 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz.
Trigger In TRS connector for 5V external trigger.
Power consumption 60W standby, 2W idle.
