Chario Academy Serendipity 5 way Floorstanding Loudspeakers

by Chario
Original price - Original price
Original price
-
Current price

HIGH END MASTERPIECE


The flagship of the Academy Series is the grand culmination of the extensive research and development undertaken by Chario Loudspeakers since was founded in 1975.


Here are some of the concepts, structures, and principles that have brought us worldwide acclaim:


  • NRS 2π sr
  • Hyper Exponential Hourglass
  • Reversed Vertical Array
  • Silversoft Dome /
  • Rohacell®
  • Full Apex™
  • Polyring
  • Neodymium
  • Overlapping Points
  • WMT™ Alignment
  • SoundCap®

Hidden Pieces

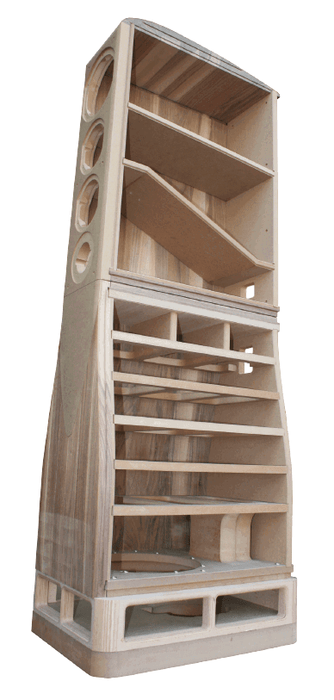

Composite material of ecological origin will show isotropic behaviour, losing energy in all directions inside its fibres. Solid wood, on the other hand, used in swallow-tailed staves, is the best solution for achieving a rigid structure. The objective of combining the best characteristics of natural wood and wood fibre is achieved by pairing panels on orthogonal planes. Serendipity infrastructure actually has the task of damping the mechanical vibrations generated by woofers and confining them inside the cabinet. The image on the left shows the tensor surfaces, reflex duct and the structure that houses the two 320 mm subwoofers in the proprietary NRS isobaric configuration.

Walnut Wood

It is a medium-sized plant, whose height can reach 30 meters, with erect trunk and wrinkled bark; the name of the plant comes from the internal channels carrying chlorophyll. The leaves are deciduous, alternate, compound, with 15-23 serrated edges, spear-shaped leaves, 6-12 cm long, pale green on both pages.

The plant carry unisexual flowers, the fruits are round, solitary or in pairs; the outer husk has rough surface and contains a blackish walnut, round, very woody and wrinkled that contains within it a seed with a strong, unpleasant taste.

This plant has an high stability, if the wood is treated with vaporization process, medium-high hardness, high durability to the heartwood, poor for the sapwood, very good processability. Odorless.

echnical Data



Low Frequency Load

NRS 2π sr Vented Isobaric Compound


Vent Geometry

Bidimensional Hyper-Exponential Hourglass Type


Configuration

5 -way Reversed Vertical Alignment Free-Standing


Drivers

 1 Tweeter 32 mm SILVERSOFT™ dome NeFeB motor

1 Midrange 130 mm ROHACELL® Poly-Ring NeFeB motor

1 Woofer 130 mm ROHACELL® Full-Apex™ Poly-Ring NeFeB motor

1 Woofer 170 mm ROHACELL® Full-Apex™ Poly-Ring NeFeB motor

2 Sub 320 mm Natural Fibres - 2 Waves Surround HF motor


Sensitivity

93 dB SPL normalized to 1 m / 2.83 Vrms / decorrelated L/R

pink noise in IEC 268 -1 compliant listening room


Low Frequency

Cut Off 23 Hz @ -3dB referred to C4 WETS


Overlapping Points

240/500/1250/1850 Hz (See plot)


Rated Impedance

Modulus 4 Ω (min 3.0) Argument ± 36°
