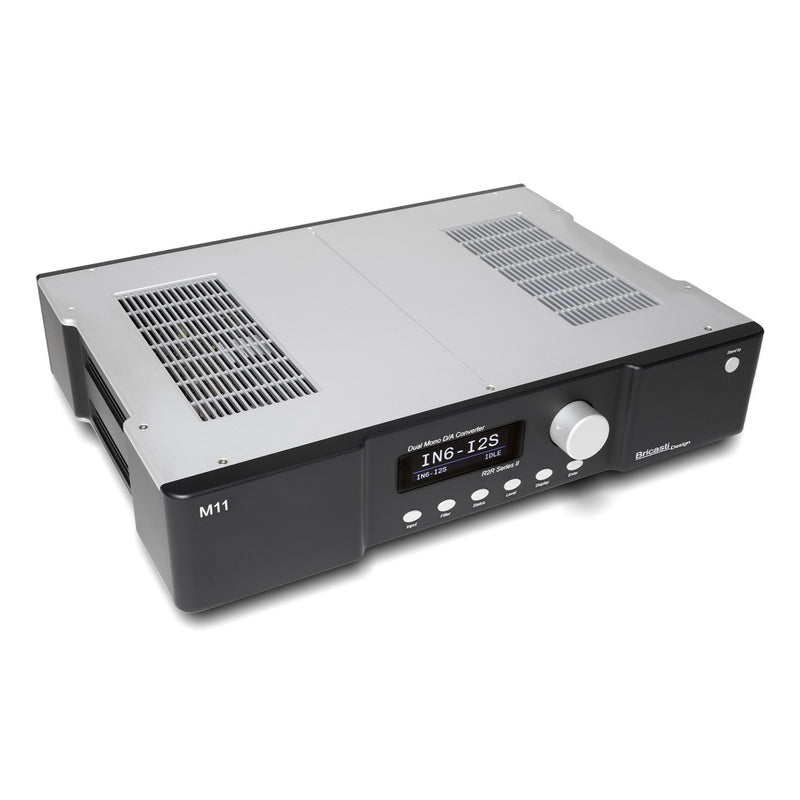

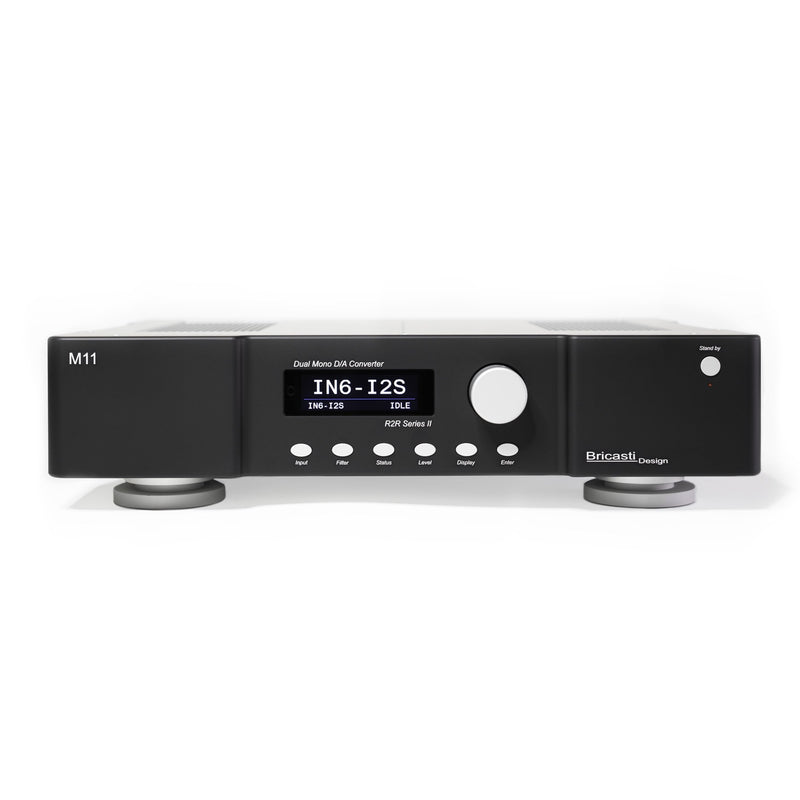

Bricasti M11 Series II R-2R DAC

The M11 Series II builds on the M11 Classic with power supply technology taken from Bricasti's M1 Series II, which lowers noise at every stage of signal processing. Conversion is by a 20-bit R-2R ladder DAC, using technology derived from the M21.

The MDx processor handles digital processing, backed by Bricasti's clocking and filter work. Outputs are balanced XLR and unbalanced RCA; the balanced output level is set internally to +13.5 dBm or +10 dBm.

The platform is upgradeable. A network player card allows playback from a server anywhere on the home network, and an I2S input connects the M11 Series II to Bricasti's M19 SACD/CD transport.

Supplied with remote control. Network player option, $1,000.

Specifications

• Conversion: 20-bit R-2R ladder

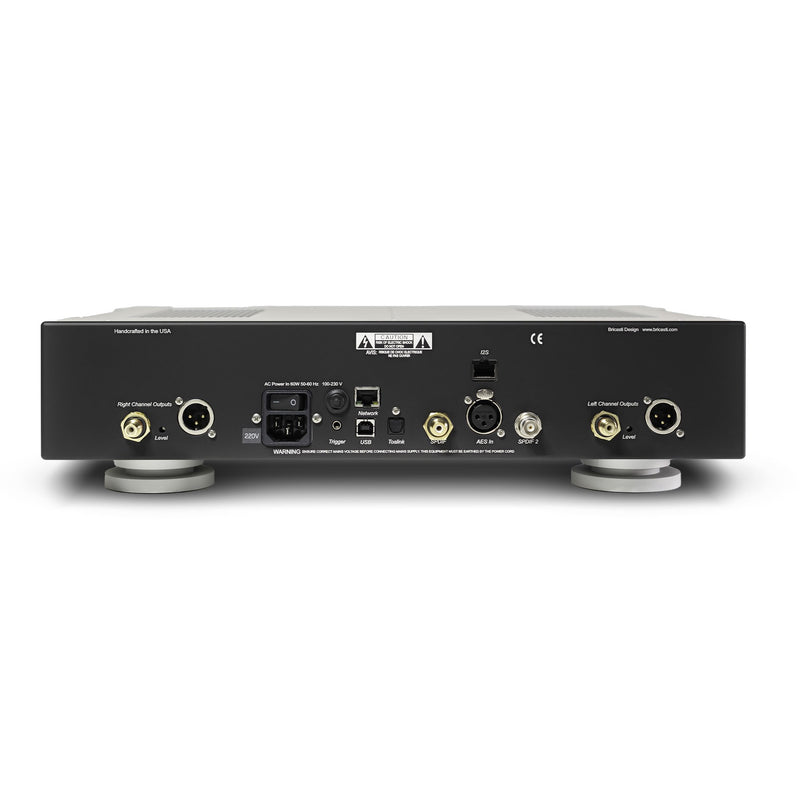

• Digital inputs: AES/EBU (XLR), S/PDIF (RCA), Toslink (44.1–96 kHz), USB; Ethernet and I2S optional
• USB: 44.1–384 kHz; DSD64, DSD128 and DSD256 native and DoP
• Ethernet (optional): 44.1–384 kHz; DSD64 and DSD128 native and DoP
• Jitter: 8 ps at 48 kHz; 6 ps at 96 kHz
• Balanced output (XLR): internally selectable +13.5 dBm or +10 dBm; 40 ohms
• Unbalanced output (RCA): +8 dBm (2 V RMS); 40 ohms
• THD+N at 1 kHz: 0.0020% at 0 dBFS
• Dimensions: 17 x 12.5 x 4.5 in; 15 lb
• Power consumption: 28 W; 6 W standby
• Finish: Classic black or Argento silver
• Warranty: 2 years parts and labor
