MSB Discrete DAC
The Discrete DAC
Refined sound. Elegant design.
The Prime DAC
With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience defying expectations.
A display for the listening chair
Equipped with high-visibility and a wide viewing angle, the display is both easy-to-read and stunning, exhibiting our love for intuitive features. The LED display, slaved to the audio clock, is refreshed between data processing to drastically reduce electrical interference. The in-house discrete design is then constructed into its own shielded CNC pocket for optimal isolation. Sit back and be immersed.
Engaging with the Future
MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.
Superior streaming
The MSB Renderer was developed using an in-house hardware design running an ultra low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.
– Up to 32 bit – 768kHz
– MQA decoding
– Roon Endpoint
– Up to 4X DSD
– UPnP Protocol
– DLNA Protocol
Discrete Power Supply
Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.
Premier Powerbase
Built to accommodate modular components, the Premier Powerbase is highly adaptive, offering two dual-link power connectors, supplying four isolated power supplies. Make it your own—with the addition of dual low-noise shielded transformers, optimized power filtering, enhanced grounding and high-performance regulators, your DAC will be unrivaled in its performance.
Completely modular
Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

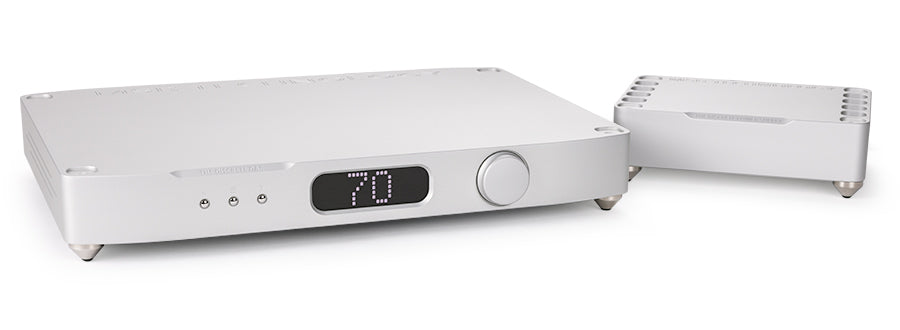

(Discrete DAC base configuration shown)
Anodized Finishes
Elegant yet commanding, our finishes are available in a matte silver or matte black anodize. Replaceable foot guards are included to protect the chassis from damage. Any audiophile M6X1 foot can be installed to optimize your system.
The Discrete DAC |
|
|---|---|
|
|
|
| Supported Formats (Input dependent) | 44.1kHz to 3,072kHz PCM up to 32 bits 1xDSD, 2xDSD, 4xDSD, 8xDSD Supports DSD via DoP on all inputs |
| Digital Inputs | 1x RCA Coaxial 1x XLR 1x Word-Sync 2x Toslink 2x Advanced isolated input module slots |
| XLR Analog Outputs | 3.57Vrms Maximum |
| 300Ω Balanced | |
| Galvanically isolated | |
| Volume Control | 1dB steps (Range 0 - 106). Volume Control can be disabled in the menu. |
| Display | Discrete LED audio clock synchronous display Adjustable brightness and auto-off feature |
| Controls | Isolated RS-232 IR Remote Front panel interface |
|
|
|
| Width: | 17 in (432 mm) |
| Depth: | 12 in (305 mm) |
| Chassis Height (Without Feet): | 2 in (51 mm) |
| Stack height: | 2.65 in (68 mm) |
| Weight: | 18 lbs (8.2 kg) |
|
|
|
| Width: | in ( mm) |
| Depth: | in ( mm) |
| Height: | in ( mm) |
| Weight: | lbs ( kg) |
|
|
|
|
MSB Remote USB charging cable 4X Spiked feet 4X Plastic foot inserts |
|
The Discrete DAC
Includes:
- Balanced Analog Outputs
- 2x Optical inputs
- Coaxial input
- XLR input
- Word-Sync Out
- 2X Optional Digital Input Slots
- MSB Remote
- Discrete Power Supply
- Stock Colors: Silver and Black
