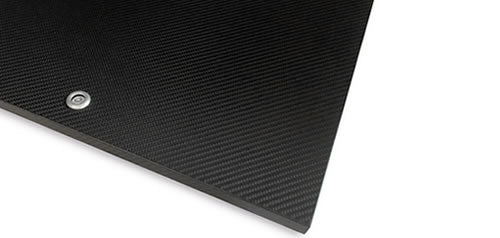

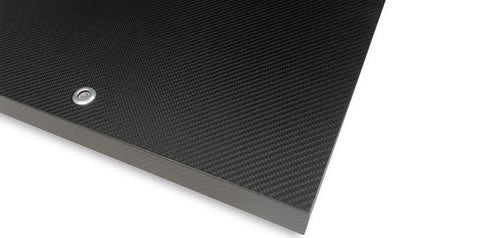

Finite Elemente Carbofibre Isolation Base
The ultralight isolation bases made of carbon fiber-layered honeycomb cores provide a significantly improved sound quality through their controlled resonance damping and dissipation – more detail, more dynamics and ultimately more music.
Our isolation bases offer the optimum combination of lightweight design and extreme torsional rigidity.
CARBOFIBRE° SD
Single-layer version in 23 mm thickness for light to middle-weight components (load capacity up to 50 kg).
Specifications:
- Material: Carbon fibres with ultra-light honeycomb core encased with carbon fibres on all sides, single-layer construction
- Application: for light to medium-heavy components
- Dimensions (WxDxH): CF01:
CF02:
17.7" W x 15.8” D x0.9" H
19.7" W x 18.7" D x 0.9" H
- Useable height: 45 – 55 mm (incl. adjustable feet)
- Load capacity: 50 kg
- Special features: height-adjustable feet made of precision-manufactured stainless steel, precision bubble level for perfect levelling of the isolation base
- Options: CERABASE°, CERAPUC° oder CERABALL° available as upgrade
- Special dimensions available upon request
CARBOFIBRE° HD
Multi-layer version in 45 mm thickness for light to heavy components (load capacity up to 100 kg).
Specifications:
- Material: Carbon fibres with ultra-light honeycomb core encased with carbon fibres on all sides, multi-layer construction
- Application: for light to heavy components
- Dimensions (WxDxH): CFHD01:
CFHD02:
17.7" W x 15.8" D x 1.7" H
19.7" W x 18.7" D x 1.7" H
- Useable height: 67 – 77 mm (incl. adjustable feet)
- Load capacity: 100 kg
- Special features: height-adjustable feet made of precision-manufactured stainless steel, precision bubble level for perfect levelling of the isolation base
- Options: CERABASE°, CERAPUC° oder CERABALL° available as upgrade
- Special dimensions available upon request
