The BBC LS3/5A

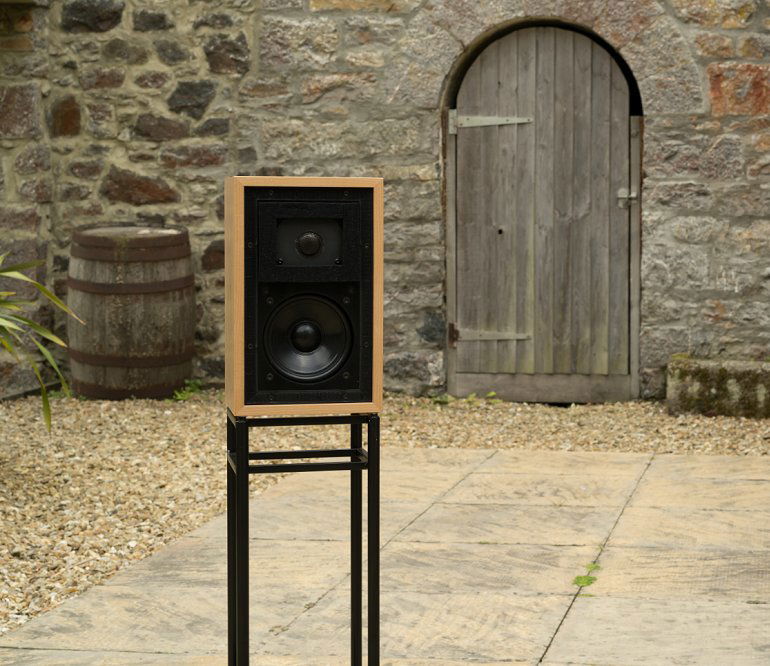

By popular demand, Graham Audio are proud to present the BBC-licensed Chartwell LS3/5A.

The LS3/5A was produced by BBC Designs Department in response to detail changes in the performance of the drive units that were originally chosen for the LS3/5 as designed by BBC Research and Development. It is the most well-known of all the BBC loudspeakers, and remains the compact loudspeaker of choice for many today.

As you would expect, our version - engineered by Derek Hughes - includes authentic details such as the perforated metal tweeter grille, thick felt pads surrounding the tweeter, and Velcro rather than our usual hidden magnets to secure the grille frame. The cabinet uses 12mm panels and a fixed rear panel, according to BBC Designs Department's specification.

As the only company to have ever manufactured the LS3/5, and now also the LS3/5A, audiophiles are now in the unique position of being able to hear for themselves the differences that these changes made to the design originally intended by BBC R&D.

Specifications

System 2 Way, sealed enclosure
Enclosure Thin wall construction, 12mm birch plywood
Finish Real wood veneer
Dimensions (w/h/d) 19cm by 30.5cm by 16.5cm
Weight 5.3kg
Frequency response 70Hz to 20kHz, ±3dB
Nominal impedance 11Ω
Sensitivity 83dB SPL (2.83V, 1m)
Maximum output 95dB for a pair at 2m
Bass/midrange 110mm
Tweeter 19mm dome tweeter
Recommended amplifier power 25 to 50 watts unclipped programme
Price per pair. Stands are extra.
