Ortofon

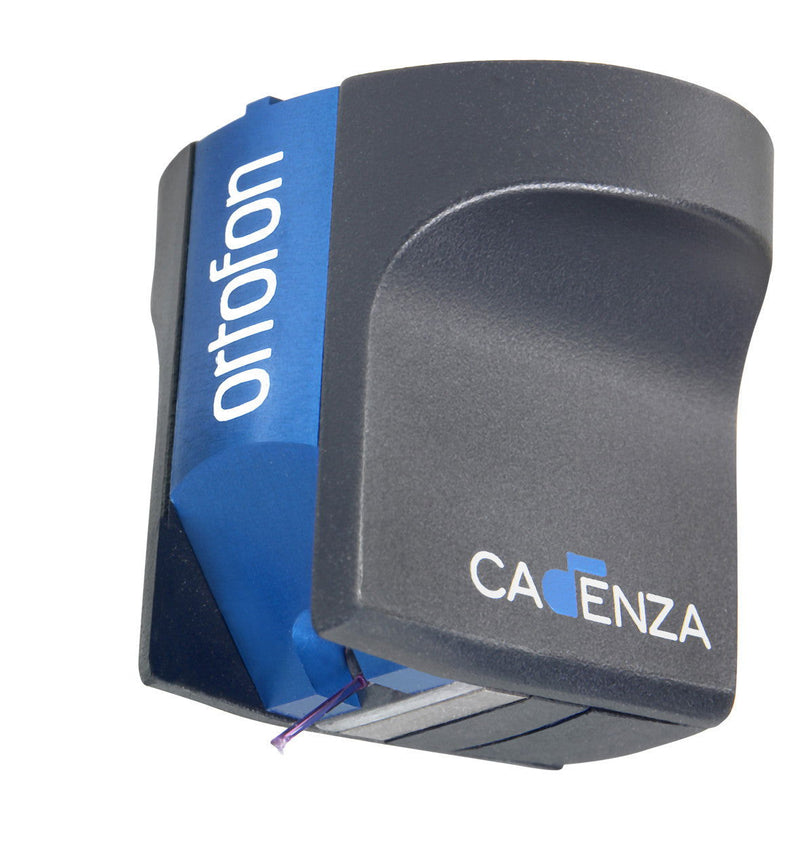

Ortofon MC Cadenza Blue Cartridge

  • Ortofon MC Cadenza Blue Cartridge - Alma Music and Audio - San Diego, California
  • Ortofon MC Cadenza Blue Cartridge - Alma Music and Audio - San Diego, California

Ortofon

Ortofon MC Cadenza Blue Cartridge

  • Description
  • Gallery

Cadenza Blue is true to the music with a tremendous clarity.

The Cadenza Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever.
The coils are made from 6NX (99.9999 %) pure silver wire.
An improved winding process on the armature allows a better channel balance.

The soundstage of Cadenza Blue is wide open and grandiose straight out of the box. Micro dynamic and ambience will be evident when listening to complex compositions. It reaches a very high degree of definition in the perspective, which is very present.

The Cadenza series

At Ortofon we constantly look for new technology to be used in our products and push the performance of existing technology. Thus we assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among our most popular cartridges. Nevertheless Ortofon decided to develope a new cartridge series that is even more ambitious.

By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, we have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support our customers, who have an extended interest in micro groove mono records.

Each of the five Cadenza Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

  • MC Cadenza Mono is a true mono cartridge for playing mono microgroove vinyl records
  • MC Cadenza Red delivers open, dynamic sound with a touch of warmth
  • MC Cadenza Blue adds more dynamics and resolution, sounds more open and reproduces more details
  • MC Cadenza Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
  • MC Cadenza Black is the best of everything, true to the groove with resolution and accurate insight into each recording

MC Cadenza Blue Technical data

Output voltage at 1 kHz 5 cm/sec - 0,5 mV
Channel balance - < 1,2 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at -3 dB - 20 Hz - 50 kHz
Frequency response 20 Hz - 20 kHz - +2/-1
Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
Compliance, dynamic, lateral - 12 μm/mN
Stylus type - Nude FG 70 on Ruby cantilever
Stylus tip radius - r/R 6/70
Tracking force range - 2,2-2,7 g (22-27 mN)
Tracking force recommended - 2,5 g (25 mN)
*) Typical value

Tracking angle - 20º
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - 50-200 Ohm
Cartridge body material - Stainless steel Aluminium
Cartridge colour - Blue/Black
Cartridge weight - 10,7 g

Download the MC Cadenza userguide

Download the MC Cadenza brochure

Review quote MC Cadenza Blue

Hi-Fi News March 2010
Reviewed by Steve Harris

"...if you want a cartridge to give you detail, space, integrity and vitality and fresh insights into every old-favourite LP you put on, the Cadenza Blue will do just fine... "
