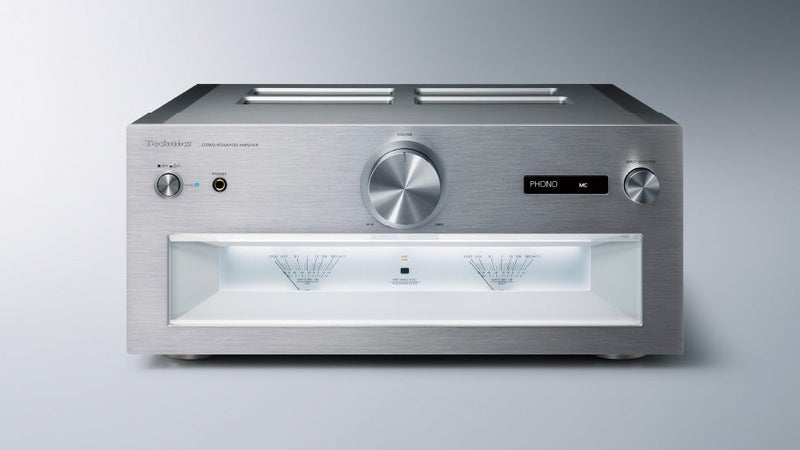

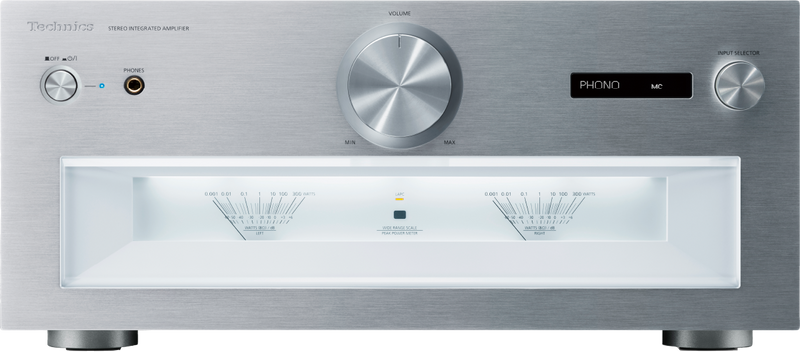

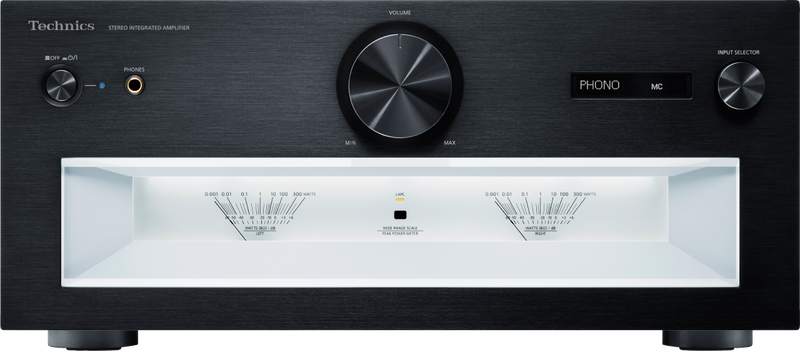

Technics SU-R1000 Reference Integrated Amplifier
Technics continues to pursue the ideal sound by challenging new sonic dimensions realized by a full digital amplifier.
Magnificent energy and dynamic sound
A Technics full-digital amplifier that has evolved and soared to new heights
JENO Engine
ADCT (Active Distortion Cancelling Technology)
The Active Distortion Cancelling Technology newly developed by Technics accurately extracts and removes distortion in the power output stage which is generated by the speaker’s counter electromotive force and voltage drops. In the Hi-Fi audio market where an unlimited number of audio systems can be configured by combining various products, high-end audio amplifiers need to optimally drive a diversity of speakers. The Active Distortion Cancelling Technology accurately extracts distortion by determining the difference between the speaker terminal output and JENO output and then applies correction to the output digital signal, thus correcting the conventional digital amp system. This provides powerful speaker driving force and acoustic energy while offering the superior benefits of a digital amplifier, such as low noise, precise sound image and expansive sound ambience, regardless of the types of connected speakers.
Advanced Speed Silent Power Supply
The SU-R1000 uses a switching power supply system to ensure a stable supply of voltage and current required by the digital amp. In a conventional switching power supply system, the ON time of the switching operation was controlled in order to stabilise the voltage, and this causes the switching frequency to fluctuate according to the load, resulting in a modulation noise to affect the sound quality. The Advanced Speed Silent Power Supply has eliminated this noise by fixing the switching frequency in the 400kHz band. Furthermore, a Super Low Noise Regulator is provided in the later stage. This prevents the decrease of regulation resulting from the fixed switching frequency and impedes the mixing of noise component into high frequencies. The result is a high-response power supply that results in the best performance from the digital amplifier.

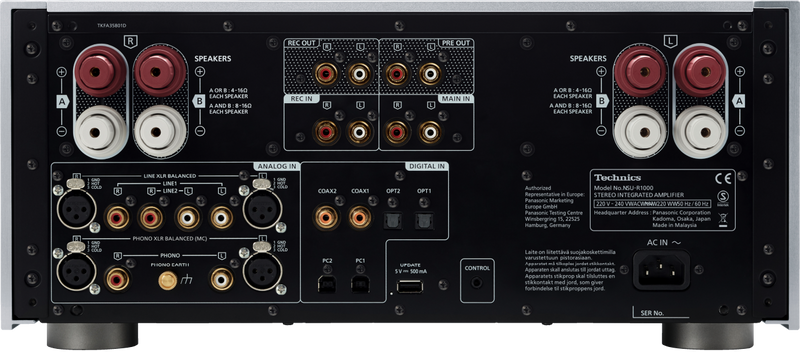

High-grade Digital/Analog I/O Circuit
The phono input section and analogue input section feature a full-discrete circuit design. Technics has realised an ideal, symmetrical circuit layout and performed meticulous tuning. The new circuits prevent interference between the right and left channels and achieve excellent channel separation. Furthermore, the phono input section and XLR input section employ completely balanced transmission to ensure high-purity signal transmission with minimum effect of noise. The USB input circuit in the digital input section is equipped with a capacitor of high-quality ruby mica and a power conditioner with nonmagnetic carbon film resistors for blocking electrical noise e.g. from a PC and for minimising the effect of external noise. The A/D converter incorporates a high-performance chip made by Asahi Kasei Microdevices (AKM) for high-precision A/D conversion. Thus, the SU-R1000 reproduces outstanding sound quality from any analogue or digital input sources.
Intelligent Phono EQ
The Intelligent Phono EQ mounted in the SU-R1000 utilises the sound quality improvement technology for DSP, which Technics has accumulated through the development of LAPC, in order to realise high sound quality not possible with analogue Phono-EQ. This technology consists of three parts: 1. Accurate EQ Curve, 2. Crosstalk Canceller and 3. Response Optimiser. These functions can be turned ON/OFF to suit the user’s preference.
Accurate EQ Curve – Made possible by hybrid analogue/digital circuit design
An accurate EQ curve is achieved by a hybrid analogue-digital system. The high-gain low-pass filter (LPF) performs analogue processing, while high frequencies are raised after the A/D conversion. The use of the 40-dB LPF(Low-pass filter) in the analogue region suppresses the bit loss during digital filter processing, and high frequencies are raised with high accuracy in the digital region to achieve a high S/N ratio.
Crosstalk Canceller - For measurement and improvement of crosstalk characteristic unique to each cartridge
This function measures the crosstalk characteristic of the installed cartridge by using the crosstalk measuring signal recorded on the Calibration Record bundled with the SU-R1000. It then performs reverse-correction using the built-in DSP to achieve significant improvement of the crosstalk characteristic. This results in a more precise sound image and a wider sound ambience.
PHONO Response Optimiser - For correction of disturbance in cartridge frequency characteristics
This function measures the frequency characteristics of the installed pickup cartridge by using a TSP (Time Stretched Pulse) signal recorded on the bundled Calibration Record, and corrects characteristics disturbance. It corrects the effect of impedance matching between the pickup cartridge and the phono equaliser to reveal the true sound quality of the cartridge. This technology aims to improve sound quality by avoiding a selector such as a switch in the high-sensitivity phono input line for the removal of the possibility of noise disturbance.
