Our Reference range demonstrates the very best that can be achieved in accuracy and musicality. We are honored that these models are some of the most awarded loudspeakers in the world.

They combine advanced materials with cutting edge science and engineering. They are designed without compromise, with the singular aim of transporting listeners into the heart of the music.

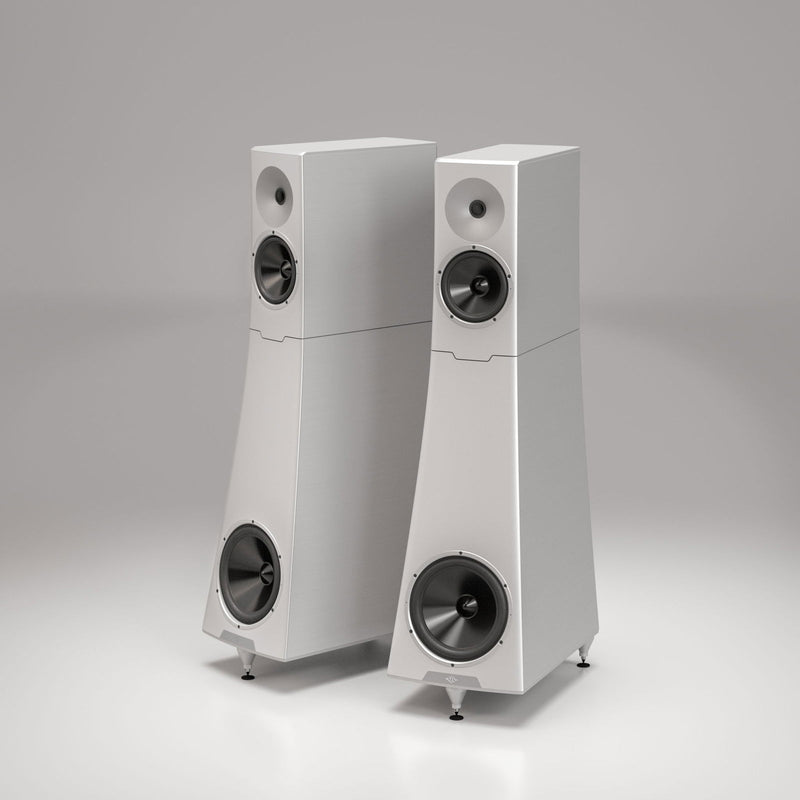

Hailey 3 delivers the life-like, natural sound which is the hallmark of YG, combined with an effortless sense of scale which is surprising for its compact size. This ultra-high-end loudspeaker mirrors the technologies of the Sonja 3 in a more compact cabinet. The result is an astonishing sonic performance combined with the best of engineering and craftsmanship.

The Reference speakers are structured from high- grade aerospace aluminum, machined in-house to an incredible precision. The speakers are meticulously hand-built by experts in our Colorado workshop.

The Reference 3 models include new technologies and design innovations based on novel theoretical models, detailed multi-domain simulations and thousands of hours of listening. The end result: loudspeakers which convey every nuance of emotion, each musical cue from the tiniest micro-detail to the visceral impact of the most thunderous crescendo.

An entirely new, hybrid Lattice tweeter uses a novel airframe in a specially-selected aerospace alloy, machined by YG Acoustics. It delivers exceptionally low distortion over a huge bandwidth, with wide angular dispersion to support a large sweet-spot.

Groundbreaking, third-generation Ultracoherent crossovers apply a deep understanding from simulation to deliver performance never before possible.

Our BilletCore drivers use advanced motors and cones machined in-house from solid billet, offering some of the highest performance and lowest distortion in any driver available today.

SPECIFICATIONS

SPEAKER TYPE

3-way passive floor-standing loudspeaker

DRIVERS

Lattice hybrid tweeter with advanced airframe

18.5 cm (7.25”) BilletCore driver with advanced neodymium motor magnets

26 cm (10.25”) BilletCore driver with ultra-high field strength motor

CROSSOVER

Ultracoherent circuit with crossovers at 90 Hz and 1.75 kHz

Exceptional phase alignment: ±5° relative phase over range where driver relative output is within 20 dB

Optimized for phase alignment, phase slope and transient response

Custom capacitors, including pure metal foil models

Advanced resistors, including multiple foil resistors for exceptional imaging and transient response

Advanced, resonance-damped inductors including ultra-high area rectangular wire bass inductors

Computationally optimized layouts to minimize component interactions

RESPONSE

Usable output extends from 20 Hz to 40 kHz

Exceptionally low distortion throughout range

Excellent pair matching

SENSITIVITY

87 dB

IMPEDANCE

4 Ohms average

2.8 Ohms minimum

DIMENSIONS

120 × 33 × 54 cm (H × W × D)

48 × 13 × 21” (H × W × D)

WEIGHT

91 kg per speaker

200 lbs per speaker

FINISHES

Standard finishes are silver and black
Please contact us for other finish options
