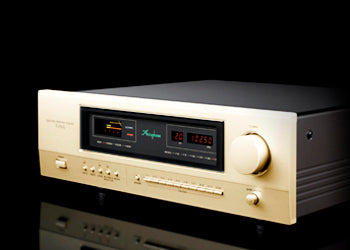

Accuphase T-1300 Reference FM Tuner

T-1300 At A Glance

• Type: FM stereo tuner with DDS (Direct Digital Synthesis) local oscillator
• RF front end: Double-tuned design for high rejection of strong off-channel interference
• IF filtering: Variable-bandwidth IF filter to manage adjacent-channel interference
• Multipath: Multipath reduction function
• FM demodulation: Digital FM demodulator for low distortion and low noise
• Stereo demodulation: DS-DC stereo demodulation implemented in DSP
• D/A conversion: MDS-type D/A converter at the analog output stage
• Presets: 20 station-memory presets
• Tuning control: Large front-panel tuning knob for manual station selection
• Construction: Machined-aluminum chassis; brushed-gold faceplate; high-carbon cast-iron isolator feet

The T-1300 is Accuphase's current FM stereo tuner — a category most high-end manufacturers abandoned a generation ago, and one Accuphase has continued to engineer because broadcast FM, where it is well-served by quality programming, remains a legitimate high-end source. The T-1300 brings a fully modern signal chain to that role: a Direct Digital Synthesis local oscillator for precise tuning stability, a digital FM demodulator for low intrinsic distortion, DSP-based stereo demodulation, and an MDS-type D/A converter at the output. The result is the cleanest FM reception Accuphase has produced — and one of the few statement-tier FM tuners still in current production worldwide.

DDS local oscillator. Conventional analog tuners derive their local oscillator from a voltage-controlled oscillator that drifts with temperature and supply variation, and that compromises tuning precision at the edges of the band. The Direct Digital Synthesis approach in the T-1300 generates the local oscillator digitally — the frequency is set by a numeric value rather than by an analog voltage. The result is tuning that does not drift, channel selection that does not require periodic re-centering, and stable performance across the full FM band regardless of environmental conditions.

Double-tuned RF front end. In an FM broadcast environment with multiple strong nearby transmitters, the front end of the tuner determines whether the desired station can be received cleanly or whether stronger adjacent signals overload the input stage. The T-1300 uses a double-tuned RF front end — two cascaded tuned circuits — which provides substantially better rejection of strong off-channel interference than a single-tuned front end. For listeners in urban environments where the FM band is dense with high-power broadcasters, this is the difference between usable and unusable reception of a desired station.

Variable-bandwidth IF filter and multipath reduction. The intermediate-frequency filter bandwidth is variable rather than fixed, allowing the tuner to trade audio bandwidth against adjacent-channel rejection on a per-station basis — a strong, isolated station can be received at full audio bandwidth; a weaker station with a nearby neighbor can be received with tighter filtering for cleaner audio. The multipath reduction function addresses the other characteristic FM impairment — signal reflections from buildings and terrain that arrive at the antenna at slightly different times and cause comb-filter coloration in the recovered audio.

Digital FM demodulation and DSP stereo separation. The recovered FM signal is demodulated digitally rather than through a conventional discriminator. Digital demodulation produces lower distortion and lower noise than analog demodulation because the operation is performed mathematically on a sampled signal rather than electrically on a continuously varying voltage. Stereo demodulation — the separation of the multiplexed L+R and L−R signals into the left and right channels — is implemented in DSP using the DS-DC method, again replacing the conventional analog phase-locked-loop stereo decoder with a numerical implementation.

MDS-type D/A converter at the output. The final stage that returns the digitally processed audio to analog form for the line outputs uses an MDS-type converter — the Multiple Delta-Sigma topology that defines Accuphase's digital sources. The same low-noise, low-distortion D/A architecture that runs in the DC-1000 and DP-770 is applied here at the tuner output.

Twenty presets and manual tuning. Twenty station-memory presets cover the working set of any serious FM listener. A large front-panel tuning knob — properly weighted, with a tactile feel — allows manual station selection and browsing of the band when the listener wants to explore. The user interface is consistent with the rest of the Accuphase line: instrument-grade controls, blue-illuminated display, brushed-gold faceplate.

Where the T-1300 sits in the line. The T-1300 is the right source for the listener whose broadcast environment offers high-quality FM programming — classical, jazz, public broadcasting, college radio — and who wants that programming heard through the same chain that handles disc and streaming sources. The tuner integrates directly with any Accuphase line preamplifier (C-2300, C-2900, C-3900S) or integrated amplifier (E-3000 through E-800S) and rounds out a complete-source Accuphase system alongside the DC-500 or DC-1000 DAC, the DP-1000 transport, and the DP-770 or DP-570S SACD/CD player.
