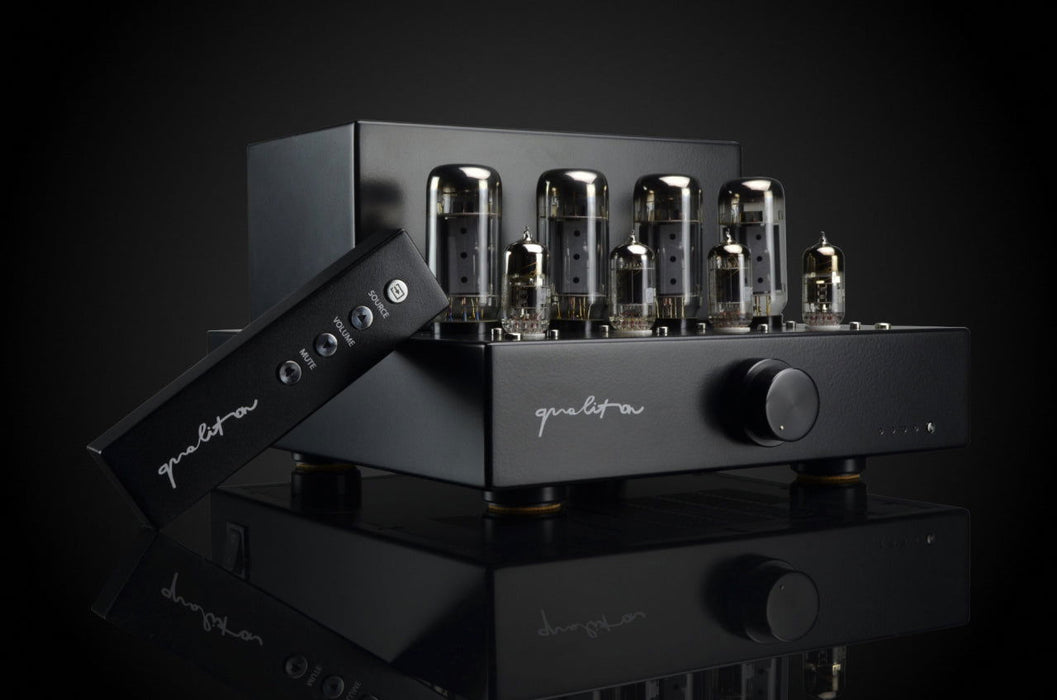

QUALITON A20i

Stereo, Class-A integrated amplifier featuring push-pull circuitry. The rated power output of the appliance is 20 W at the most, each side. The outputs at the rear panel can be connected to 8 Ω nominal impedance speakers. The design of the output transformers of the power amp enable to connect the amp with 4 Ω nominal impedance speakers as well. This entails a slight deviation from the parameters indicated in the technical data sheet.

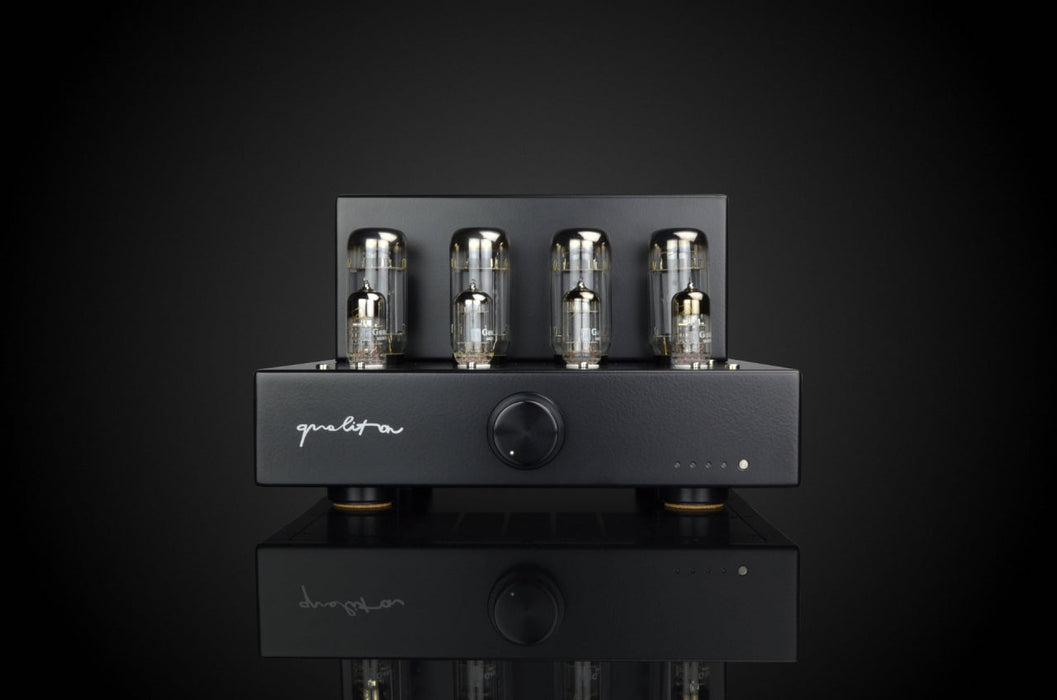

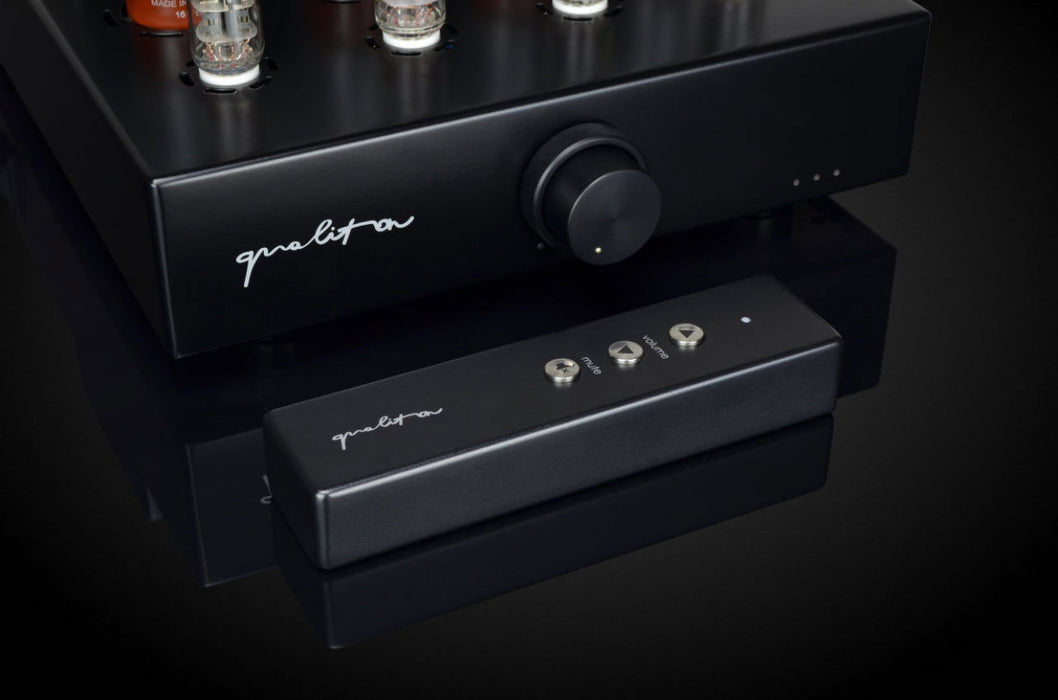

At the front panel, the volume control potentiometer and the input selector rotary switch are connected to the same shaft. Indicators informing about the actual state of the amp are located at the front panel too. It can be monitored whether the appliance is ready for operation (if so, the LED next to the volume control turns from red to white light). The user is also informed about the actual position of the input selector unit. The amp is made of solid, 1.5 mm thick, polished stainless steel sheet.

Warranty: 2 years

User's manual

• Name	Value
  Rated output power	2 x 20 W, stereo
  Total harmonic distortion	< 0.3% (f = 1 kHz, rated output power)
  Frequency response	25 Hz - 100 kHz (-3 dB, rated output power)
  Input sensitivity	230 mV, unbalanced input
  Number of input ports	3 unbalanced input per channel
  Number of output ports	1 output terminal pair per channel
  Gain	+34.8 dB
  Input impedance	10 kOhm
  Nominal load impedance	8 Ohm
  Output polarity	non-inverting
  Signal-to-noise ratio	> 90 dB; output noise less, than 1 mV
  Power requirements	150 W

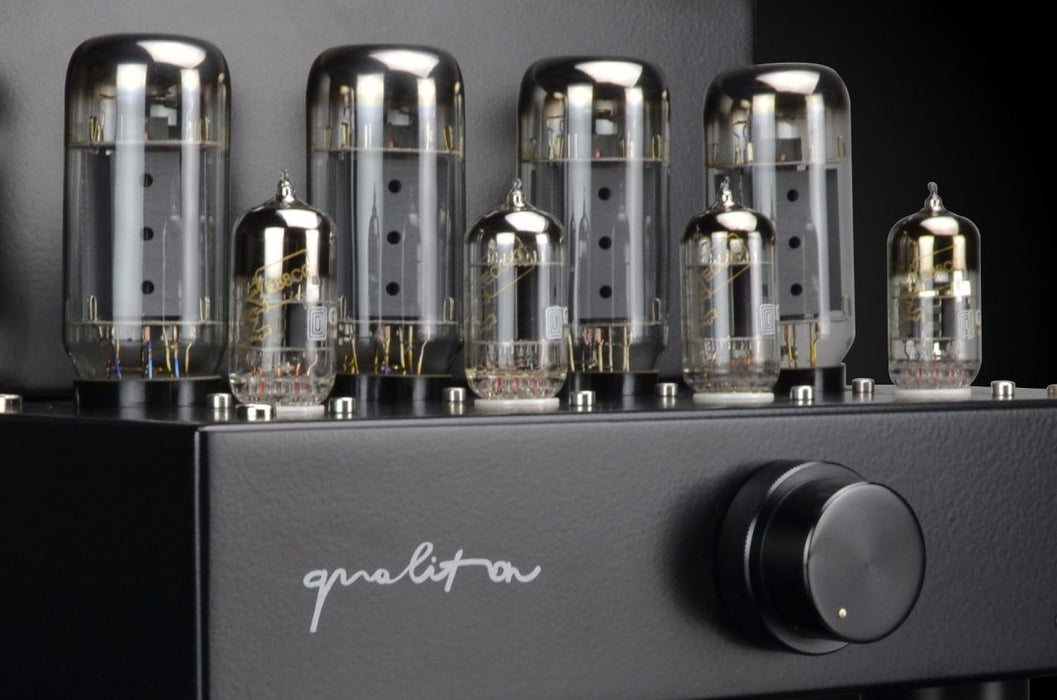

  Tubes required	4 x 5881; 2 x E88CC/6922; 2 x Tungsram ECC83
  Weight	16 kg
  Dimensions	27 x 18 x 30 cm
