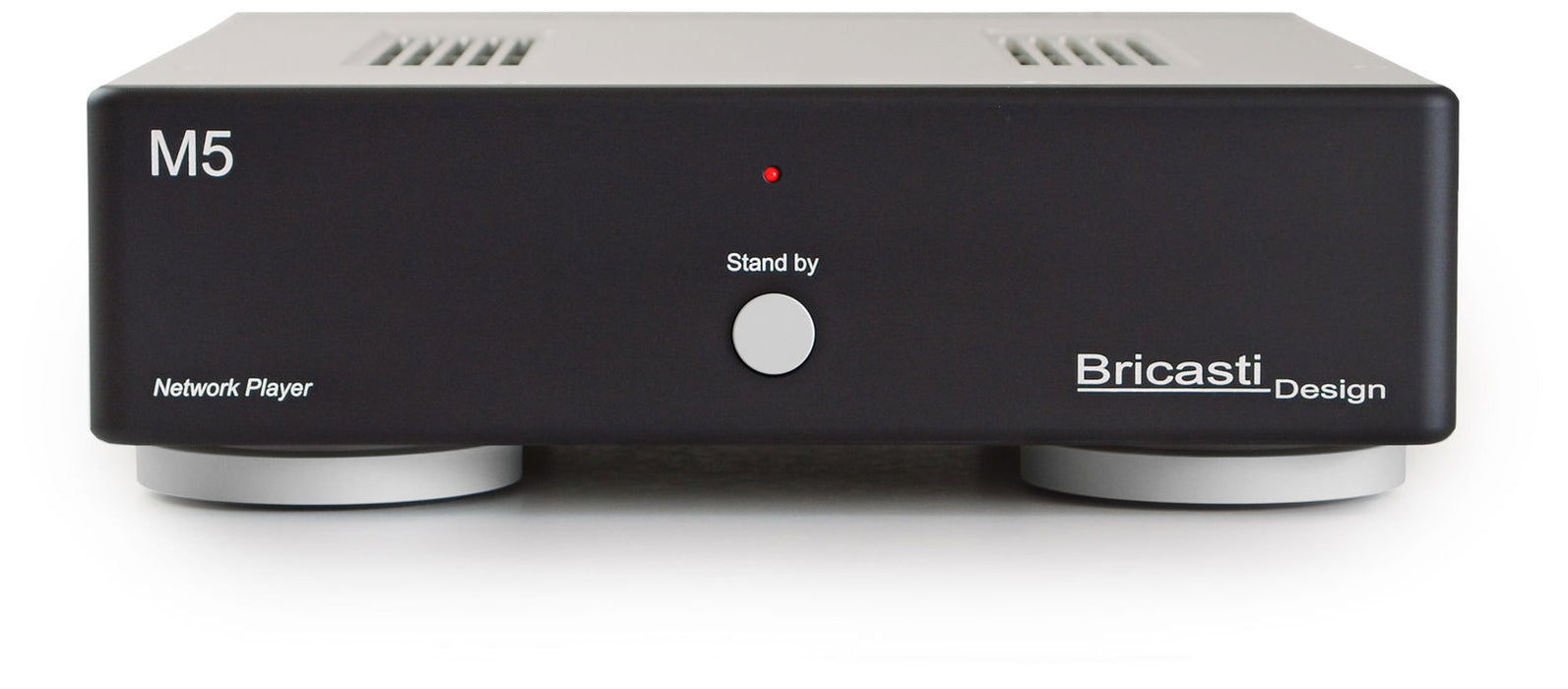

Bricast M5 Network Player
Model 5 Network Player
The Bricasti M5 network player is a network interface and media renderer that connects to your server via a local area network. With wide support for DLNA and other popular network protocols, the M5 delivers pristine lossless audio from your network to your Digital to analog converter; your music server can go anywhere you choose. The M5 connects to your LAN via Ethernet with SPDIF, AES outputs supporting sample rates up to 192k PCM, DSD 64 and DSD 128 over USB.
Play from anywhere
The M5 plays ethernet wired over your data network. In addition, audio listeners have become accustomed to having a computer server and additional storage drives directly in the listening environment. This can get messy with the added cables and power supplies that accompany them. With the M5 Network Player you can find new freedom from your server devices and place them anywhere on your network, away from your system.
Purity of sound
The M5 is a dedicated DLNA and Roon Ready audio media renderer. Simple, raw data is served to the M5 over the network from your NAS or server and only then does data become rendered as a real-time audio stream to its SPDIF, AES or USB outputs, connecting to your D/A like our M1SE to do its magic. Many computer servers play dual roles as archival systems and players but not when you have a dedicated player like the M5. With the M5 dedicated player the audio rendering is in the M5, and close to its D/A destination for a pure, noise free experience that we believe is exceptional.
A class unto itself
The M5 is built solid. The chassis is milled from solid aluminum with beautifully rounded corners all the way around. Inside the chassis lies the Bricasti media player and powered by the same linear power supply as found in the M1 digital to analog converter for superb low noise performance under the most demanding circumstances. The M5 takes the Network player experience to the next level, and no add-ons are needed with the M5, it comes complete.
| Finish | Anodized Aluminum. |
| Input | Wired Ethernet. |

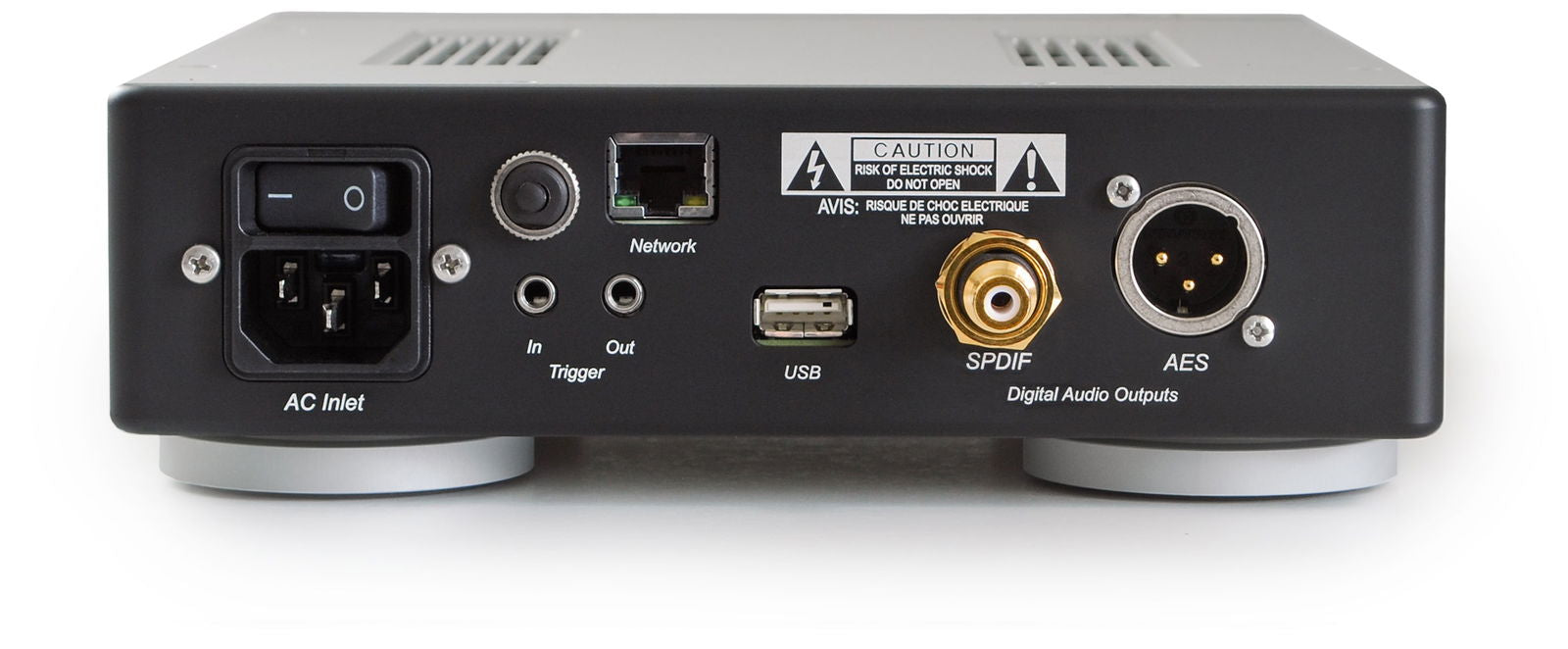

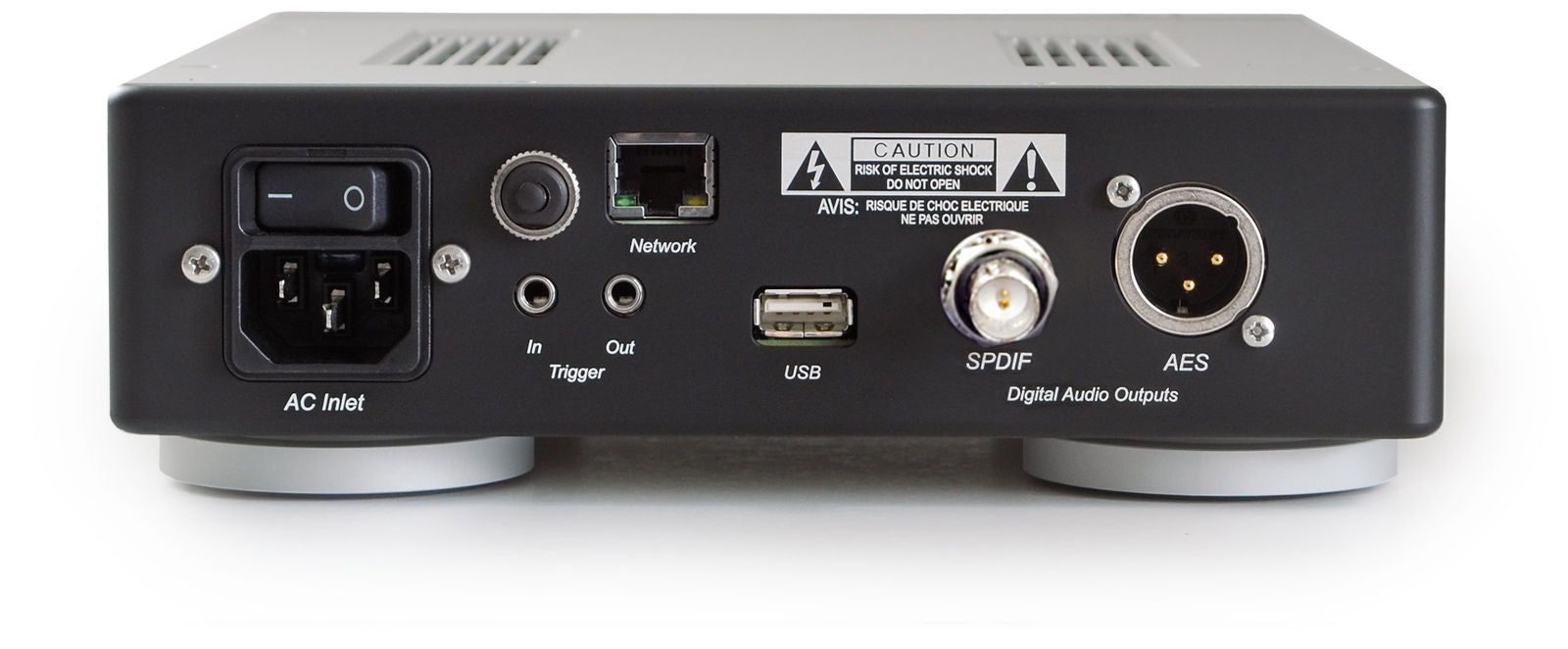

| Output | AES, standard SPDIF, RCA or optional 75 ohm BNC up to 192k PCM and DSD64. DSD64, DSD128 & DSD256 as DoP with USB. |
| Supported Formats | Over 100 different file types including: AAC, AIFF, ALAC, ATRAC, Au, AVI, Dolby Digital, DSDiff, DSF, DV, DVD, FLAC, FLV, IFF, M1V, M2T, M2V, M4A, M4V, Matroska, MJPEG, Monkey's Audio, MP1, MP2, MP3, MP4, MPC, Music Tracker files, Ogg, OpenMG, Opus, Quicktime, RealMedia & RealAudio, Sidplayer files, Speex, SWF, video game media files, W64, WAV, WMV & WMA, Xvid, 3GPP & 3GPP2. |
| Trigger In | 250ma. |
| Trigger Out | 12V. |
| Weight | 5 lbs. |
| Shipping Weight | 6 lbs. |
| Mains Voltage set at factory | 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz. |
