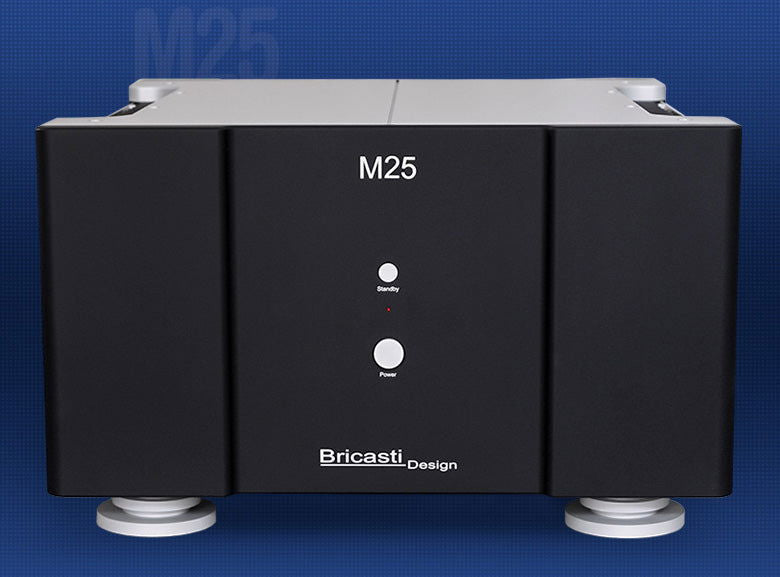

Model 25 Stereo Power Amplifier
The M25 stereo amplifier finds a special place in the Bricasti family of amplifiers through its implementation of a dual mono transformer design, essentially creating a hybrid of the traditional single transformer M15 stereo amplifier and its larger M28 mono-block brethren. The M25 is rated at 150 W / 300 W / 600 W per channel into 8ohms, 4ohms and 2ohm loads respectively.
The M25 integrates seamlessly with superb current delivery in a smaller footprint for those desiring additional power but lack the needed space for hefty amplifier pairs. Dual transformers render a beautiful sense of depth and dimension while a single-transformer design like the M15 stereo amplifier excels with impressive imaging and detail as both channels lock to a single transformer.
Like the entire line of Bricasti amplifiers, the M25’s fully differential balanced design delivers a fast, low distortion, open and harmonically accurate musical experience. Paired with any of the Bricasti line of fully differential digital to analog converters, a truly balanced system can be enjoyed.
The M25 is designed to play nice with your line of equipment. A unique feature like trim control lets you properly gain stage the M25, critical with todays digital sources driving the amplifier directly. Stillpoints isolation devices have been designed directly into the feet for maximum isolation from vibration.
|Total Harmonic Distortion||THD+N less than 0.005% 20hz-20kHz at full rated power into 8 and 4 ohms.|
|Power||150W into 8 ohms, 300W into 4 ohms, 600W into 2 ohms.|
|Frequency response||10hz-150kHz, within 0.5db.|
|Signal to Noise||greater than 85db at full rated power.|
|Power Topology||Fully Differential.|
|Balanced Input||XLR connector 200k ohm impedance.|
|Unbalanced Input||RCA connector 100k ohm impedance.|
|Shipping Weight||110 lbs.|
|Mains Voltage set at factory||100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz.|
|Trigger In||TRS connector for 5V external trigger.|
|Input Trim||0db, -6db, -12db,-18db of attenuation.|
|Power consumption||60W standby, 2W idle.|
|Warranty parts and labor||5 yrs limited.|
