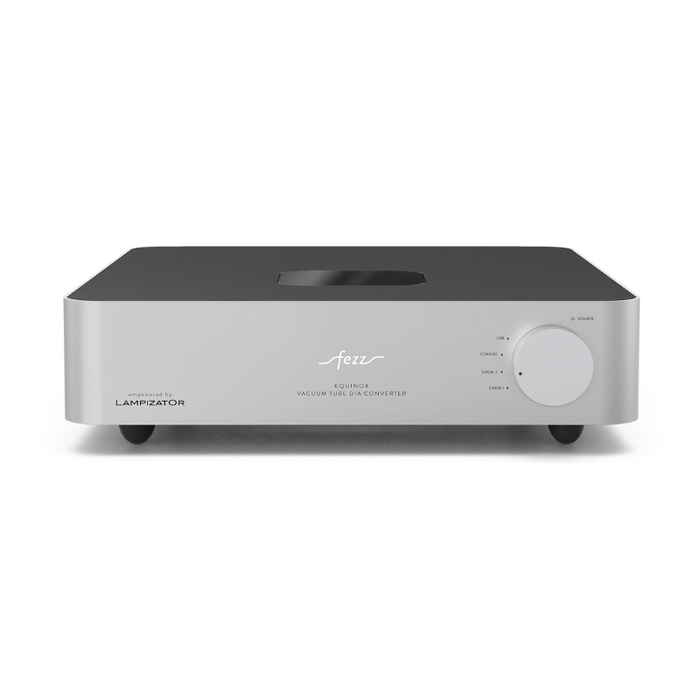

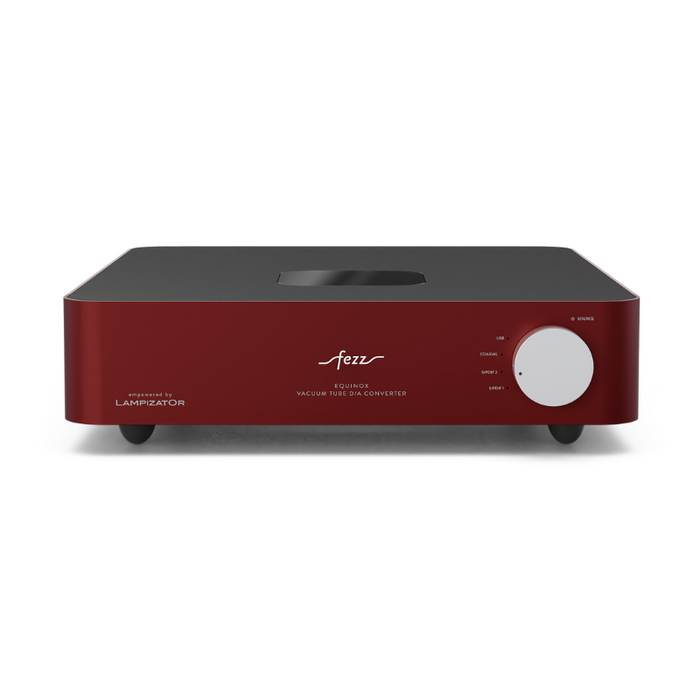

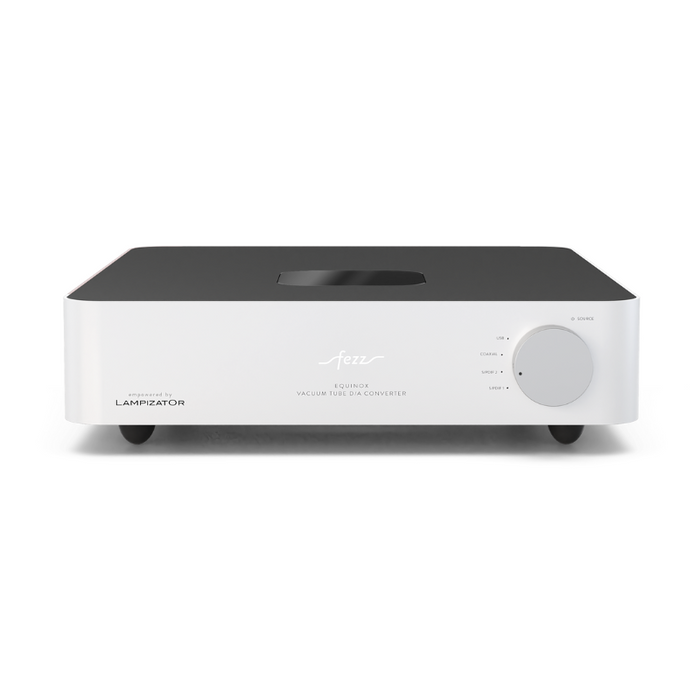

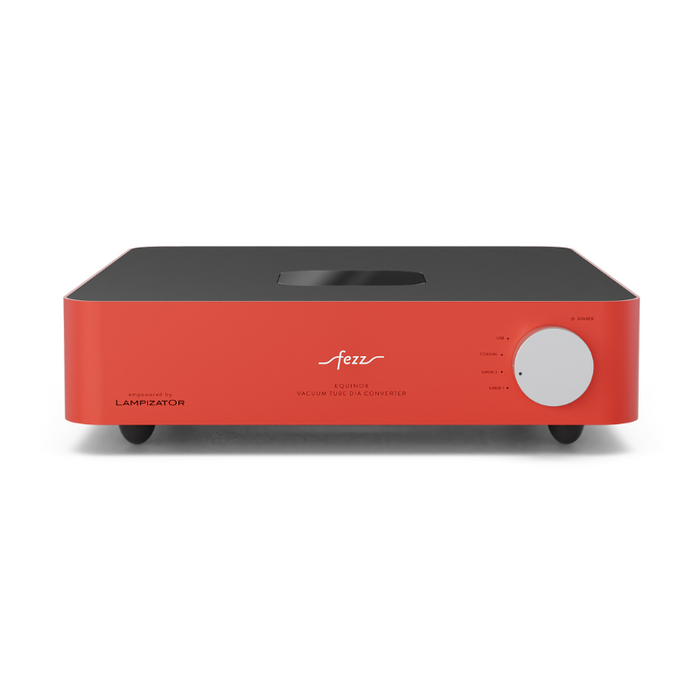

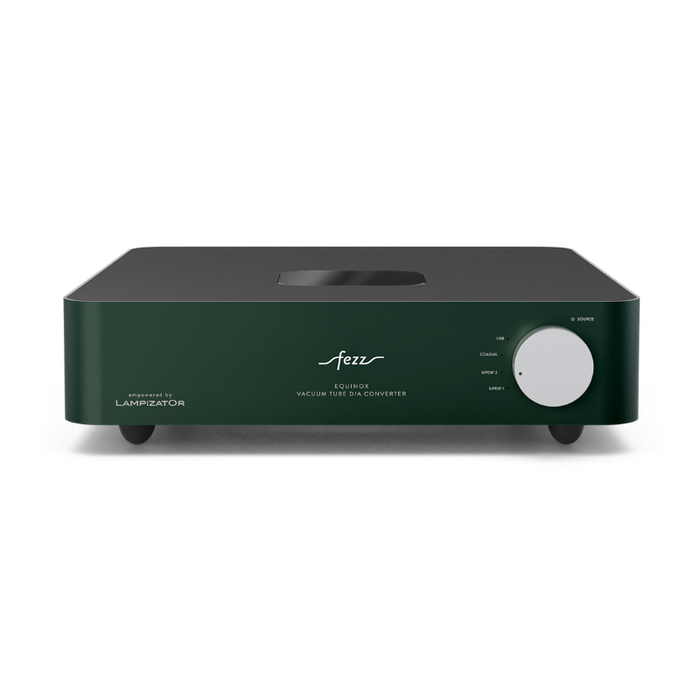

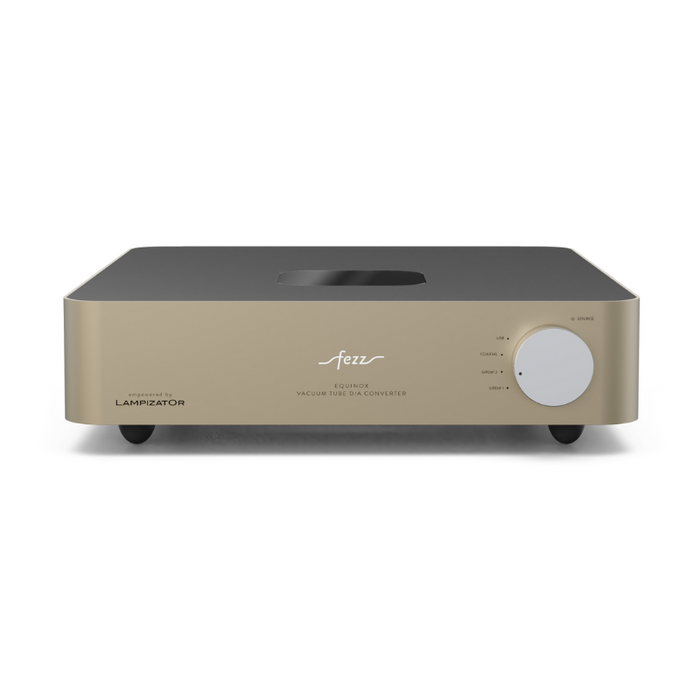

Equinox is the world’s only Lampizator licensed vacuum tube D/A converter designed by Łukasz Fikus. It is also the cheapest on a market D/A converter with the Lampizator logo. The unit is based on PCM1794 chipsets and 12au7 vacuum tube. Fezz/Toroidy engineers designed a dedicated, highest quality Supreme class toroidal power transformer for Equinox’s power supply. Device is equipped with 2 Toslink, 1 coaxial and 1 USB digital signal inputs. Thanks to the easily accessible tube, located
under the sliding glass on the top panel, units offers the opportunity to create and adjust sound tone according to your own preferences by replacing the tube without any hustle.
Tube type: ECC82/12AU7
Inputs: USB type B, 2x S/PDIF, Coaxial
Outputs: 1x RCA and 1x XLR
Opamp: Burr Brown PCM 1794
S/PDIF Receiver: AKM4118
PCM sampling rates: 32 kHz to 192 kHz, 16 to 24 bit, USB connection: up to 384 kHz and 32 bit
Oversampling: no
Harmonic distortions THD: < 0,05%
Power consumption: 30W
Net weight: 8 kg
Dimensions: 355x380x100mm
