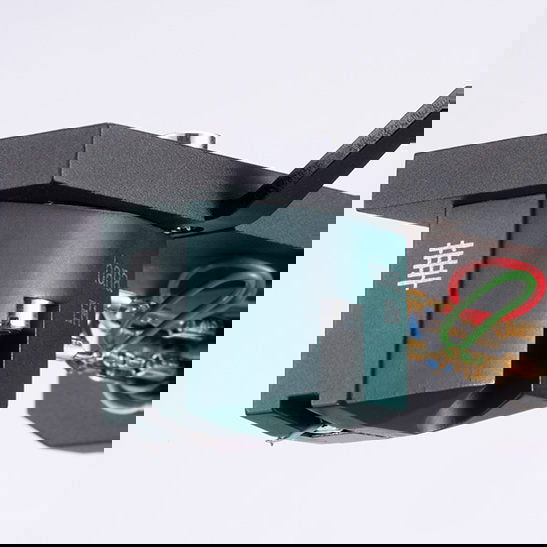

HANA EH and EL Moving Coil Phono Cartridges

by Hana
Original price - Original price
Original price
-
Current price

Hana EH and EL moving coil cartridges represent the best way to upgrade from “starter” cartridges that typically come packaged with turntables. Weighing in at only 5 grams, and possessing great tracking ability, the Hana EL and EH cartridges feature a distinctive moss green body which houses a sophisticated generator with an aluminum cantilever, and synthetic elliptical stylus.

Hana cartridges by Excel represent the best materials, including alnico magnets, cross-shaped armatures, and proprietary manufacturing processes. Hana has excelled at creating MC cartridges noted worldwide for their sound and value, which retain their “musical magic” regardless of their phono stage pairing.

Additional information

Output Voltage

EH: 2mV
EL: 0.5mV

Stylus shape

Elliptical

Internal ohms

EH: 130Ω/1kHz
EL: 30Ω/1kHz

Suggested Loading

EH: 47kΩ
EL: >400Ω

Weight

5.0 grams

Compliance

10 µm/mN

Tracking

2.0 grams

Retail

$475

Warranty

2 years
