MSB Technologies

MSB S202 Stereo Amplifier

  • Description
  • Gallery

Impressive performance.  Compact design.

Innovation. Redefined.

After  the astounding success and performance of the S500 Stereo Amplifier, we set our sights on expanding that sound to more systems. Trickle-down technologies incorporated into a more compact, lower-power framework resulted in the S202. It’s capable of meeting our DAC’s ultra high dynamic range head-on with optimized architecture in the critical areas of audio performance, power supplies, and ultra low-noise design. The S202 includes a fully modular design, matched impedance input stage and an all billet CNC case. The highest value amplifier we’ve ever created, the S202 redefines excellence and sets a new bar in the industry.

Design without compromise.

The S202 features a discrete design with a Class-A matched impedance input stage. The result is a product with minimized signal reflections, input noise, and distortion, while also maximizing power transfer and dynamic range in a zero negative feedback design. Thanks to a massive custom low-noise high-current toroidal transformer and rugged high-current output buffers, the S202 provides a transparent, holographic listening experience that’s completely fatigue free. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.

Specifications:

The S202 Stereo Amplifier

Static Power Consumption 90 Watts On
Standby power less than 2 watts
Operating Voltage Range 100V or 105-130V/210-260V configured at the factory.
Fuse 1/4"x1-1/4" 10A 250V Slow Blow

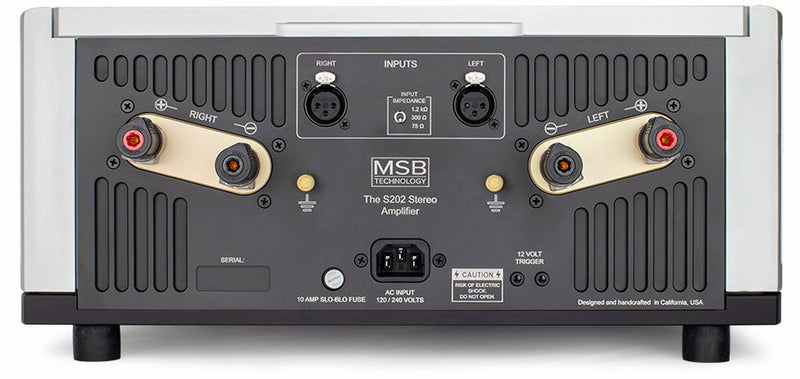

Input 2x XLR Input
Output 1x Binding post set per channel
Controls Input Impedance Switch
On/Off Button
Standby Button
Display Dimmer
12V Mode Switch
2x MSB 12V trigger port
Continuous Power Output (8Ω) < 1% distortion 200 W
Continuous Power Output (4Ω) < 1% distortion 380 W
Frequency Response (20 to 20kHz) ±0.03dB
Signal to Noise (20 to 22kHz) >130dB (>133dBA)
Equivalent Input Noise (22kHz BW) 0.65μV
Crosstalk @ 2kHz <-110dB
Gain (150Ω source impedance) 23.8dB
Input Impedance (User Selectable) 75Ω / 300Ω / 1.2kΩ
Output Impedance (20 to 20kHz) 0.01Ω
Topology
Input/Gain Stage - Class-A
- Double balanced
- Impedance matched
- Transformer coupled
- Fully discrete
- Independent power
Output Stage - Class-AB
- Balanced
- Medium bias
- Current gain only
Chassis Dimensions
Width: 16 in (404 mm)
Depth: 19 in (483 mm)
Height: 6.5 in (165 mm) Without Feet
7 in (178 mm) With Feet
Weight: lbs ( kg)
Product Feet: M6X1 Thread
3 or 4 Foot Configuration
Shipping Dimensions
Width: in ( mm)
Depth: in ( mm)
Height: in ( mm)
Weight: lbs ( kg)
Included Accessories
User Manual
Power Cord
4X Rubber Feet
