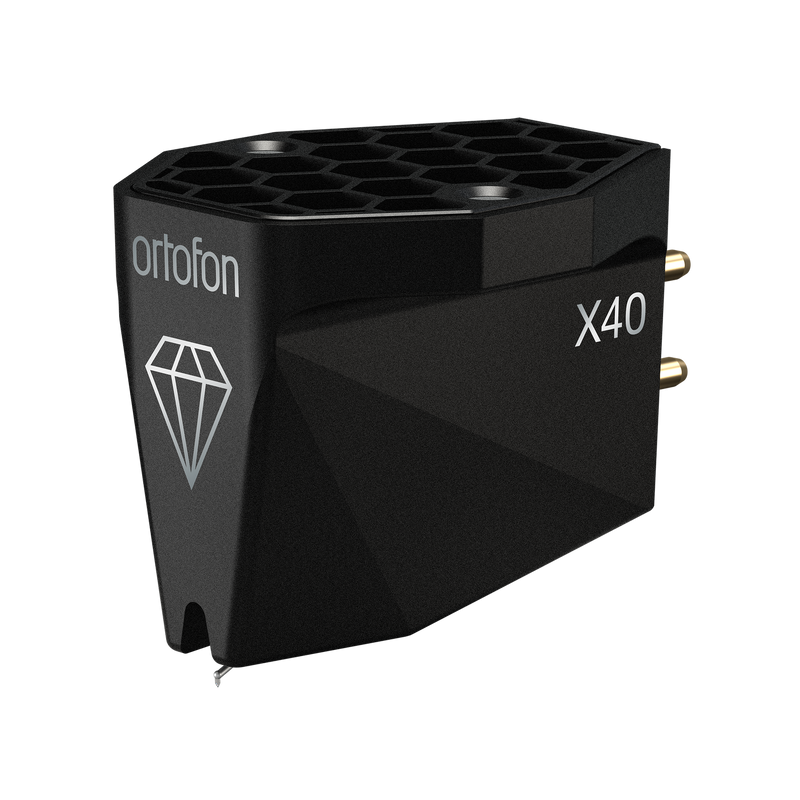

Ortofon MC X40 Cartridge

Ortofon MC X40 Cartridge

by Ortofon
-
-
Interested? Contact us!

Or call directly:

West Coast: (619) 243-6615
East Coast: (619) 243-4924

MC X40

MC X40 is the pinnacle of the MC X Series, designed for the most discerning audiophile. Featuring a nude Shibata diamond stylus mounted on a rigid and lightweight boron cantilever, this cartridge provides unparalleled transparency, speed, and responsiveness.

Honoured with StereoNet’s “Product of the Year” award in the Phono Cartridge category, the MC X40 is celebrated for delivering a “lovely, smooth, delicate and open sound that echoes the character of genuine high-end designs."


Exceptional Signal Clarity

Pure Silver Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Maximum Magnetic Efficiency

Magnet system

The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Precision Engineering for Unmatched Stability

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

MIM-Molded Honeycomb-Structured Core

Experience the depth.  Hear every detail.


At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

Modern Elegance with Distinctive Design

The Shape of Sound

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.4 mV
  • Channel separation at 1 kHz
    26 dB
  • Frequency response 20 Hz - 20 kHz
    +/-1 dB
  • Compliance, dynamic, lateral
    15 μm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Fine-Line
  • Stylus tip radius
    r/R 8/40 μm
  • Stylus suspensions
    Ortofon exclusive
  • Coil system
    Quad coils
  • Tracking force, recommended
    2.0 grams
  • Internal impedance, DC resistance
    6 Ω
  • Coil wire material
    High-purity silver
  • Cartridge weight
    8.6 grams
  • Recommended load resistance
    > 50 Ω
