QUAD Elegan 1 Bookshelf Loudspeakers

The QUAD Elegan 1 is a two-way bass reflex loudspeaker for stand mounting. It is the compact model in the Elegan series, designed for smaller listening rooms, apartments and dedicated two-channel systems.

Drivers and crossover

A 165 mm woven Kevlar cone covers bass and midrange. The cone is lattice-woven Kevlar treated with a self-damping resin. QUAD chose the material for its low mass, rigidity and controlled self-damping. The 25 mm fabric dome tweeter sits in a waveguide that controls dispersion to keep tonal balance consistent across a wide listening area. A Linkwitz-Riley crossover joins the two drivers at 2.9 kHz.

Cabinet

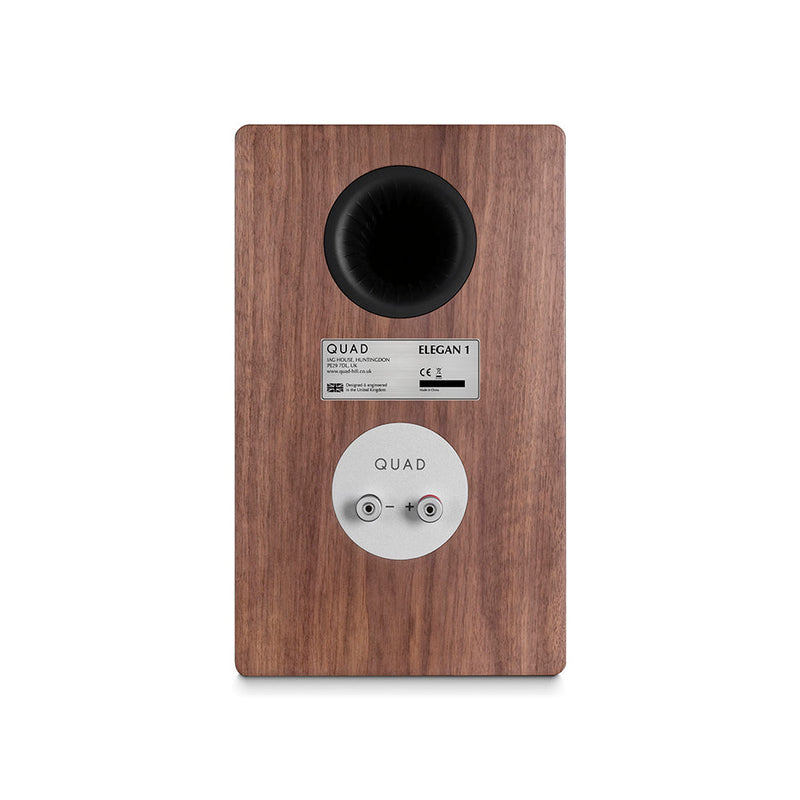

The cabinet is high-density MDF with internal bracing placed to reduce resonance, and it has an internal volume of 15.5 litres. The rear port uses QUAD's Airflow bass reflex design, with a profiled shape that reduces turbulence. QUAD rates bass extension at 44 Hz (-6 dB).

Setup

The Elegan 1 is intended mainly for stands and can also sit on a sturdy shelf or wall unit. Protective feet are included. Sensitivity is 86 dB, and QUAD recommends 30 to 150 watts of amplifier power.

Finishes

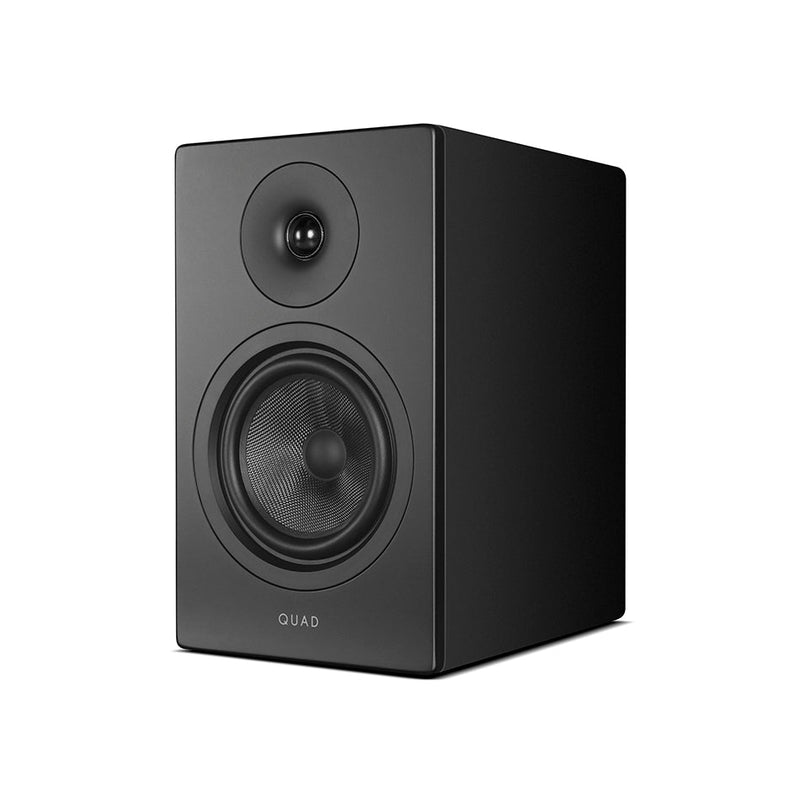

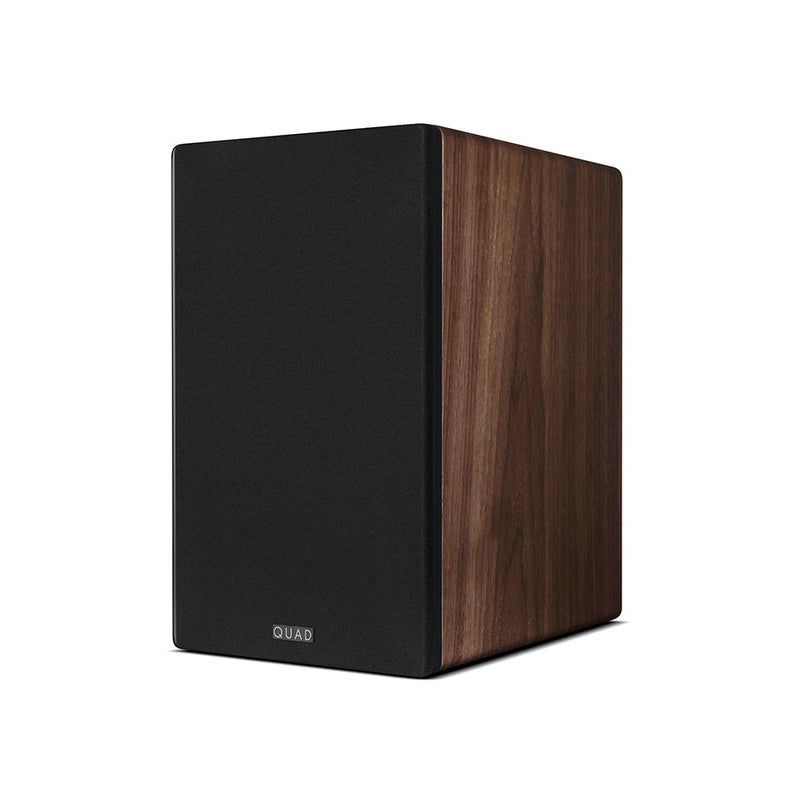

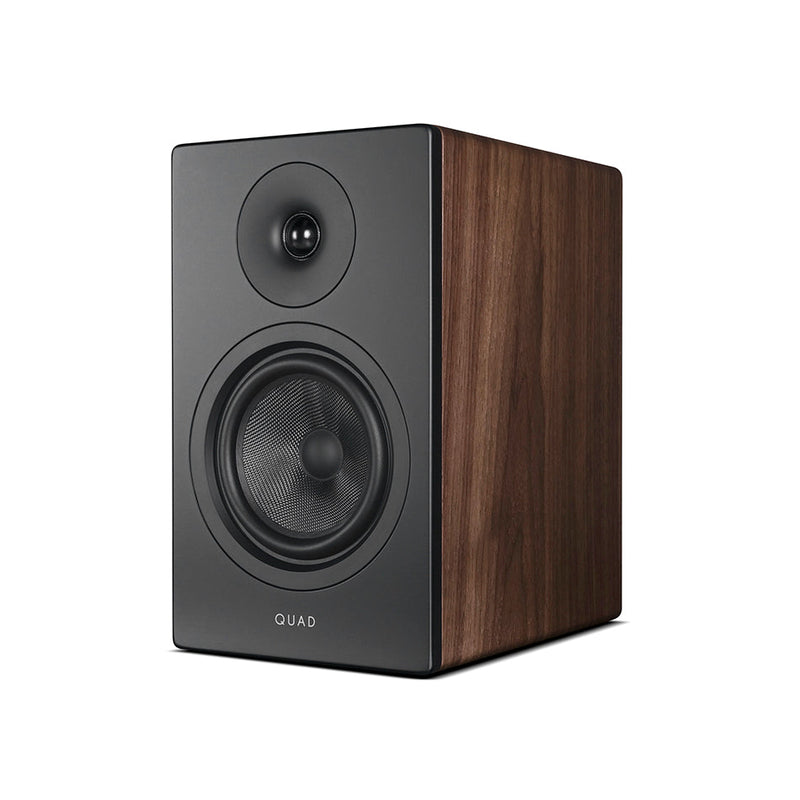

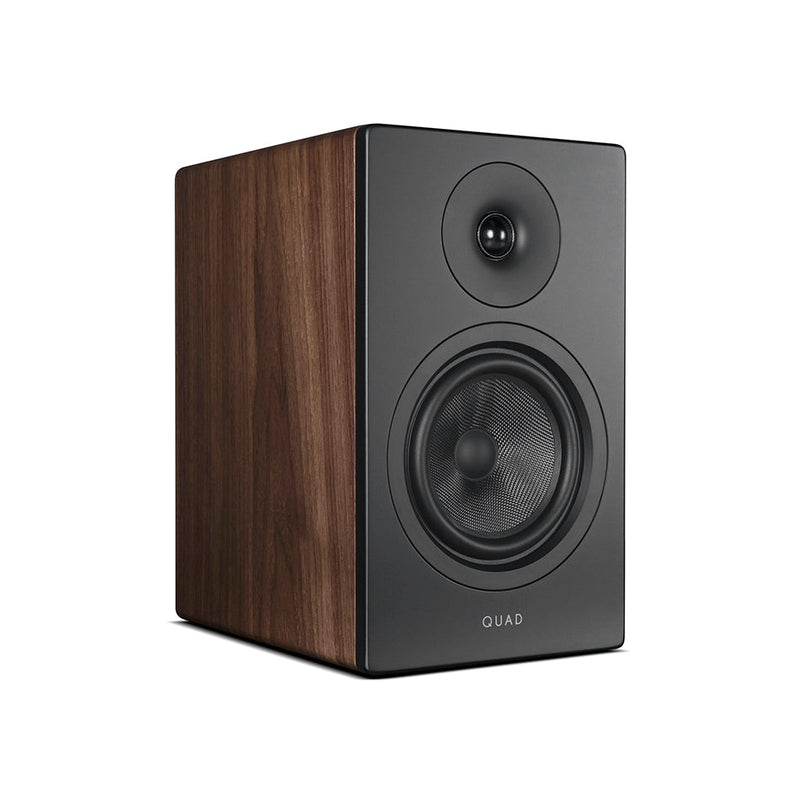

Two finishes are offered: matte black, or real walnut veneer with a matte black front baffle. The styling follows the design of QUAD's current electronics.

Specifications

• Type: 2-way bookshelf loudspeaker, bass reflex
• Bass/midrange driver: 165 mm woven Kevlar cone
• Tweeter: 25 mm (1 in) soft dome, in waveguide
• Crossover: 2.9 kHz, Linkwitz-Riley
• Frequency response: 56 Hz – 24 kHz (±3 dB)
• Bass extension: 44 Hz (-6 dB)
• Sensitivity: 86 dB (2.83 V @ 1 m)
• Nominal impedance: 8 Ω compatible
• Minimum impedance: 4.3 Ω
• Recommended amplifier power: 30–150 W
• Peak SPL: 102 dB
• Cabinet volume: 15.5 L
• Dimensions (H × W × D): 365 × 220 × 333 mm (14.4 × 8.7 × 13.1 in); height on plinth, depth includes terminals and grille
• Weight: 8.9 kg (19.6 lb) per speaker
• Finishes: Matte Black; Real Walnut veneer
• Included: Protective feet
