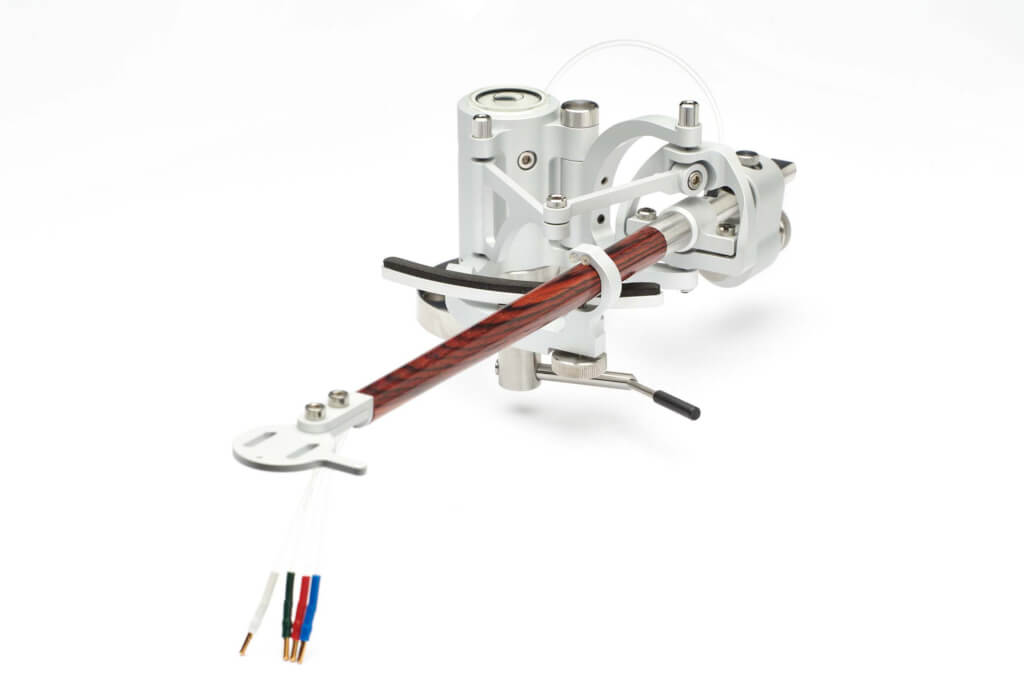

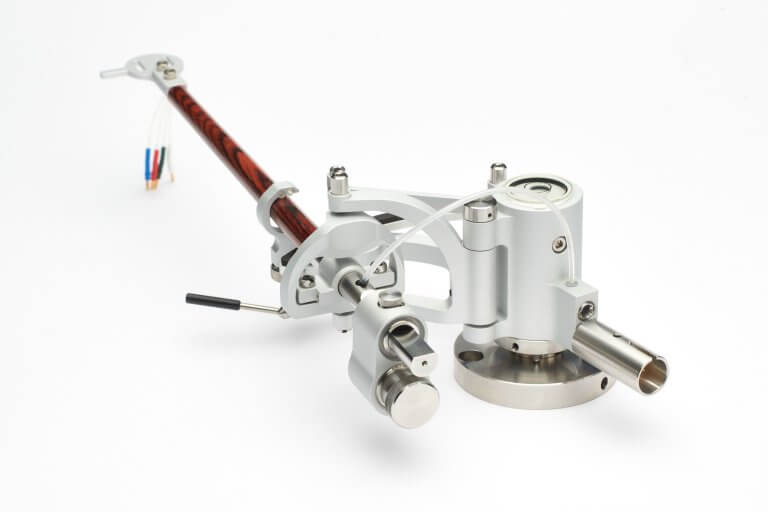

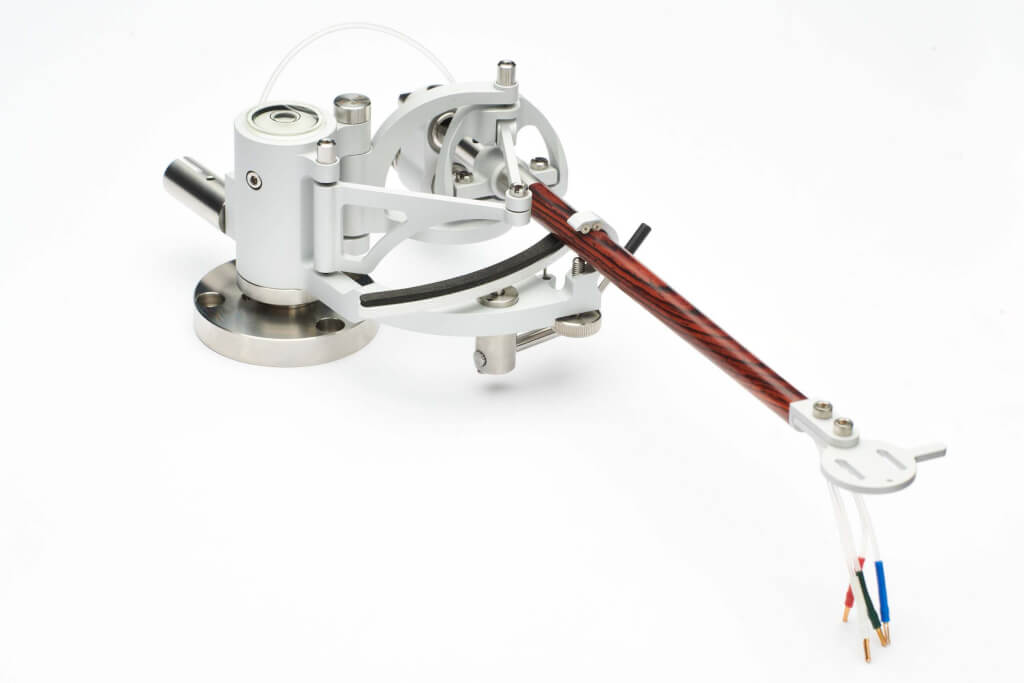

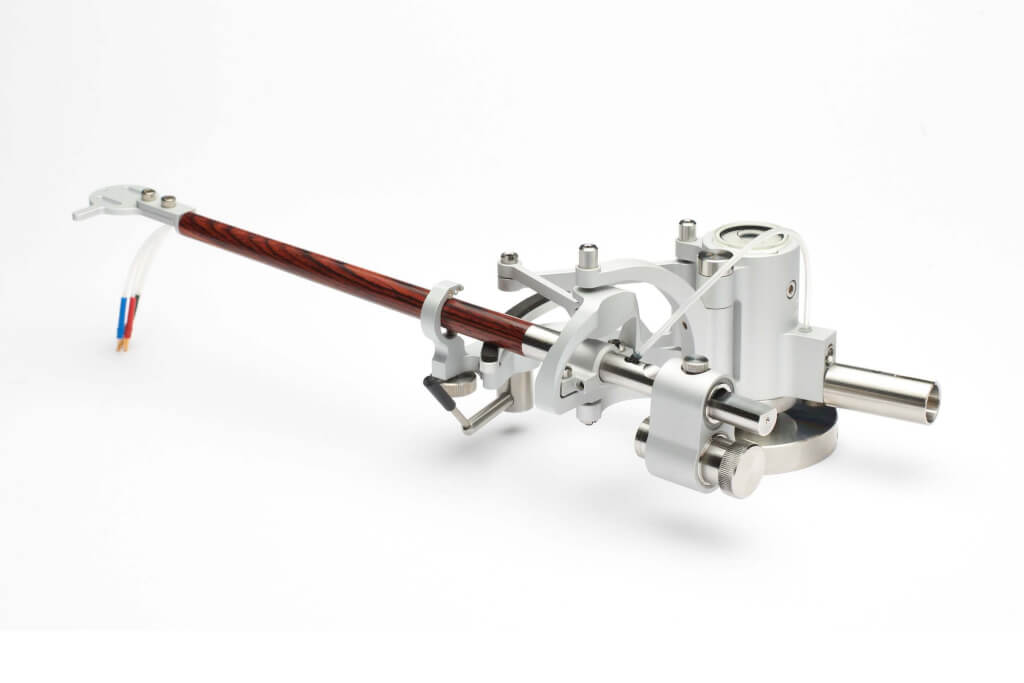

Reed 5A Tonearm

              Fig. 1

P1, O1, P3 – Thales’ semicircle,
P1-A1-P3, P1-A2-P3, P1-A3-P3 angles are 90⁰ each,
A1,1B1 = A2,1B2= A3,1B3 segments represent tonearm length,
1B – vertical axis of the tonearm,
1P2 – center of the circle, which is drawn through three points -1B1,1B2,1B3,- axis of rotation of the back link component
2P2 – center of the circle, which is drawn through three points -2B1,2B2,2B3,- axis of rotation of the front link component
1B1,2B1 = 1B2,2B2 = 1B3,2B3 – tonearm lever.
Armtube suspension system is similar to the one used in Reed 3P tonearm.
Tonearm’s back link uses low-noise ceramic rolling bearings.
Lever uses low-noise ceramic rolling bearing and rests on the sapphire – molybdenum carbide thrust bearing.
Sapphire – molybdenum carbide thrust bearings are also used for tonearm’s front link, vertical and horizontal axes.
Tonearm has VTA and azimuth setup and can be configured with Reed or SME (universal headshell connector) headshells.
To make sure tonearm setup is precisely horizontal, tonearm has integrated level and horizontal plane adjuster.
Comparing to regular pivot tonearms, Reed 5A does not require antiskating and has much less absolute tracking error (max. tracking error is +/- 4 Minute of Angle (MOA) (Fig.2). Pivot tonearms – approx. 1.2 – 2.5 deg. (Fig.3).
Comparing to other tangential tonearms, Reed 5A does not require any additional devices to work (e.g. compressors, electronic controllers), is compact and can be easily mounted on a wide range of turntables.

Fig. 2

Fig. 3

SPECIFICATIONS

SAMPLES OF FINISH

Pictures below are for illustration of finishing only; tonearm model may be different from described above.

ARMWAND WOOD SAMPLES

Approximate effective mass of Reed tonearm in grams. Armwand’s effective mass can be adapted to customer’s needs in a range of 8-16 grams.
