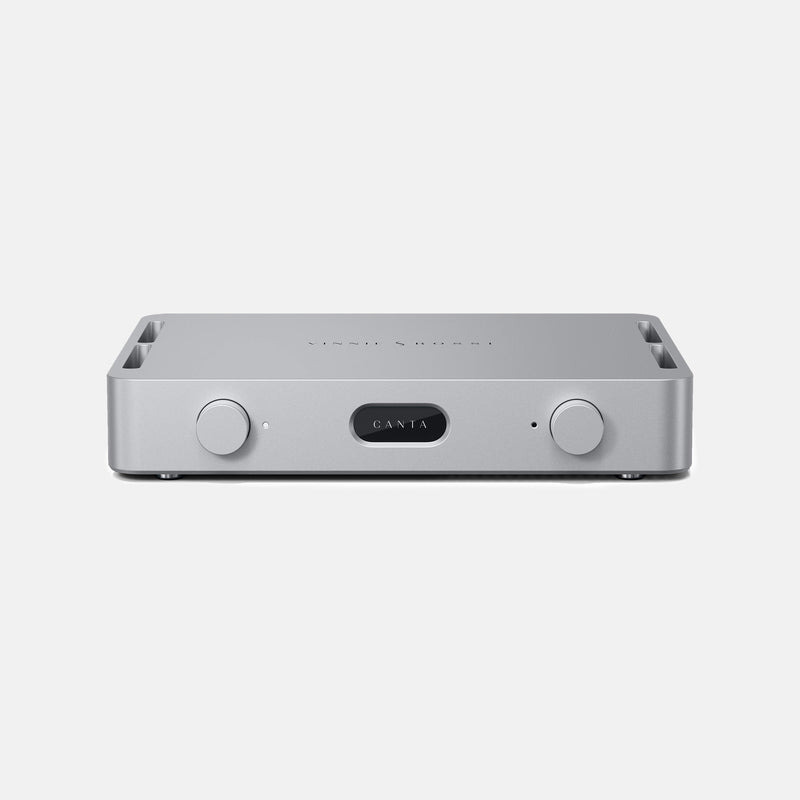

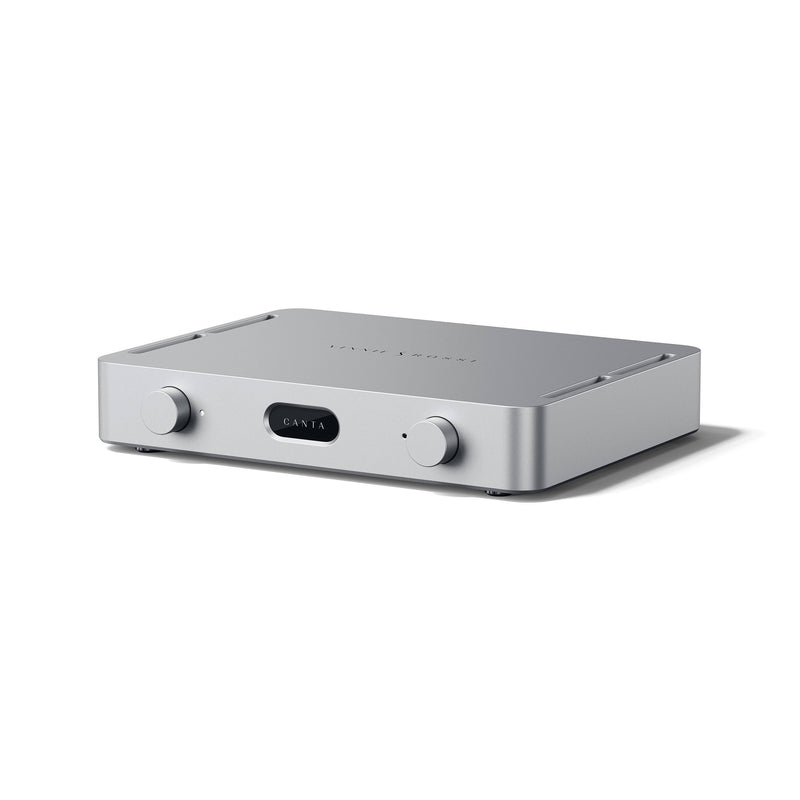

Vinnie Rossi CANTA Phono Preamplifier

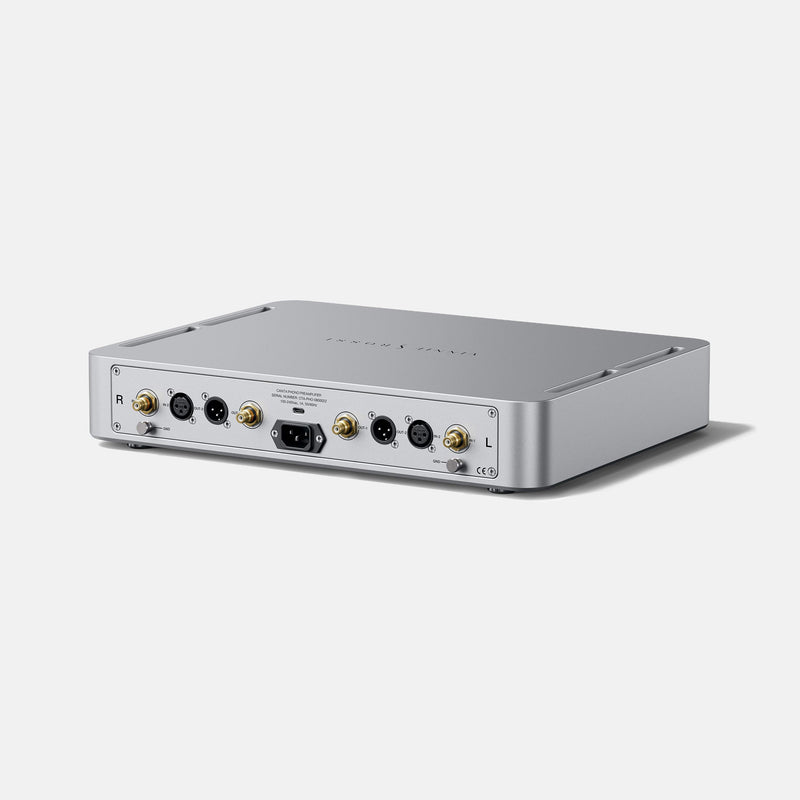

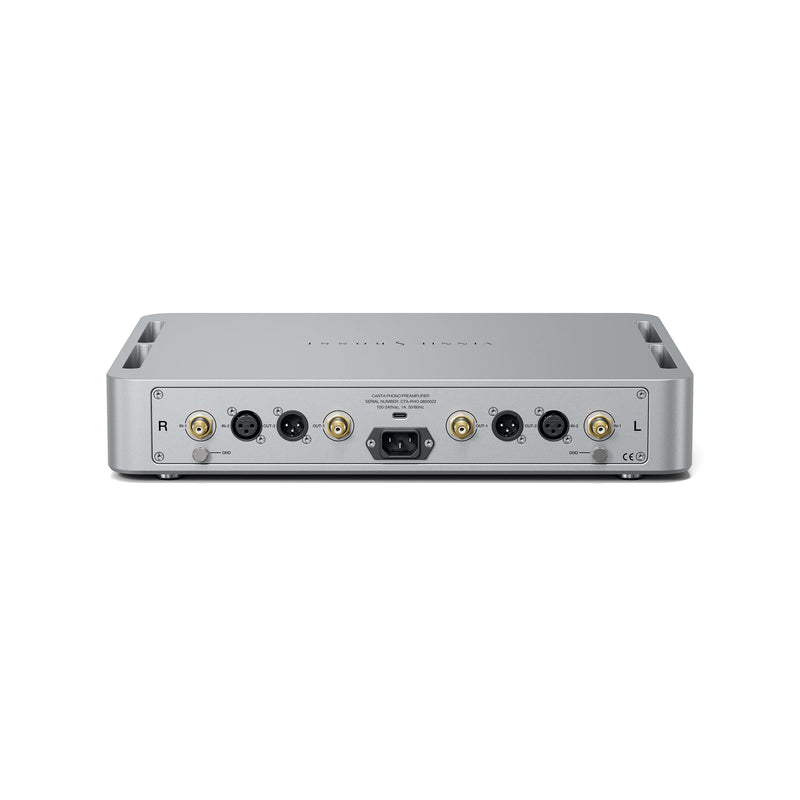

The CANTA Phono Preamplifier is a dual-mono phono stage for moving-magnet and moving-coil cartridges, with balanced XLR and single-ended RCA inputs and outputs. It is part of CANTA, a new series of components from Vinnie Rossi.

Circuit and power supply

The input stage is fully discrete: a custom Belleson JFET “YZ” balanced stage, of transconductance/transimpedance design, built for very low noise and distortion across a wide bandwidth. Left and right channels have independent circuitry to maximize channel separation. The power supply uses patented Belleson super-regulator technology.

Cartridge setup and filtering

Gain and cartridge loading are selectable for a wide range of MM and MC cartridges. They are adjusted through a high-resolution display, and settings stay in memory even when the unit is disconnected from AC mains. A switchable subsonic filter reduces low-frequency energy from warped records, bearing rumble and structural vibration, and limits loudspeaker cone excursion when engaged.

Chassis

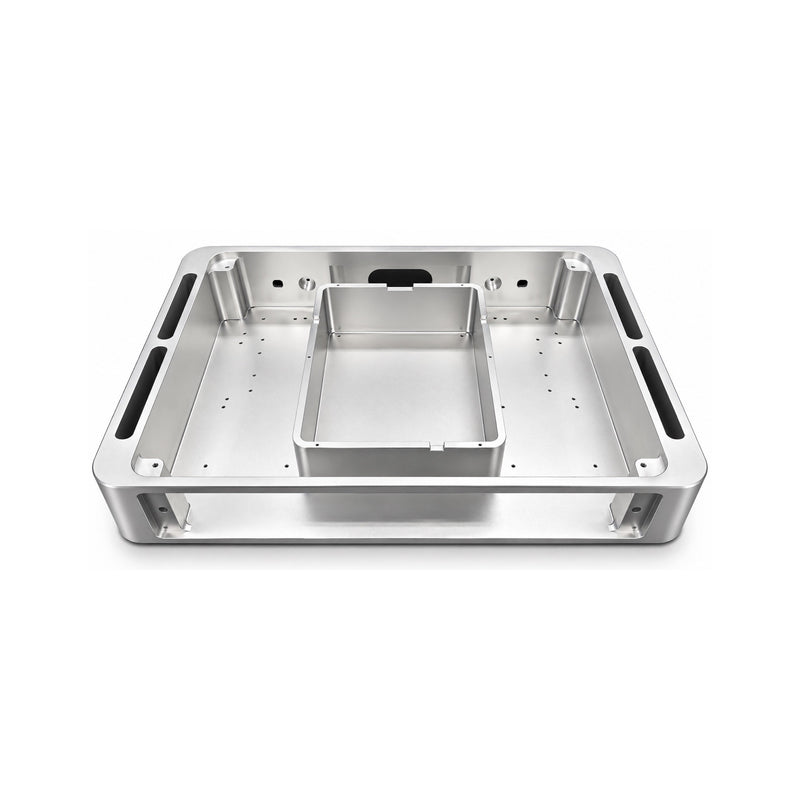

The chassis is CNC machined from a solid block of aluminum for rigidity, resonance control, shielding and grounding. The front panel uses Swiss rotary encoders, and the unit ships in an airtight, waterproof hard case.

Specifications

• Gain: MM 36, 40, 46 or 52 dB; MC 56, 60, 66 or 72 dB
• MM loading: 47 kOhm; 100, 200, 300 or 400 pF
• MC loading: 10, 15, 18, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100, 150, 180, 200, 250, 400, 600 or 1000 ohms
• RIAA accuracy: ±0.1 dB, 20 Hz–20 kHz
• Subsonic filter: switchable, third-order, 20 Hz
• Maximum output: 10 V RMS
• Output impedance: <100 ohms
• Dimensions: 16.25 x 12.75 x 2.75 in (413 x 324 x 70 mm)
• Weight: 22 lb (10 kg)
• Warranty: 10 years. Made in the USA
