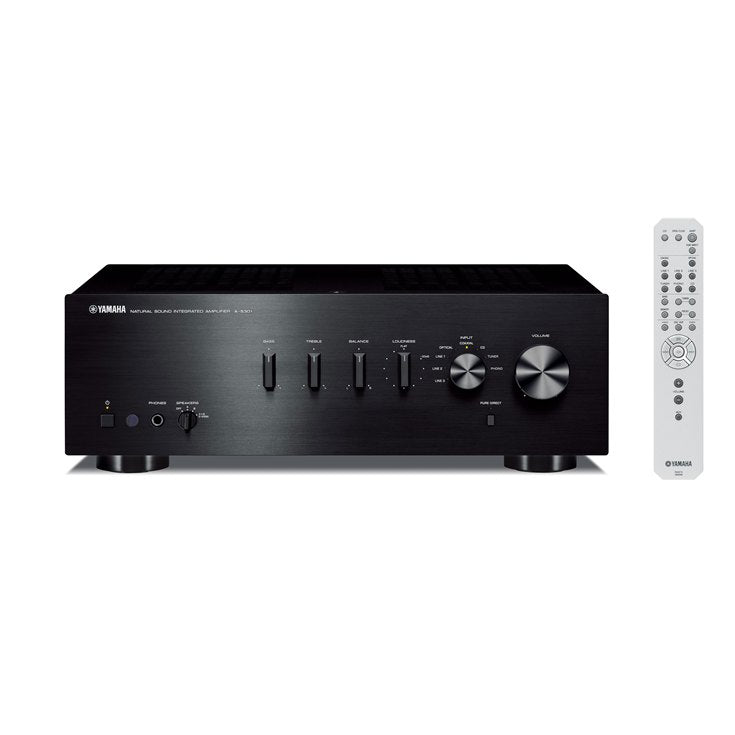

Yamaha A-S301 Integrated Amplifier

Yamaha has been building musical instruments and tuning concert halls since 1887, and that accumulated understanding of what music actually sounds like — not just what it measures like — lives in every circuit the company designs. The A-S301 is the entry point into Yamaha's current integrated amplifier line, but it carries the same foundational philosophy as the flagship: get the signal in, amplify it cleanly, and get out of the way. At $399.95, it occupies a price tier where most competitors treat the power supply and output stage as afterthoughts. Yamaha does not.

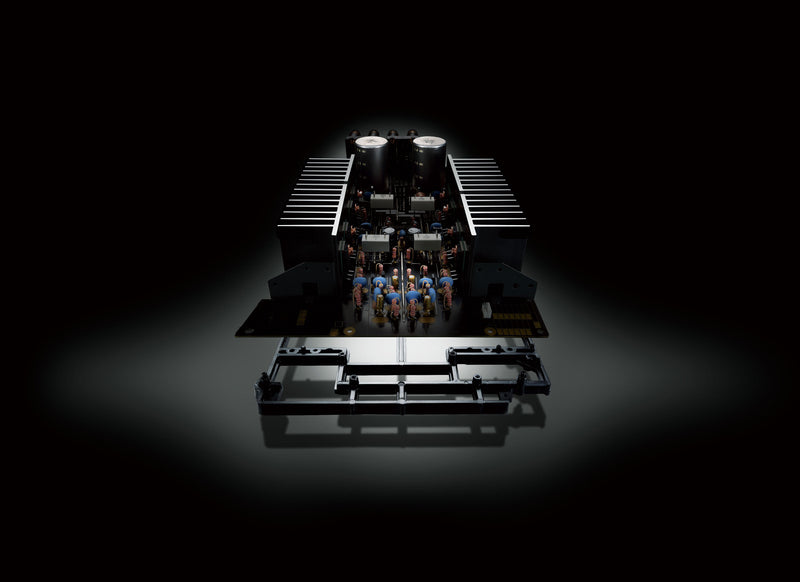

The circuit architecture is built around ToP-ART — Total Purity Audio Reproduction Technology — which organizes the signal path in a direct, symmetrical layout from input to output. The power transformer is custom-wound for this chassis and feeds 6,800µF block capacitors; the extruded aluminum heat sinks keep the output stage thermally stable without relying on a fan. Pure Direct mode bypasses the tone controls and reduces the signal chain to its shortest possible path, which you'll want engaged for serious listening. The phono stage accommodates MM cartridges, meaning you can run a turntable directly without a separate phono preamp. Digital inputs — one optical, one coaxial — let you route a TV, Blu-ray, or streamer through the A-S301's analog output stage rather than through a thin built-in DAC downstream.

The A-S301 is a pragmatic machine with a musical result: enough power at 60 watts per channel to drive most speakers to realistic levels in a typical room, and enough quality in the power supply and output stage to let those 60 watts sound like 60 watts. If you are assembling a first serious system or replacing a receiver that you've outgrown, this is where to start with Yamaha.

ToP-ART Circuit Architecture. The I/O direct symmetrical design keeps the signal path as short and balanced as possible from input to output, which means less opportunity for noise to couple in and fewer phase anomalies to compound across the frequency range.

Pure Direct Mode. Engaging Pure Direct bypasses the tone controls and loudness circuitry entirely, so the signal travels the shortest possible route through the amplifier. When the source material is good, Pure Direct is where the amplifier sounds most transparent.

Phono Input Included. An MM phono stage is built in — no separate phono preamp required to run a turntable. At this price point that is not a given, and it means one less box and one less set of interconnects in the chain.

Digital Inputs (Optical + Coaxial). Optical and coaxial S/PDIF inputs let you route a TV, Blu-ray, or digital source through the A-S301's analog amplification chain rather than relying on a receiver's compressed internal DAC. The signal ends up through proper analog output stages.

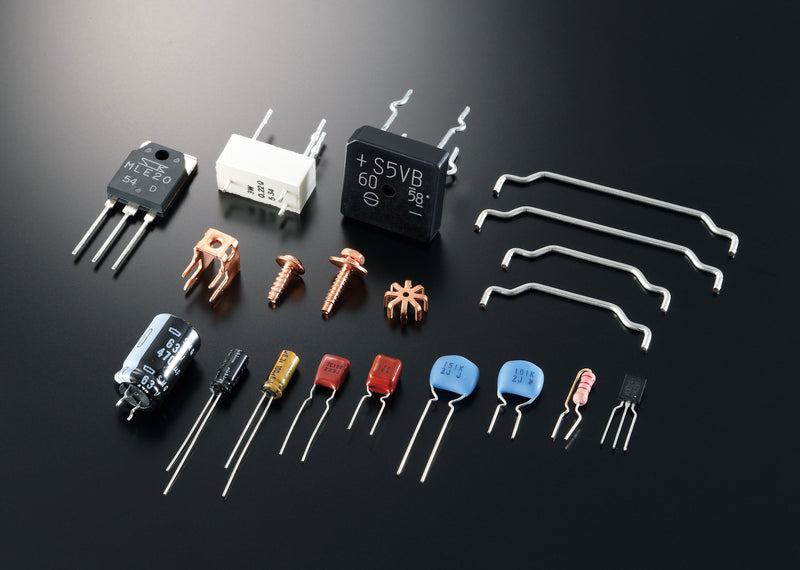

Bespoke Power Supply. A custom-wound transformer, 6,800µF block capacitors, and extruded aluminum heat sinks are the hardware that separates an amplifier from a commodity product. They give the A-S301 real headroom — the dynamic power spec climbs from 60W at 8 ohms to 150W at 2 ohms, which is what allows the amp to control difficult speaker loads cleanly.

ART Base and Aluminum Front Panel. The ART (Anti-Resonance and Tough) chassis construction reduces mechanical resonance in the cabinet itself, and the aluminum front panel gives the A-S301 a physical presence that matches its sonic character.

Specifications

• Channels: 2 (stereo)
• Rated Output Power: 60 W + 60 W (20 Hz–20 kHz, 8 ohms, 0.019% THD)
• Dynamic Power: 100 W (8 ohms) / 120 W (6 ohms) / 140 W (4 ohms) / 150 W (2 ohms)
• Total Harmonic Distortion: 0.019% (50 W, 8 ohms)
• Frequency Response: 10 Hz–100 kHz, +/−1.0 dB
• Signal-to-Noise Ratio: 99 dB (input shorted, 200 mV)
• Damping Factor: 210

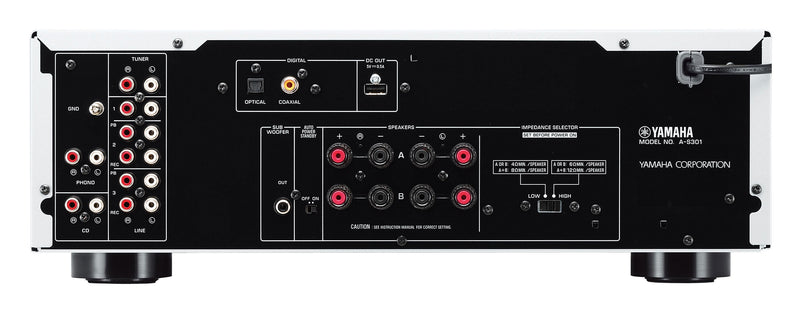

• Audio Inputs: 8
• Audio Outputs: 2
• Digital Inputs: Optical (TOSLINK) x1, Coaxial (RCA) x1
• Phono Input: MM (moving magnet)
• Subwoofer Output: Yes
• Speaker Terminals: Dual speaker system (A/B)
• Bluetooth: Optional (via YBA-11 adapter, aptX)
• Pure Direct Mode: Yes
• Loudness Control: Continuously variable
• Auto Power Standby: Yes (0.5 W standby consumption)
• Power Supply: Custom-made transformer, 6,800µF block capacitors, extruded aluminum heat sinks
• Front Panel: Aluminum
• Dimensions (W × H × D): 17-1/8" × 6" × 15-1/4"
• Weight: 19.8 lb
• Finishes Available: Silver, Black
