Yamaha M-5000 Stereo Power Amplifier

Yamaha has been building instruments for concert halls since 1887 — the same ears that tune Steinways and design acoustic spaces also shaped the M-5000. This is Yamaha's statement stereo power amplifier, the monolithic anchor of their 5000 Series flagship system, and it exists to do one thing: deliver every watt with the precision and authority that 130-plus years of acoustic mastery demands. At 100 watts per channel into 8 ohms (doubling to 200 into 4), with a damping factor above 300 and a signal-to-noise ratio of 110 dB, the numbers are exceptional — but the engineering philosophy behind them is what separates the M-5000 from amplifiers that merely look the part.

The M-5000 is built around Yamaha's Floating and Balanced Power Amplifier topology: a push-pull MOSFET output stage that is mirror-symmetrical from input to output, balanced from front to back, and physically laid out so the left and right channels are mechanically and electrically isolated from each other. The signal path is kept radically short — drawn-out copper wiring replaces conventional PCB traces where it matters most — and the entire structure sits on a rigid frame chassis that Yamaha calls Mechanical Ground, designed to drain vibration away from the circuit rather than let it resonate through it. Beneath the circuit sits a massive toroidal transformer on a 3mm pure-brass base, paired with oversized filter capacitors, all of it screened to prevent magnetic fields from coupling into the audio path. None of these choices are audiophile theater; each one targets a specific distortion mechanism and eliminates it at the source.

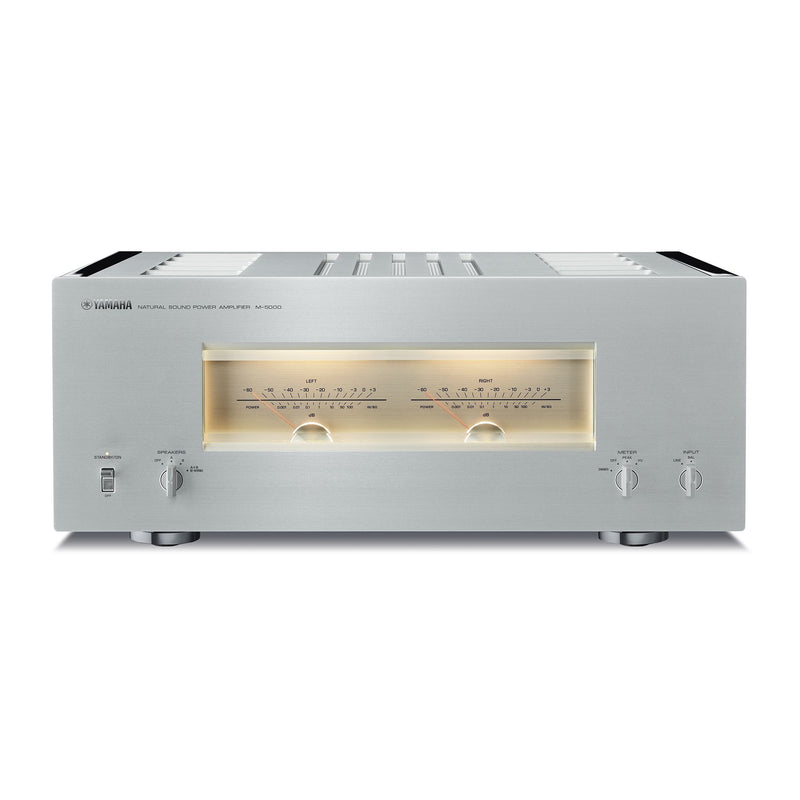

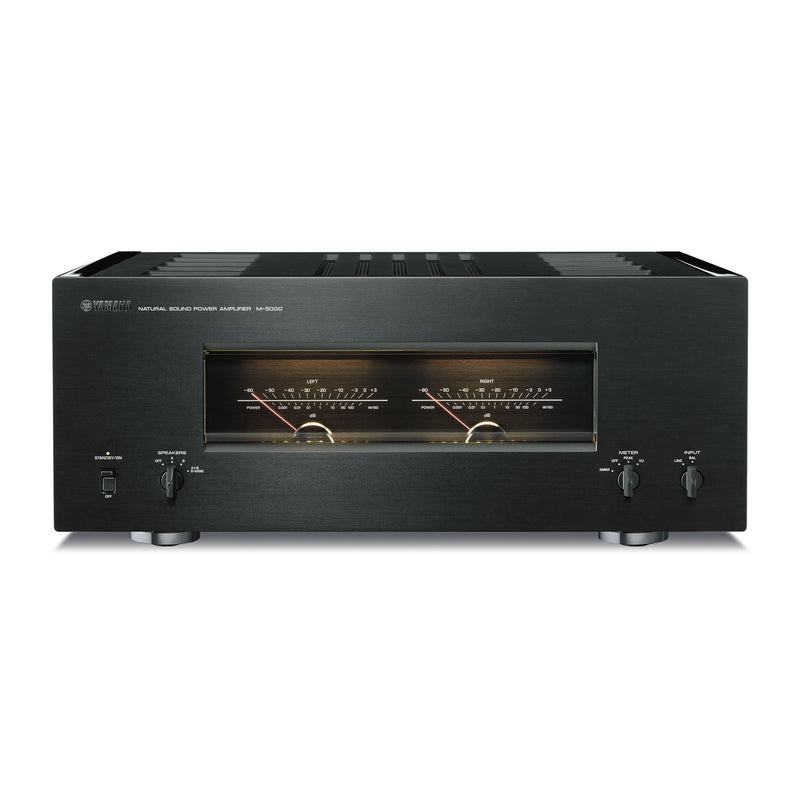

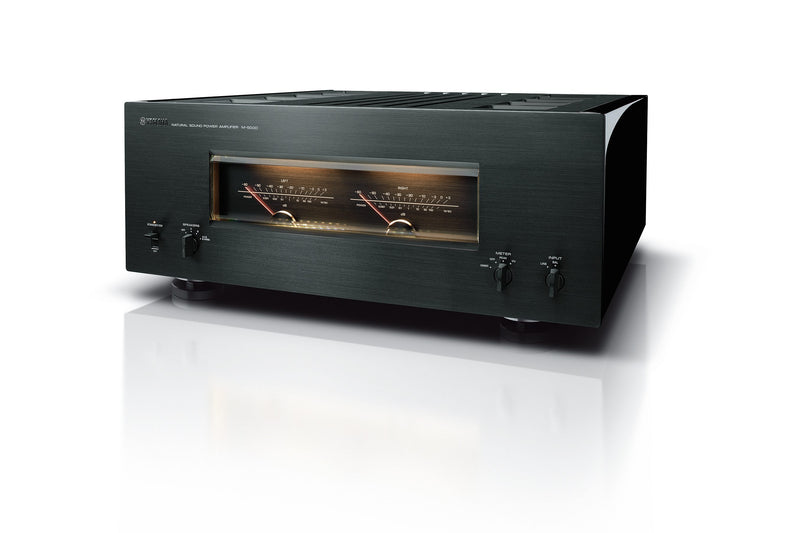

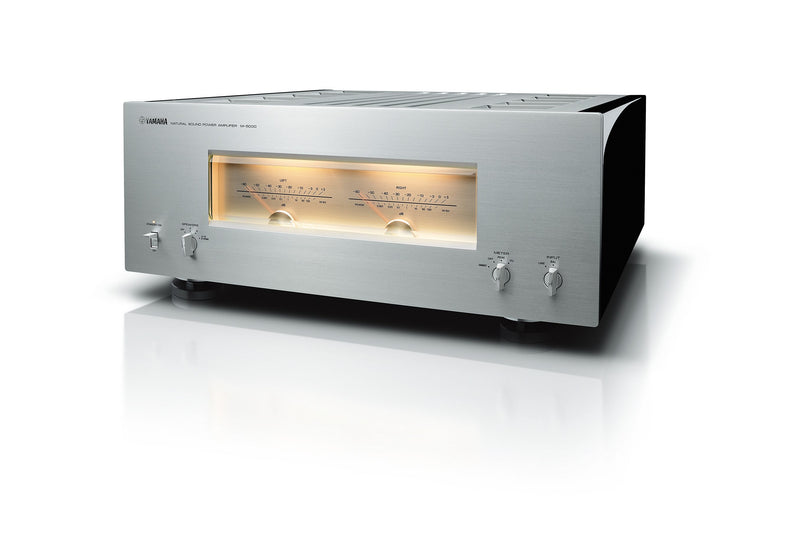

The M-5000 is designed to operate as a matched system with the C-5000 preamplifier and GT-5000 turntable, with balanced XLR connectivity carried end-to-end across the chain. Used standalone, it accepts both balanced and single-ended inputs with input sensitivity optimized for each. The custom 7mm Asahi glass VU meters are calibrated to 2.5th class precision — not decorative, but a real-time readout of what the amplifier is actually doing. Custom brass feet ship with both spike and scratch-guard options. The M-5000 is available in Silver/Piano Black and Black/Piano Black, both matching the 5000 Series aesthetic.

Floating and Balanced MOSFET Output Stage. The push-pull MOSFET topology is perfectly symmetrical from input to output, eliminating common-mode noise and keeping even-order distortion vanishingly low — the measured THD at rated power is 0.07%, dropping to 0.035% under the IEC standard two-channel test.

Mechanical Ground Chassis. The rigid frame structure is engineered to route vibration out of the circuit rather than into it. Resonance that would otherwise modulate the signal path is absorbed and drained at the chassis level — the same principle Yamaha applies to concert hall floor design.

Shortened, Low-Impedance Signal Paths. Where conventional amplifiers route signal through PCB traces, Yamaha uses hand-drawn copper wiring for the critical signal passages. The result is lower contact resistance, less inductance, and a direct route from input to speaker terminal that doesn't accumulate noise.

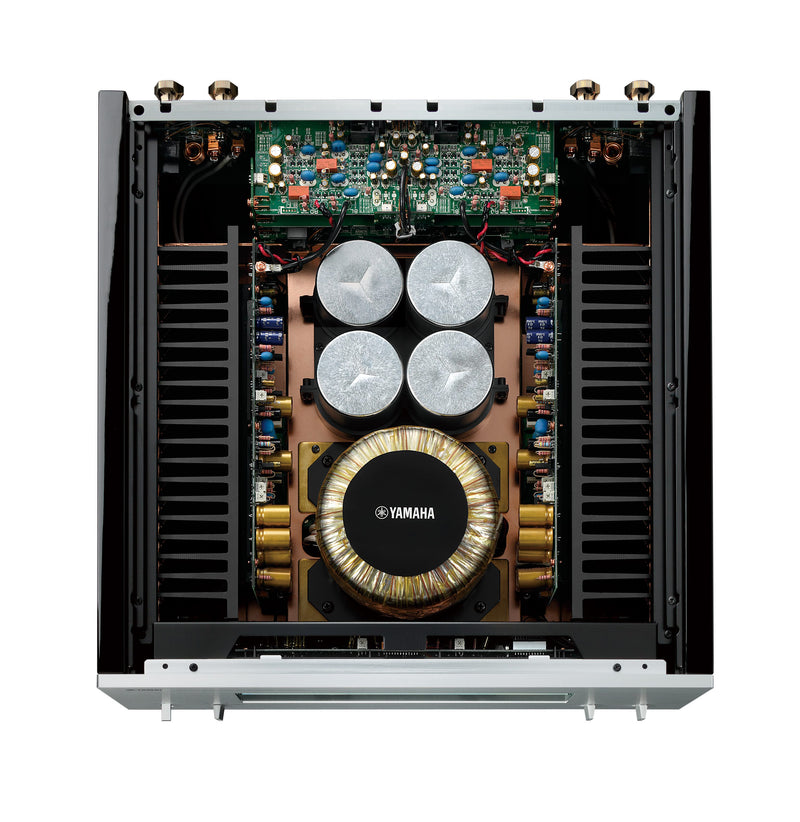

Massive Toroidal Transformer on Pure-Brass Base. The 3mm brass plinth under the toroidal transformer isn't structural theater — brass damps the resonant frequency of the transformer itself, preventing mechanical vibration from coupling into the audio circuit. Oversized speaker terminals use pure brass construction with screw-type clamping for the lowest possible contact resistance.

110 dB Signal-to-Noise Ratio, Damping Factor 300+. A damping factor above 300 at 1 kHz means the M-5000 exercises tight control over woofer cone movement — bass stays articulate and defined rather than loose. The 110 dB SNR leaves the noise floor so far below the music that it simply isn't a variable.

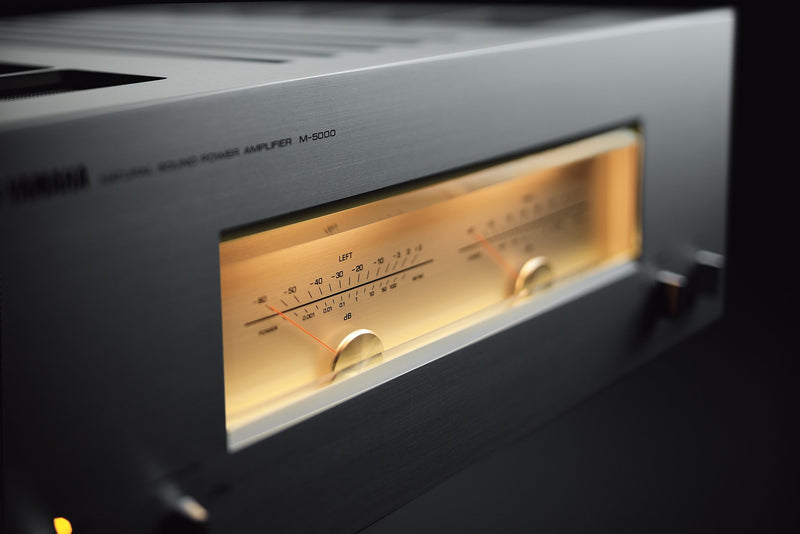

Precision VU Meters, 7mm Asahi Glass. The illuminated meters are calibrated to 2.5th class accuracy using precision-ground Asahi glass — the same optical glass used in high-quality camera lenses. They read true power output in real time, not a cosmetic approximation.

Specifications

• Rated Output Power (8 ohm, 20 Hz–20 kHz, 0.07% THD, 2-channel): 100 W + 100 W
• Rated Output Power (4 ohm, 20 Hz–20 kHz, 0.07% THD, 2-channel): 200 W + 200 W
• Rated Output Power (8 ohm, monaural): 400 W
• IEC Output Power (8 ohm, 1 kHz, 0.02% THD): 125 W + 125 W
• Maximum Effective Output Power / JEITA (8 ohm): 135 W + 135 W
• Maximum Effective Output Power / JEITA (4 ohm): 270 W + 270 W
• Dynamic Power Per Channel / IHF (8 ohm): 125 W + 125 W
• Dynamic Power Per Channel / IHF (6 ohm): 170 W + 170 W
• Dynamic Power Per Channel / IHF (4 ohm): 250 W + 250 W
• Dynamic Power Per Channel / IHF (2 ohm): 500 W + 500 W
• Dynamic Headroom: 0.97 dB (8 ohm)
• Power Bandwidth: 10 Hz–50 kHz (8 ohm, 0.1% THD, 45 W)
• Total Harmonic Distortion + Noise (2-channel): 0.035%
• Total Harmonic Distortion + Noise (monaural): 0.05%
• Frequency Response: +0 / −3 dB, 5 Hz–100 kHz; +0 / −0.3 dB, 20 Hz–20 kHz
• Signal-to-Noise Ratio (IHF-A): 110 dB
• Residual Noise (IHF-A, balanced): 40 µVrms
• Residual Noise (IHF-A, unbalanced): 50 µVrms
• Channel Separation: 90 dB or higher (1 kHz); 70 dB or higher (10 kHz)
• Damping Factor: 300 or higher (8 ohm, 1 kHz)
• Input Sensitivity / Impedance (balanced): 2.0 Vrms / 47 kΩ
• Input Sensitivity / Impedance (unbalanced): 1.0 Vrms / 47 kΩ
• Maximum Input Signal Voltage (balanced, 1 kHz, 0.5% THD): 2.20 Vrms
• Maximum Input Signal Voltage (unbalanced, 1 kHz, 0.5% THD): 1.10 Vrms

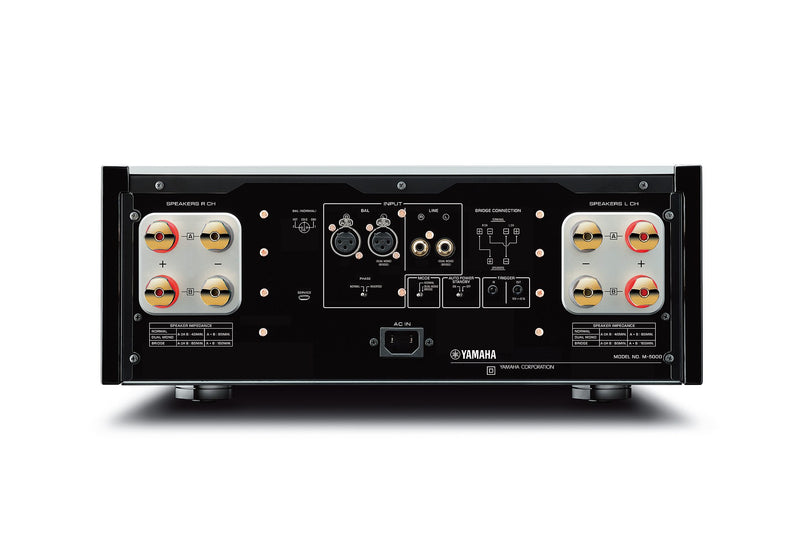

• Input Terminals: RCA ×1, Balanced XLR ×1, Trigger In ×1
• Output Terminals: Trigger Out ×1, Speaker terminals (screw-type, pure brass) ×1 pair per channel
• Meter Class: 2.5th class
• Power Consumption: 400 W
• Maximum Power Consumption: 800 W
• Standby Power Consumption: 0.2 W (standby mode); 0.1 W (off mode)
• Auto Power Standby: Yes
• Dimensions (W × H × D): 17-1/8" × 7-1/8" × 18-1/4" (435 × 181 × 464 mm)
• Weight: 59.3 lbs. (26.9 kg)
• Finishes Available: Silver/Piano Black, Black/Piano Black

]]>
