Fezz Audio Lybra 300B Integrated Amplifier
by Fezz Audio
LYBRA 300B
300B Parallel Single Ended Class A, 2 x 15W

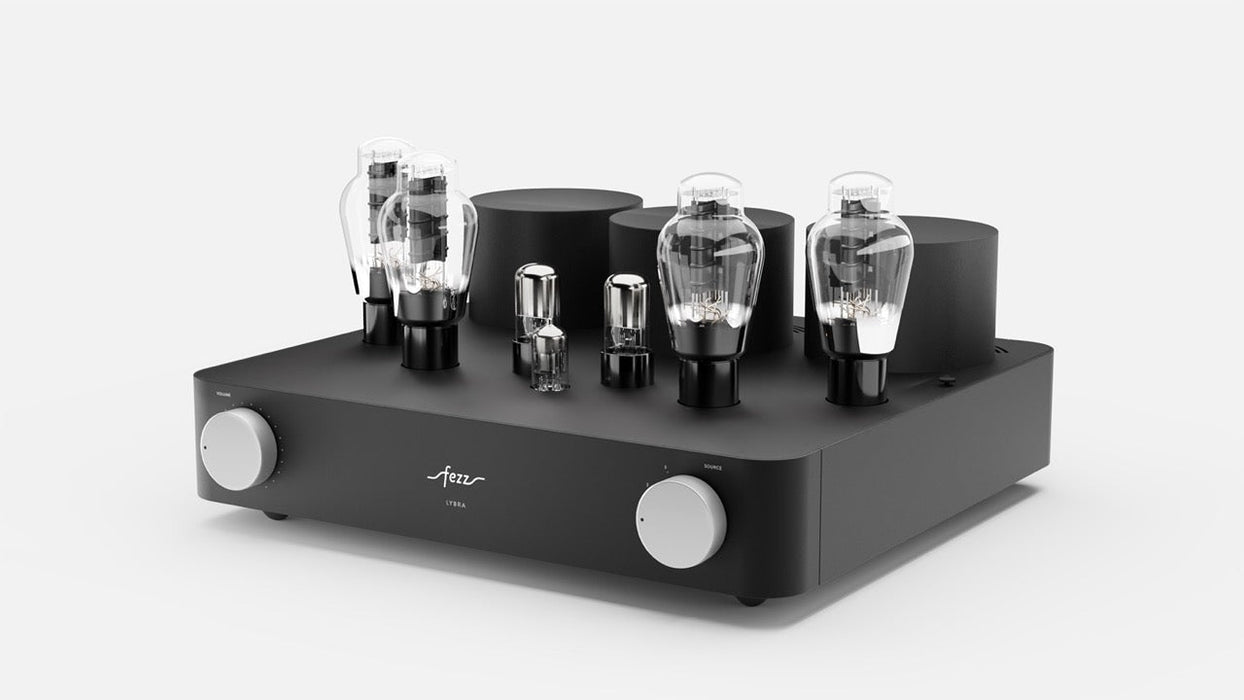

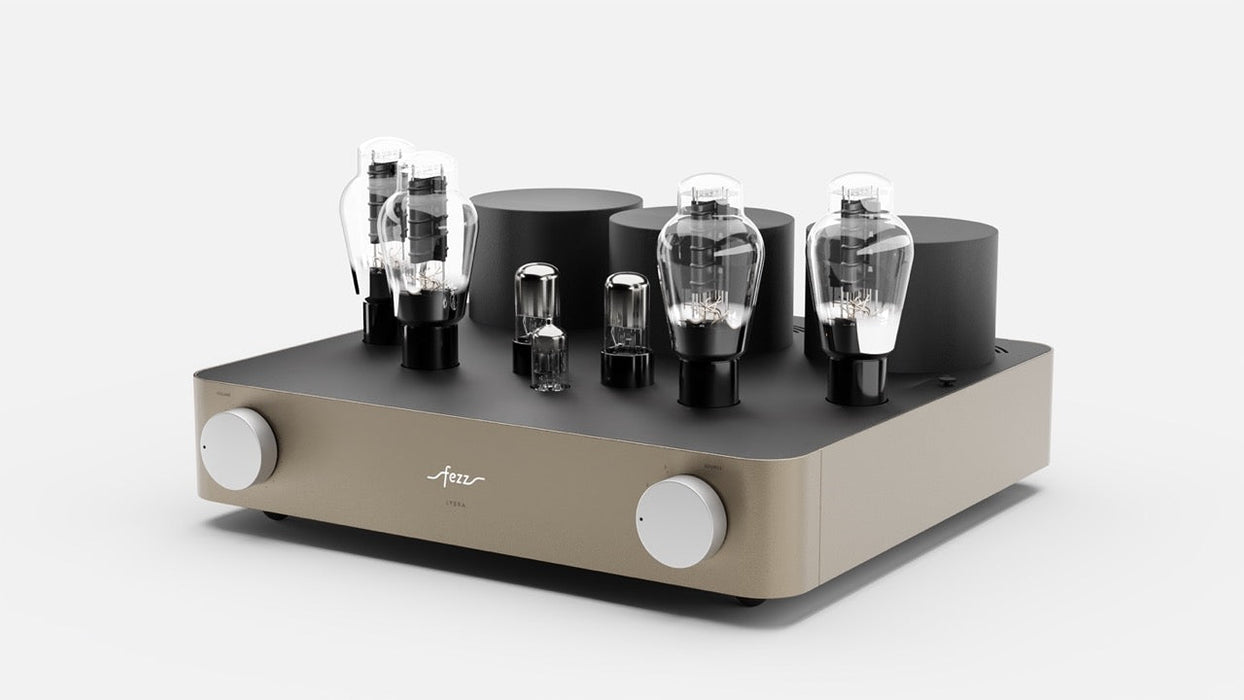

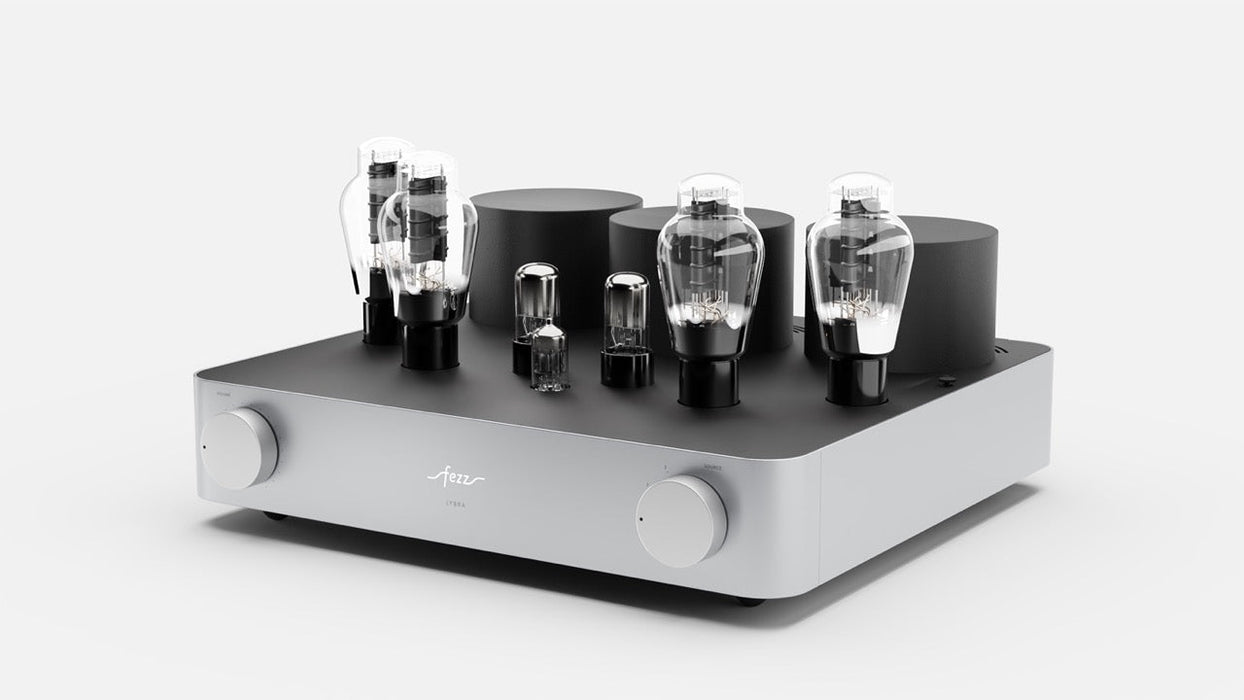

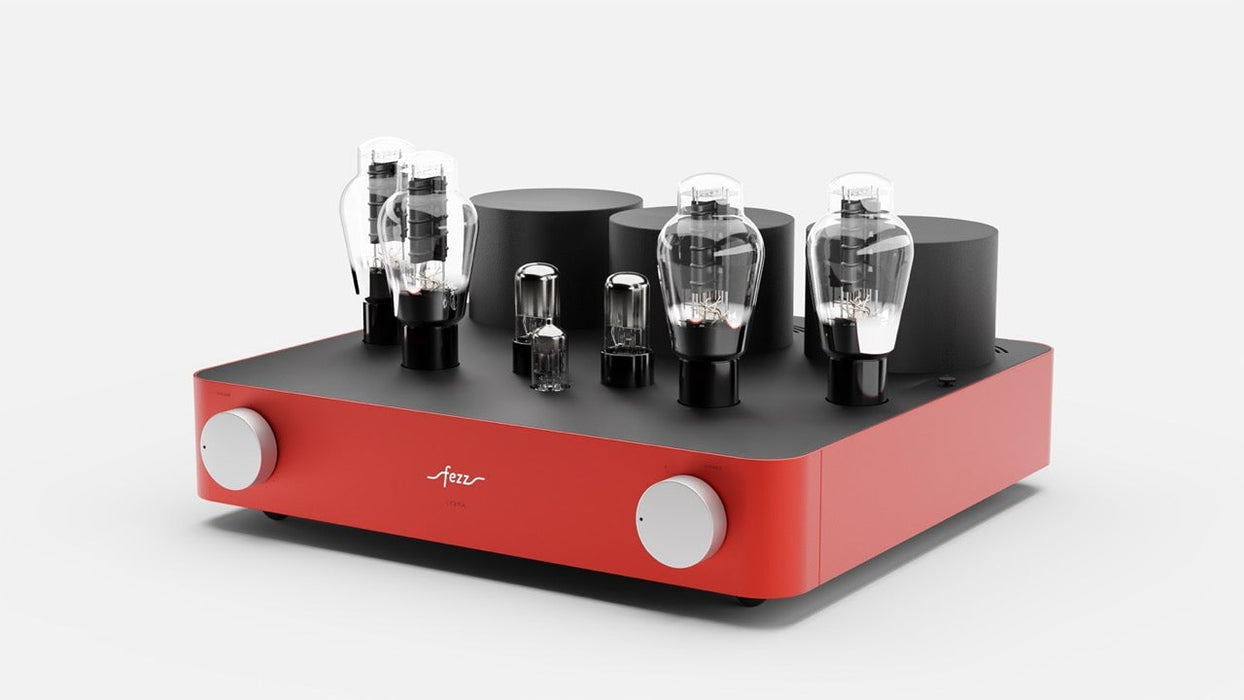

Lybra is a unique parallel single ended (PSE) amplifier with 300B output tubes. The PSE configuration provides the classic 300B sound with higher output, making Lybra extremely versatile, and able to pair well with a broad selection of loudspeakers. The PSE configura- tion is noteworthy by itself, and Lybra’s utilization of toroidal power and output transformers make it unique. The 6SN7 and 12AX7 input tubes add to the character of Lybra, creating dynamic, impactful sound.
Model:
Lybra
Max. output power:
2x15W
Circuit type:
PSE parallel single ended
Output impedance:
4Ω/8Ω
Inputs:
3xRCA
Harmonic distortions THD:
<0,25%
Frequency response:
12Hz-60kHz (-3dB)
Power consumption:
180W
AC fuse:
3,15A T
Net weight:
23,5 kg
Dimensions:
420x410x175mm
Tubes:
4x 300B, 2x 6sn7, 1x 12AX7, autobias.
