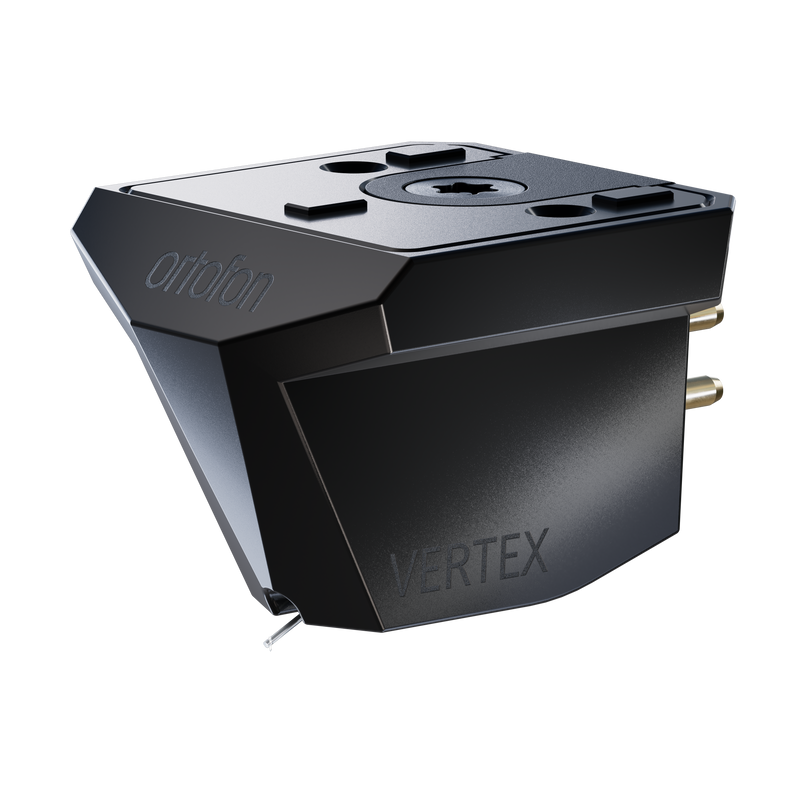

The MC Vertex is the cartridge Ortofon built when the brief was to start over. A new diamond profile, named for the cartridge itself. A solid-diamond cantilever — one piece, laser-polished, with the stylus mounted into a micro-bore drilled through the same crystal. A titanium body grown layer by layer in Ortofon's own selective-laser-melting machines, finished in diamond-like carbon. A generator system rewound around the new structure rather than carried over from any prior model. This is a Reference statement of what one of the oldest names in the category can do when nothing has to be preserved from the last design.

The Vertex diamond is the new geometry at the center of the cartridge. It is a line-contact profile engineered by Ortofon and defined against the cantilever it would be mounted to — a long, narrow contact patch that reads the groove walls at the lowest practical pressure for the highest practical resolution. The diamond is not glued onto a metal shank that is then glued onto the cantilever, which is the construction the rest of the cartridge world has accepted as a compromise. The Vertex diamond is mounted directly into the cantilever, in a micro-bore formed in the crystal itself by a laser-cutting process with tolerances measured in single-digit microns.

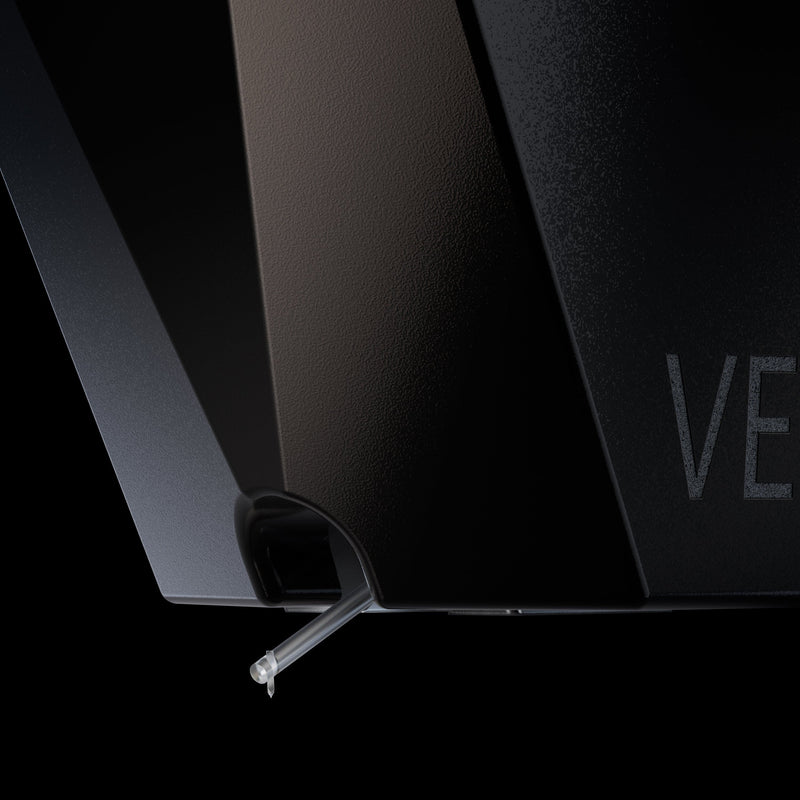

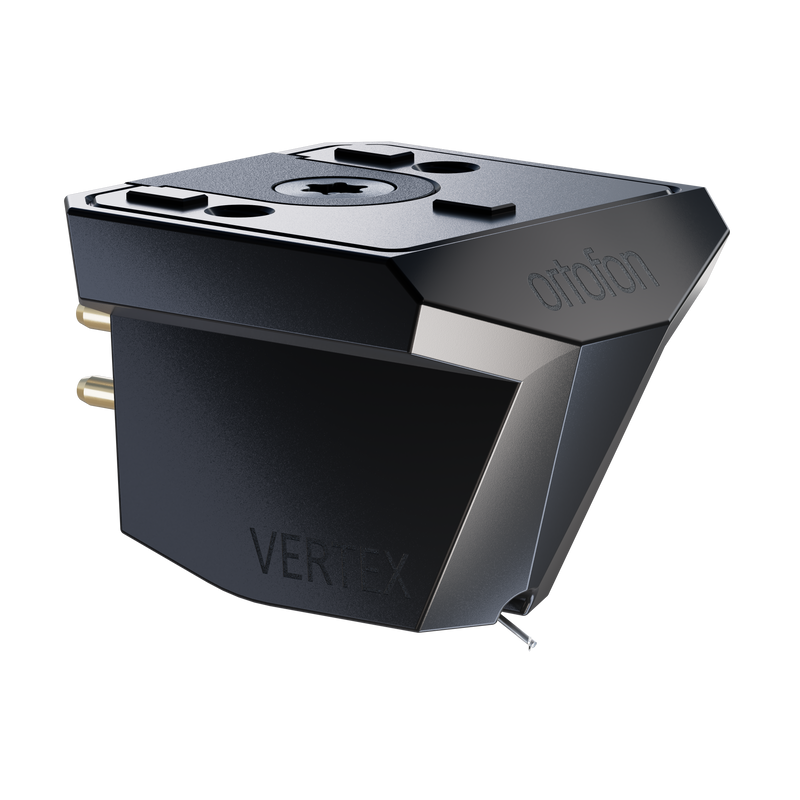

The cantilever is the part of the cartridge that has the most to do with what the listener hears, and it is the part where the Vertex departs furthest from convention. It is a single piece of solid diamond, laser-polished, with the stylus formed at the working end. Diamond is the stiffest material the engineering world has access to and the lightest one that holds the stiffness at the dimensions a cantilever requires; the combination transmits the small mechanical events at the stylus tip to the generator without the storage and release a metal or boron cantilever cannot completely avoid. The moving mass that results is the lowest the technology allows.

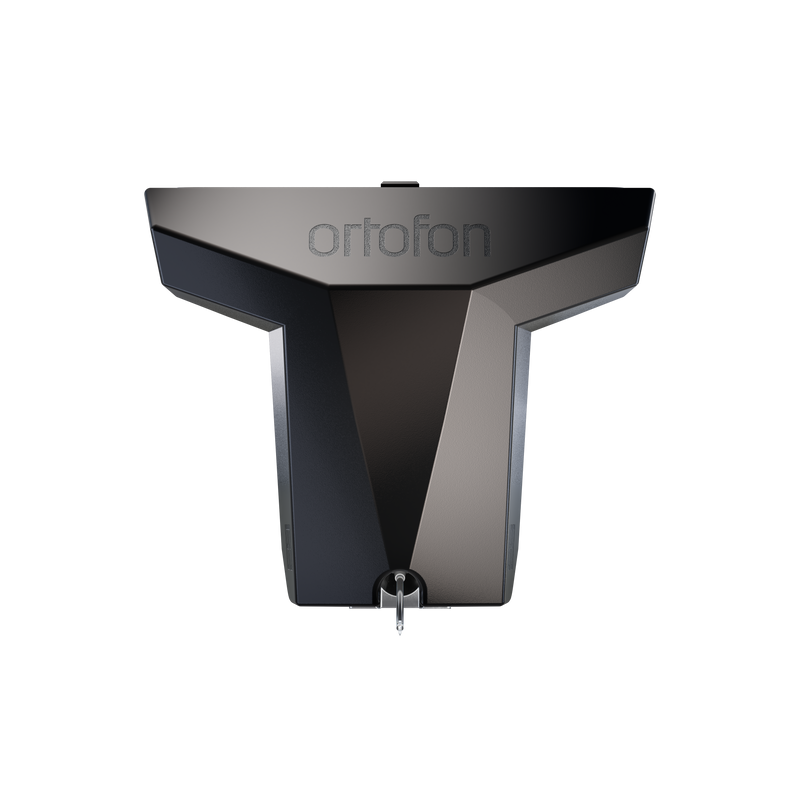

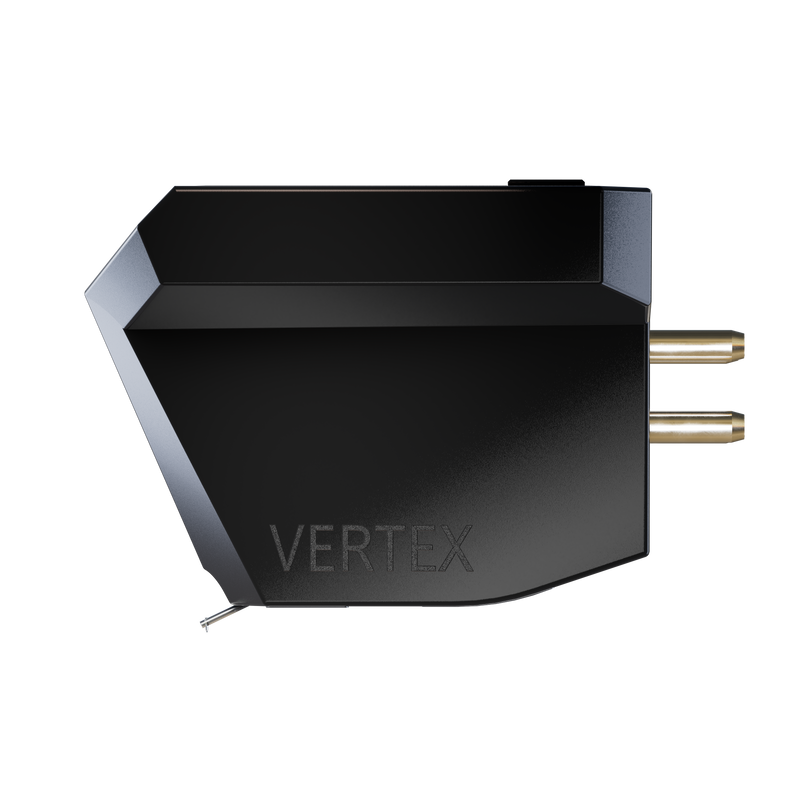

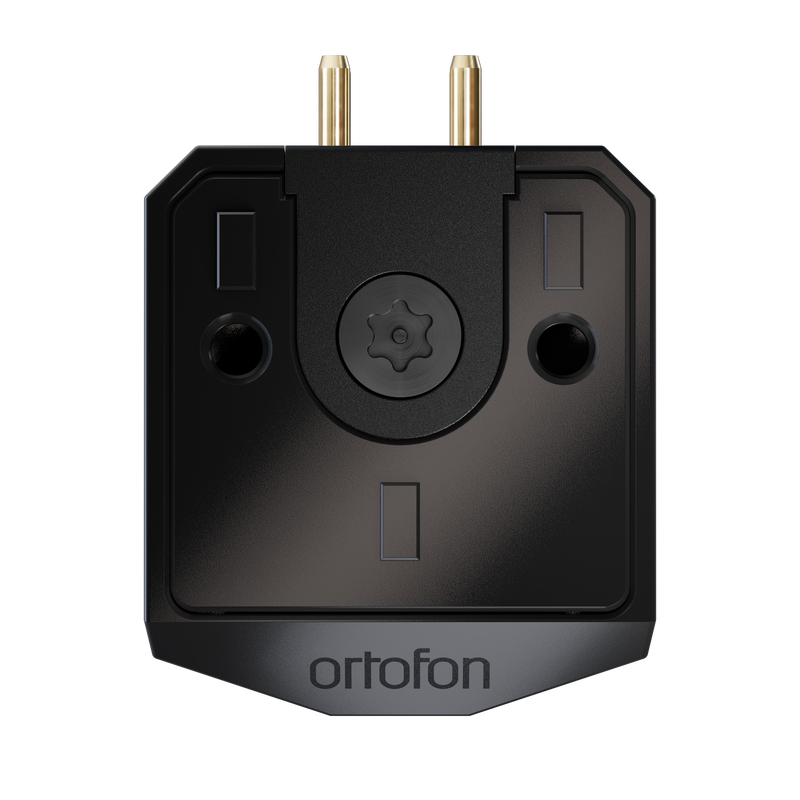

The body is grown rather than machined. Selective laser melting — a process Ortofon has refined for cartridge construction over the better part of a decade — builds the titanium housing and the internal core structure layer by layer from titanium powder, producing geometries that cannot be reached by milling. The completed body is finished in diamond-like carbon coating for surface durability and acoustic damping. The result is a housing as quiet, as rigid, and as precisely formed as the moving structure it surrounds.

The generator behind the cantilever is rewound for the Vertex. A non-magnetic armature. Coils wound from high-purity silver to a precision the older Ortofon coils were not asked to meet. A magnet configuration optimized against the new armature rather than carried forward from a prior design. The cartridge produces 0.3 mV into greater than 100 ohms, a window that includes the reference moving-coil phono stages — the Thales Magnifier among them, and any properly built MC input at this tier.

What the room receives from the Vertex is the quality the analog listener associates with the very best front ends and assumes is the result of a much larger system. Transients arrive without ringing. The recovery of small dynamic information at the lowest levels — the air around a voice, the decay of a hall, the brush before the cymbal — is the kind of recovery the rest of the system is generally not asked to reveal. The noise floor falls into a different room.

The MC Vertex tracks at 2.5 grams; compliance is 9 µm/mN, suited to a medium- to high-mass tonearm; the Thales Statement and Simplicity II, the Reed 5T and 5A, and any Reference-class pivoted or tangential arm in the Alma showroom are natural partners. The Vertex is produced in low volumes and supplied to authorized dealers as a reference-level installation. Setup, alignment, and pairing with the rest of the analog chain are part of the Alma delivery. Available at both Alma showrooms by appointment for private audition.
