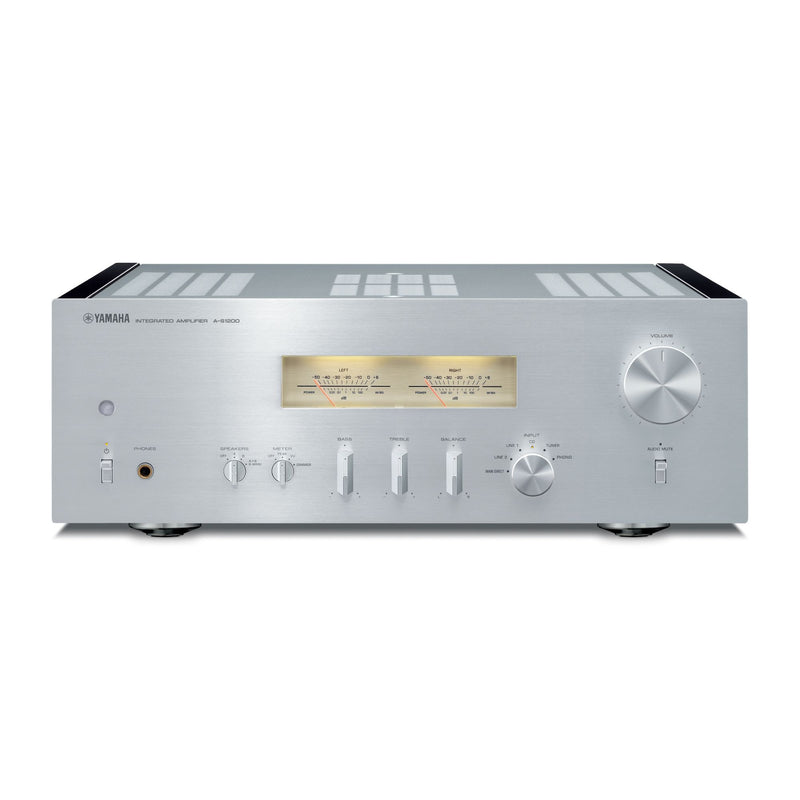

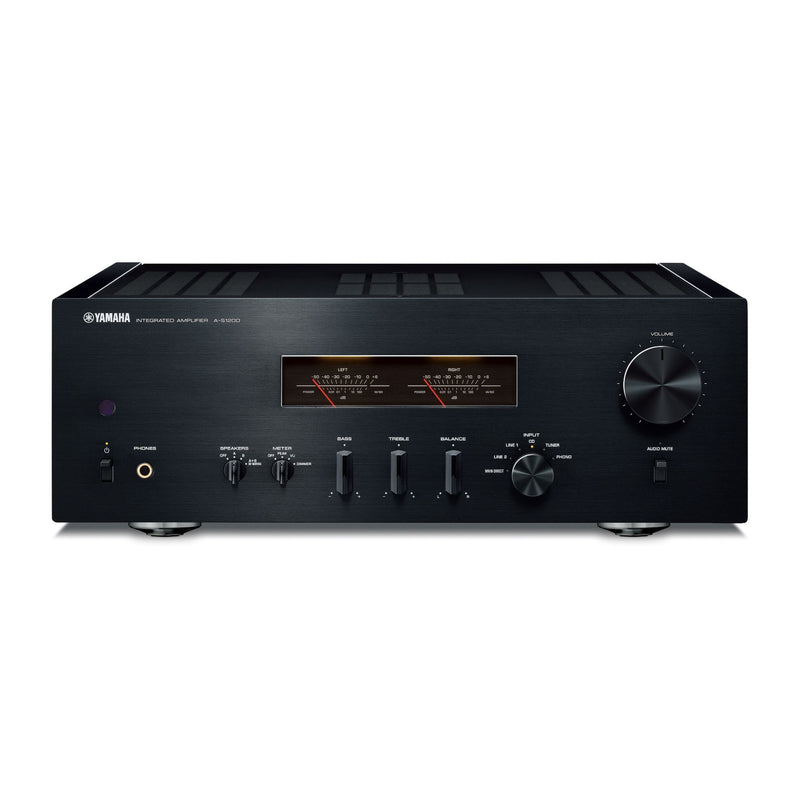

Yamaha A-S1200 Integrated Amplifier

Yamaha has been shaping what instruments and concert halls sound like since 1887 — and that institutional knowledge runs through every circuit in the A-S1200. This is a purely analog integrated amplifier built around a 625VA toroidal transformer, a floating balanced power amplifier stage, and a mechanical ground architecture borrowed directly from the higher A-S2200 and A-S3200. The result is 90 watts per channel into 8 ohms with the headroom and tonal authority you'd expect from an amplifier costing considerably more.

The A-S1200 is unapologetically analog in an era when streaming boxes get added to everything. There are no digital inputs, no DAC, no Bluetooth — just four RCA line inputs, a switchable MM/MC phono stage for both moving-magnet and low-output moving-coil cartridges, a MAIN IN for pairing with a separate preamp, a headphone output, and a PRE OUT for biamplification or an external power amplifier. That deliberate focus means the engineering budget went entirely into the signal path, not into feature-list padding. The level meters — backlit, analog, the kind that make you watch music happen — are not cosmetic nostalgia. They are telling you something about the music's dynamic structure that a static LED bar cannot.

At Alma we carry the A-S1200 because it occupies a specific and valuable position in the amplifier landscape: it is the point at which Yamaha's Japanese manufacturing precision and 135-year acoustic heritage are accessible without a flagship price. Pair it with an analog source and a speaker that wants current — the 150-watt-per-channel into 4-ohm headroom and a damping factor north of 250 are meaningful numbers — and this amplifier will outperform its price tag in the way only a company with this depth of engineering history can deliver.

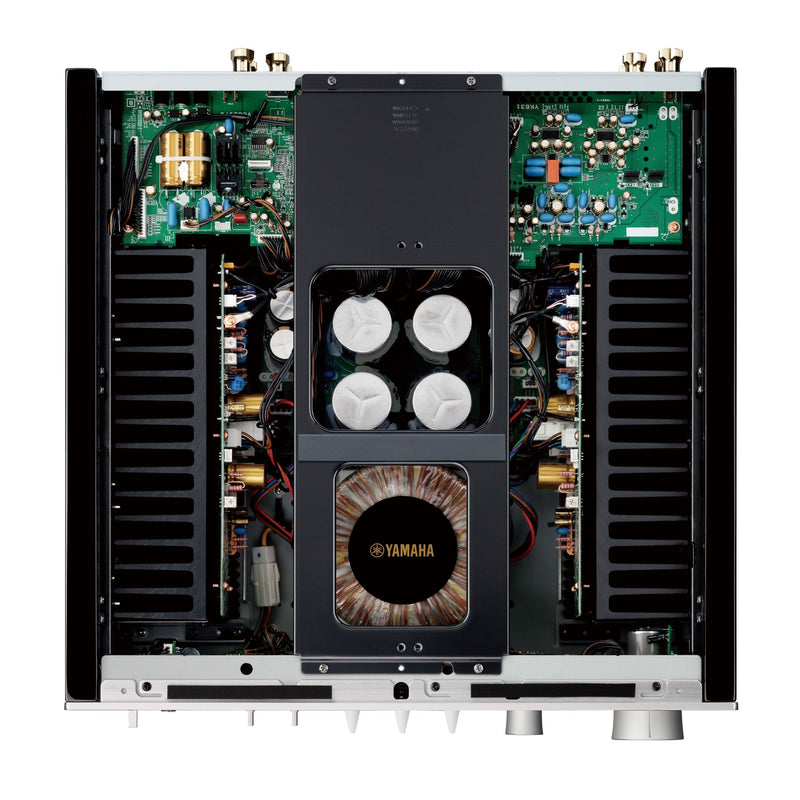

Toroidal Transformer, 625VA. Toroidal transformers are reserved for flagship amplifiers in most brands; Yamaha puts one here. The toroid's low stray field and high energy storage translate directly into transient authority — the A-S1200 does not compress when the music gets loud.

Floating Balanced Power Amplifier. The output stage runs as a balanced differential circuit from input to speaker terminal, cancelling common-mode noise at the amplification stage itself rather than filtering it downstream. This is part of why the line-source S/N ratio is 110 dB.

Mechanical Ground Concept. The main chassis, heat sinks, transformer, and filter capacitors are all bolted directly to a rigid chassis — a discipline inherited from the A-S2200 and A-S3200. Microphonic vibration that would otherwise modulate the power supply is drained to structural ground instead. The practical effect is tighter, more defined bass.

MM/MC Phono Stage, Switchable. A rear-panel slide switch selects between moving-magnet (3.5 mVrms/47kΩ) and moving-coil (150 µVrms/50Ω) sensitivity. No outboard phono stage required — and RIAA deviation is held to ±0.5 dB across the full bandwidth.

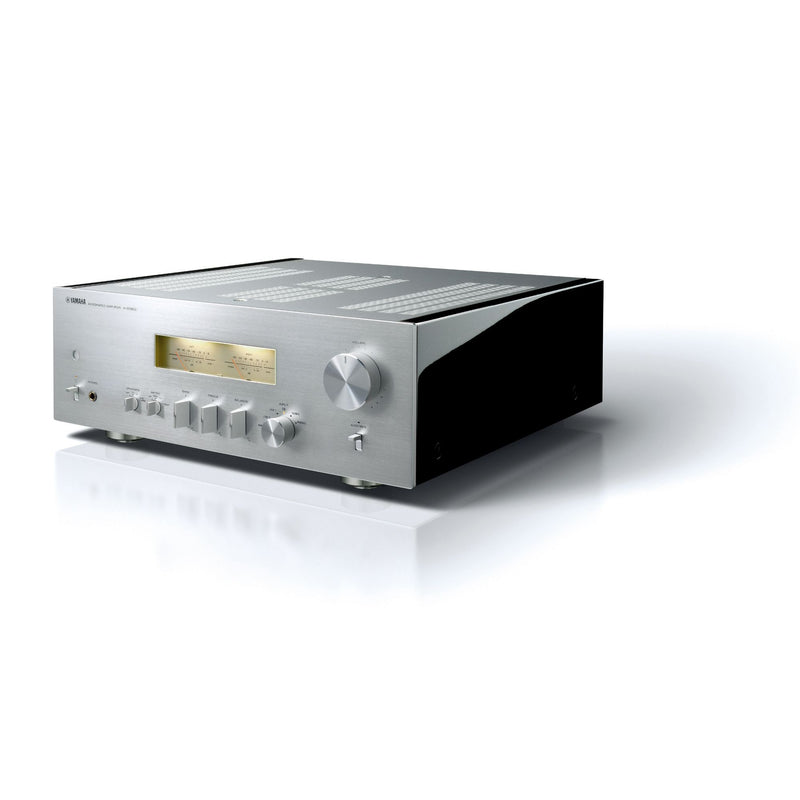

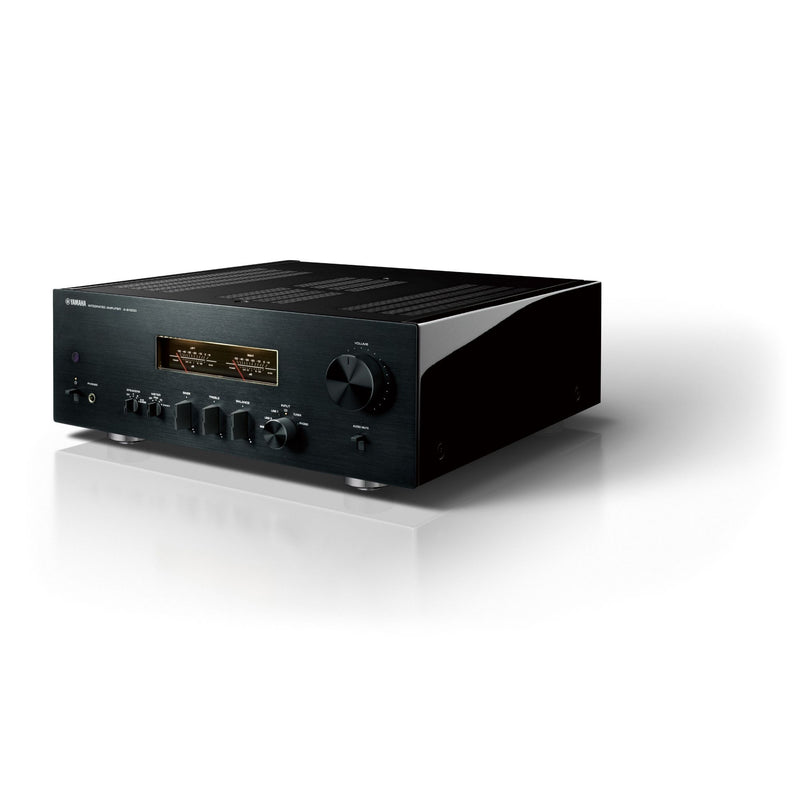

Analog Level Meters. Backlit by softly illuminated LEDs, the VU meters display real-time power output and reflect the music's dynamic pulse rather than a processed peak-hold approximation. They are also a reliable indicator of how hard you are driving your speakers.

Pure Analog Signal Path. No digital inputs, no DSP, no upsampling. Every source arrives as an analog signal and leaves as one. For listeners whose primary sources are turntable and CD transport — or who already own a separate DAC they trust — this is a feature, not a limitation.

Specifications

• Type: Integrated stereo amplifier, fully analog
• Rated Output Power: 90 W + 90 W (8 ohms, 20 Hz–20 kHz, 0.07% THD)
• Rated Output Power (4 ohms): 150 W + 150 W (20 Hz–20 kHz, 0.07% THD)
• High Dynamic Power per Channel: 105 W (8Ω) / 135 W (6Ω) / 190 W (4Ω) / 220 W (2Ω)
• Damping Factor: ≥ 250 (1 kHz, 8 ohms)
• Frequency Response: +0 / −3 dB (5 Hz–100 kHz); +0 / −0.3 dB (20 Hz–20 kHz)
• Total Harmonic Distortion (20 Hz–20 kHz): Phono MC → Line Out: 0.02% (1.2 Vrms); Phono MM → Line Out: 0.005% (1.2 Vrms); CD → Speaker Out: 0.035% (50 W / 8Ω)
• Signal-to-Noise Ratio: Phono MC: 90 dB; Phono MM: 96 dB; CD / Line: 110 dB
• RIAA Equalization Deviation: ±0.5 dB (Phono MM/MC)
• Input Sensitivity / Impedance: Phono MC: 150 µVrms / 50Ω; Phono MM: 3.5 mVrms / 47 kΩ; CD / Line: 200 mVrms / 47 kΩ; MAIN IN: 1 Vrms / 47 kΩ

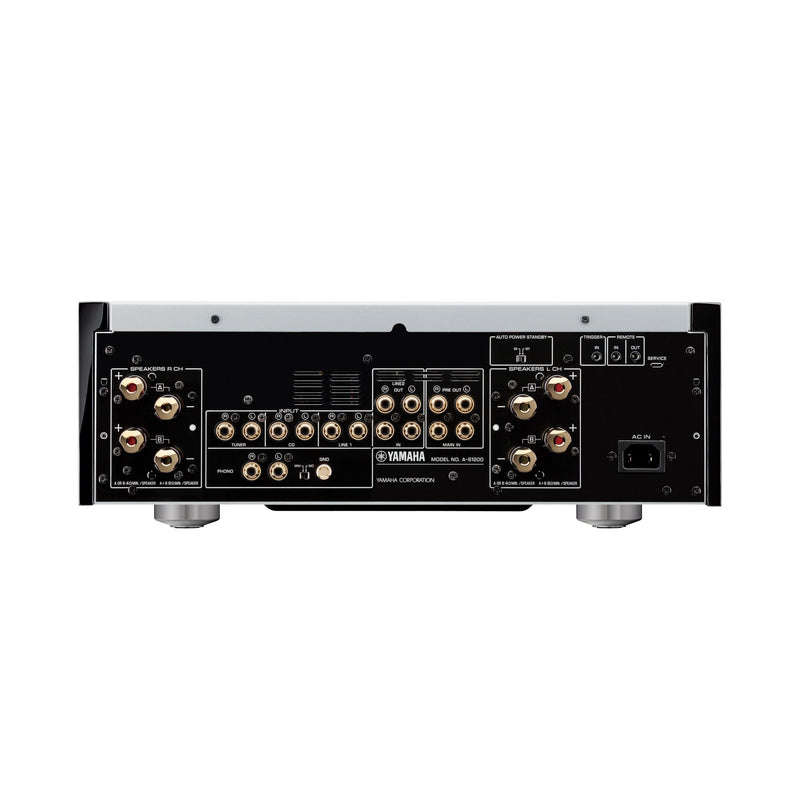

• Analog Inputs: 4 × RCA line (CD, TUNER, LINE 1, LINE 2), 1 × Phono (MM/MC switchable), 1 × MAIN IN (RCA)
• Outputs: Speaker binding posts (A/B), PRE OUT (RCA), REC OUT (RCA), 6.35 mm headphone jack
• Digital Inputs: None
• Balanced (XLR) Inputs: None (available on A-S2200 and A-S3200)
• Phono Stage: MM and MC (rear-panel slide switch)
• Power Transformer: 625 VA toroidal
• Dimensions (W × H × D): 17-1/8″ × 6-1/8″ × 18-1/4″ (435 × 157 × 463 mm)
• Weight: 48.5 lbs (22.0 kg)

]]>
